ICOM IC-7000-HDMI Separation kit
Before you begin, please read this manual carefully!
1. OVERVIEW
This separation kit works with following transceivers:
-
ICOM IC-7000
Features:
-
HDMI and micro HDMI cable connectors;
-
Additional Power button on a base unit adapter.

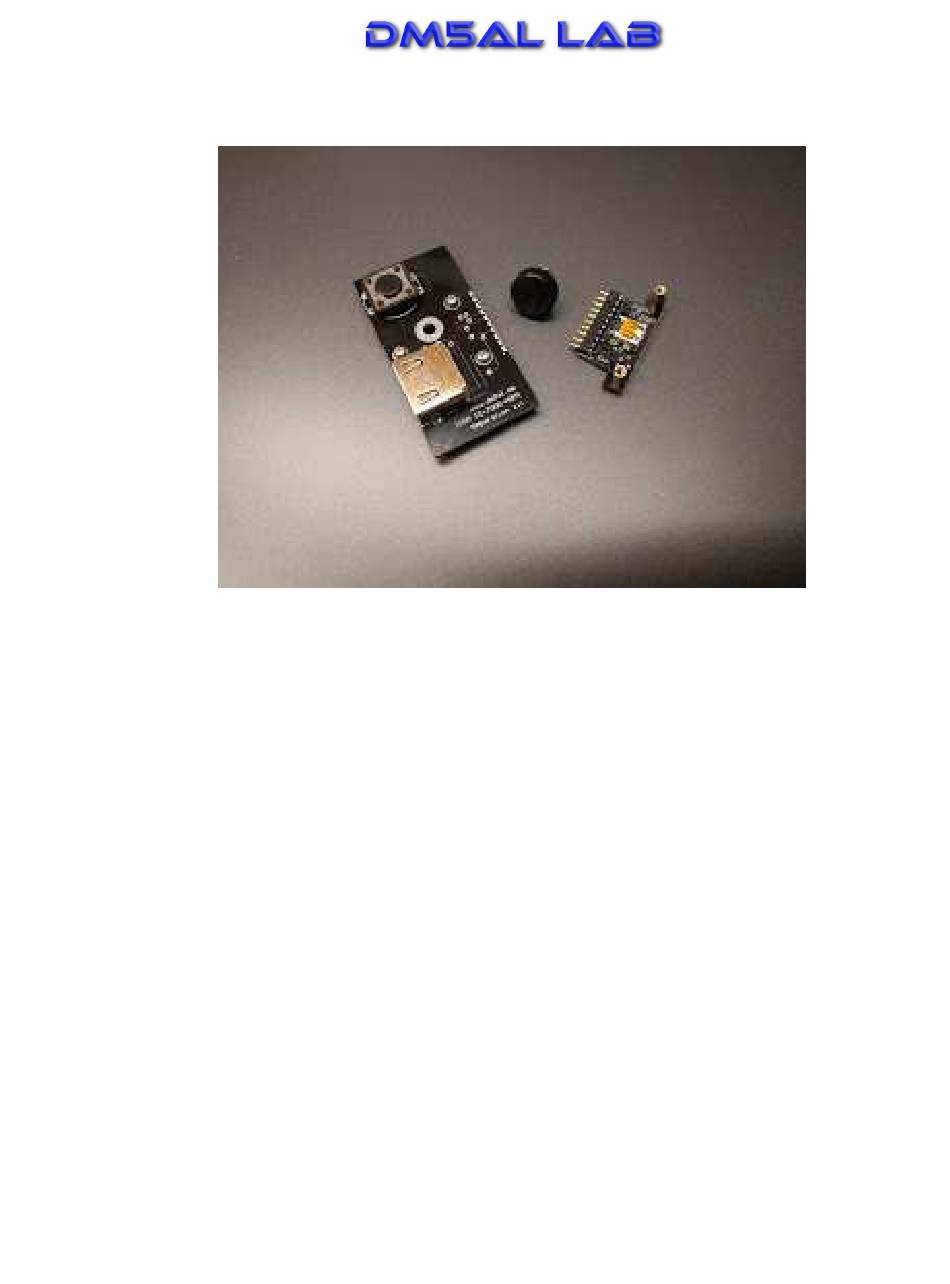

The separation kit uses a HDMI to micro HDMI cable for connection between display and base
units. Quality of this cable affects overall transmit quality: with some cheap HDMI cables weak
digital noise may exist during transmission.
Note: some HDMI to micro HDMI cables don't not follow specification and don't have
some wires inside a cable. Please send support request before buying a cable!
2. INSTALLATION
Attention: remove power before you install the separation kit!
Picture below show how to install the separation kit correctly:
Advertisement
Related Manuals for Icom IC-7000-HDMI
Summary of Contents for Icom IC-7000-HDMI
- Page 1 ICOM IC-7000-HDMI Separation kit Before you begin, please read this manual carefully! 1. OVERVIEW This separation kit works with following transceivers: ICOM IC-7000 Features: HDMI and micro HDMI cable connectors; Additional Power button on a base unit adapter. The separation kit uses a HDMI to micro HDMI cable for connection between display and base units.
- Page 2 1. Setup the base unit adapter and fix it with a thumb screw: 2. Insert a micro HDMI connector to a head unit adapter:...
- Page 3 3. Insert a head unit adapter: 4. Power on. 3. HDMI CONNECTOR PINOUT...
- Page 4 4. SUPPORT Web: www.dm5al.de email: support@dm5al.de Whatsapp: +4915256982577...
