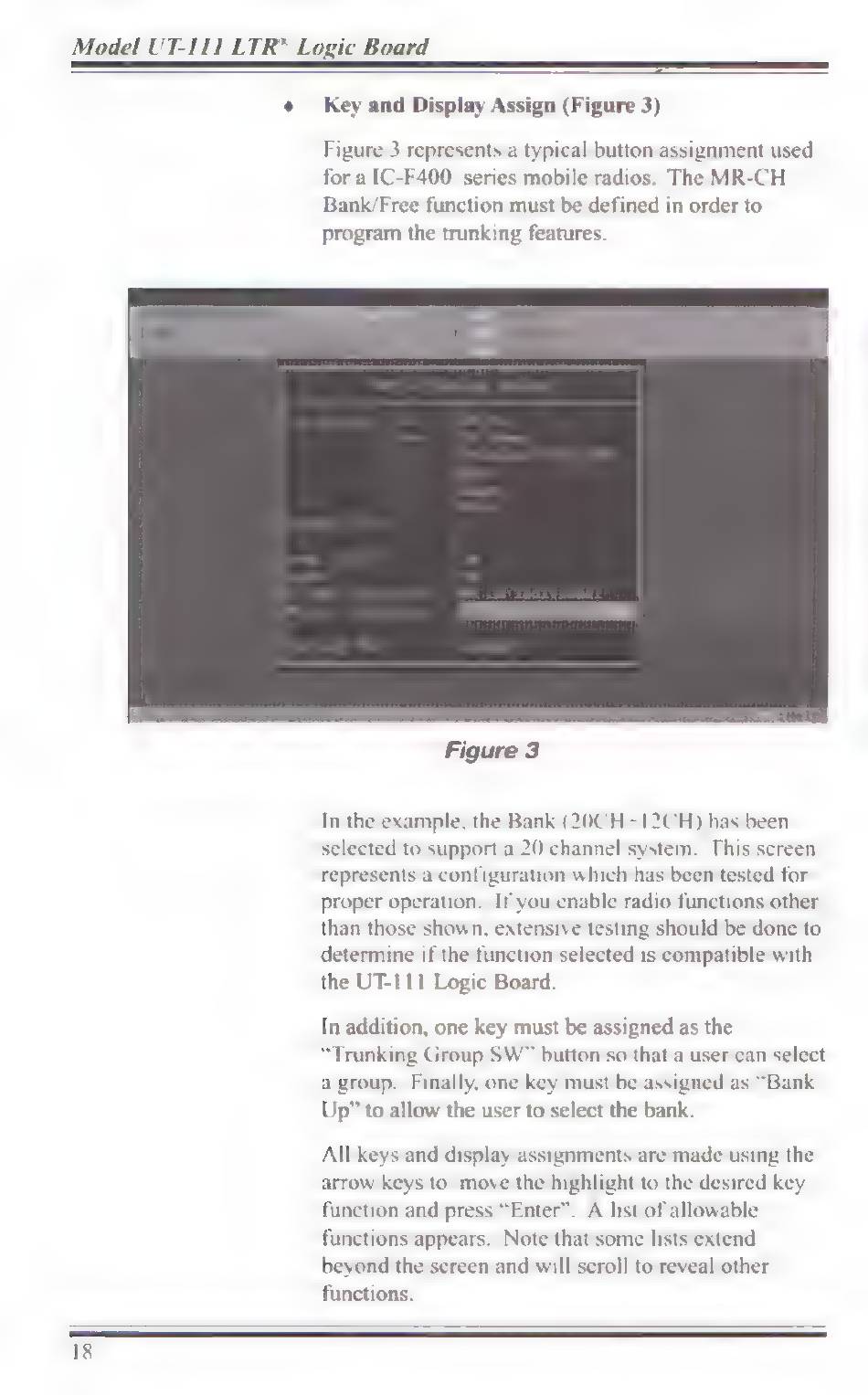

Model UT-111 LTR® Logic Board
°
Key and Display Assign (Figure 3)
Figure 3 represents a typical button assignment used
for a IC-F400 series mobile radios. The MR-CH
Bank/Free function must be defined in order to
program the trunking features.
Figure 3
In the example, the Bank (20CH+12CH) has been
selected to support a 20 channel system. This screen
represents a configuration which has been tested for
proper operation. If you enable radio functions other
than those shown, extensive testing should be done to
determine if the function selected is compatible with
the UT-111 Logic Board.
In addition, one key must be assigned as the
"Trunking Group SW" button so that a user can select
a group. Finally, one key must be assigned as "Bank
Up" to allow the user to select the bank.
All keys and display assignments are made using the
arrow keys to move the highlight to the desired key
function and press "Enter". A list of allowable
functions appears. Note that some lists extend
beyond the screen and will scroll to reveal other
functions.
