Icom UT-111 Instructions

TRUNKING UNIT
UT-111

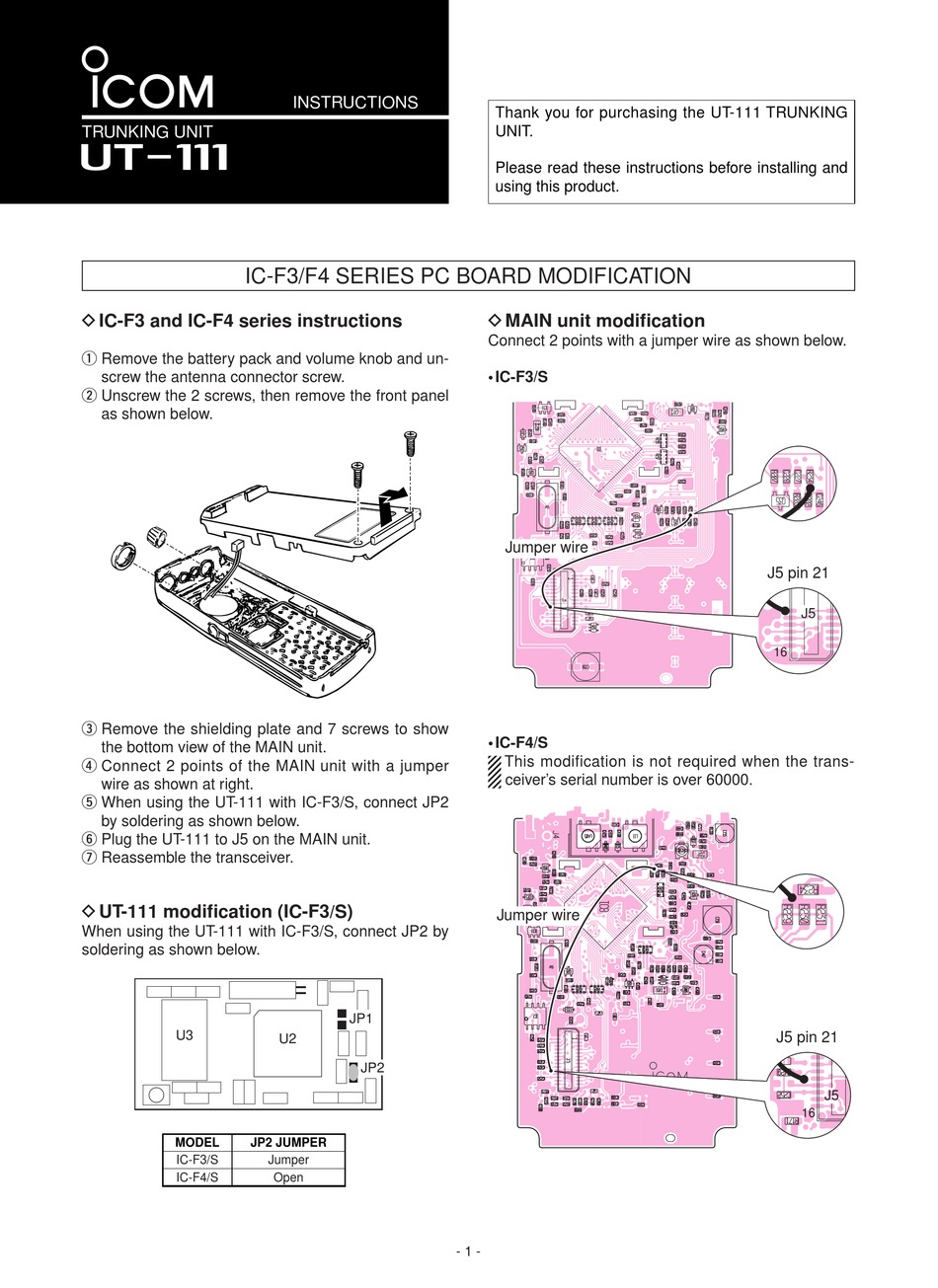

IC-F3/F4 SERIES PC BOARD MODIFICATION
D IC-F3 and IC-F4 series instructions
q Remove the battery pack and volume knob and un-
screw the antenna connector screw.
w Unscrew the 2 screws, then remove the front panel
as shown below.
e Remove the shielding plate and 7 screws to show
the bottom view of the MAIN unit.
r Connect 2 points of the MAIN unit with a jumper
wire as shown at right.
t When using the UT-111 with IC-F3/S, connect JP2
by soldering as shown below.
y Plug the UT-111 to J5 on the MAIN unit.
u Reassemble the transceiver.
D UT-111 modification (IC-F3/S)
When using the UT-111 with IC-F3/S, connect JP2 by
soldering as shown below.
U3
MODEL JP2 JUMPER
IC-F3/S
IC-F4/S
INSTRUCTIONS
JP1
U2
JP2
Jumper
Open
Thank you for purchasing the UT-111 TRUNKING
UNIT.
Please read these instructions before installing and
using this product.
D MAIN unit modification
Connect 2 points with a jumper wire as shown below.
• IC-F3/S
Jumper wire
• IC-F4/S
This modification is not required when the trans-
ceiver's serial number is over 60000.
Jumper wire
- 1 -
J5 pin 21
J5
16
J5 pin 21
J5
16
