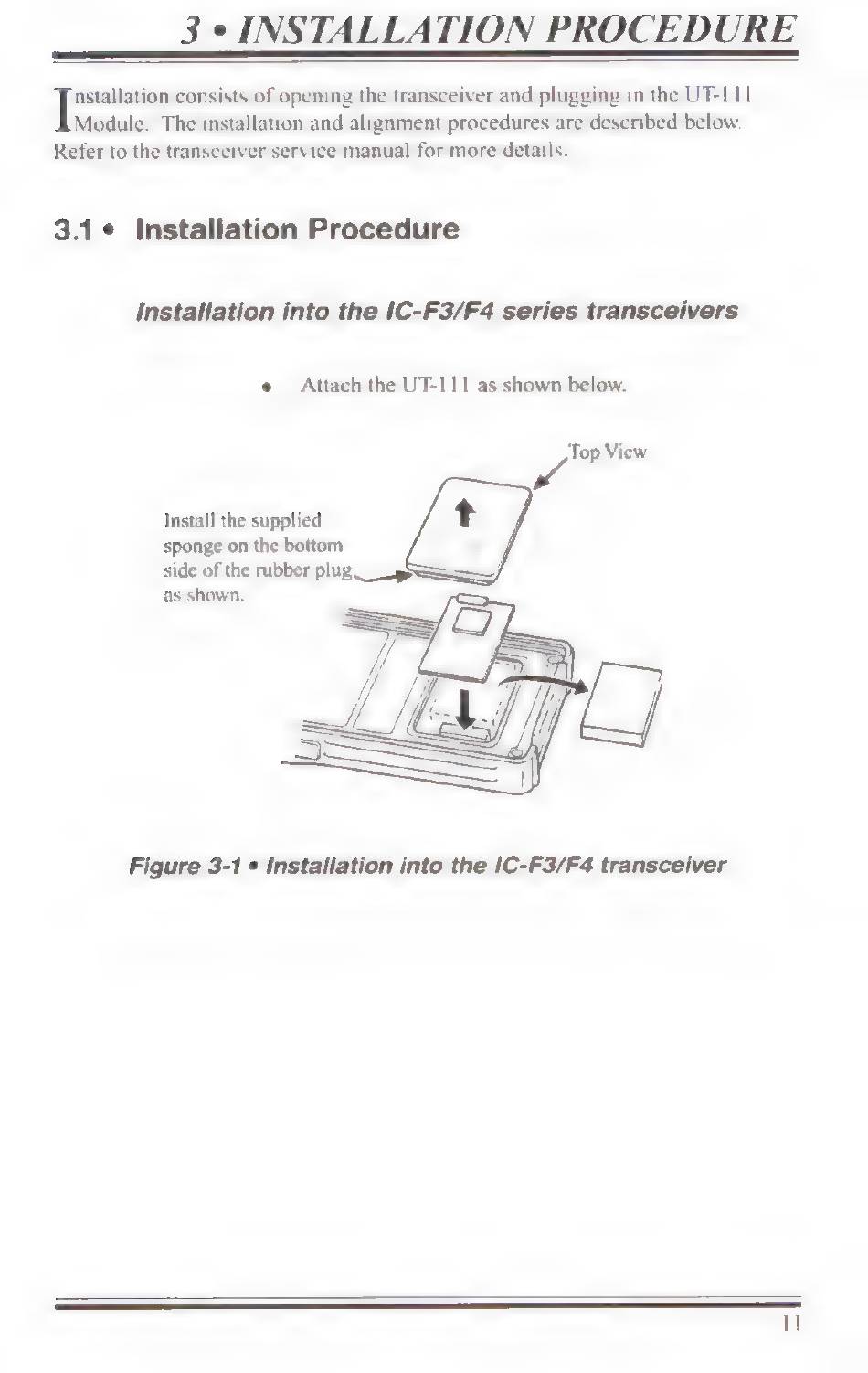

3 e INSTALLATION PROCEDURE
nstallation consists of opening the transceiver and plugging in the UT-111
Module. The installation and alignment procedures are described below.
Refer to the transceiver service manual for more details.
3.1¢
Installation Procedure
Installation into the IC-F3/F4 series transceivers
¢
Attach the UT-111 as shown below.
Top View
x
Install the supplied
sponge on the bottom
side of the rubber plug __gs
as shown.
Figure 3-1 ¢ Installation into the IC-F3/F4 transceiver
