Summary of Contents for J-Tech Digital JTD-179

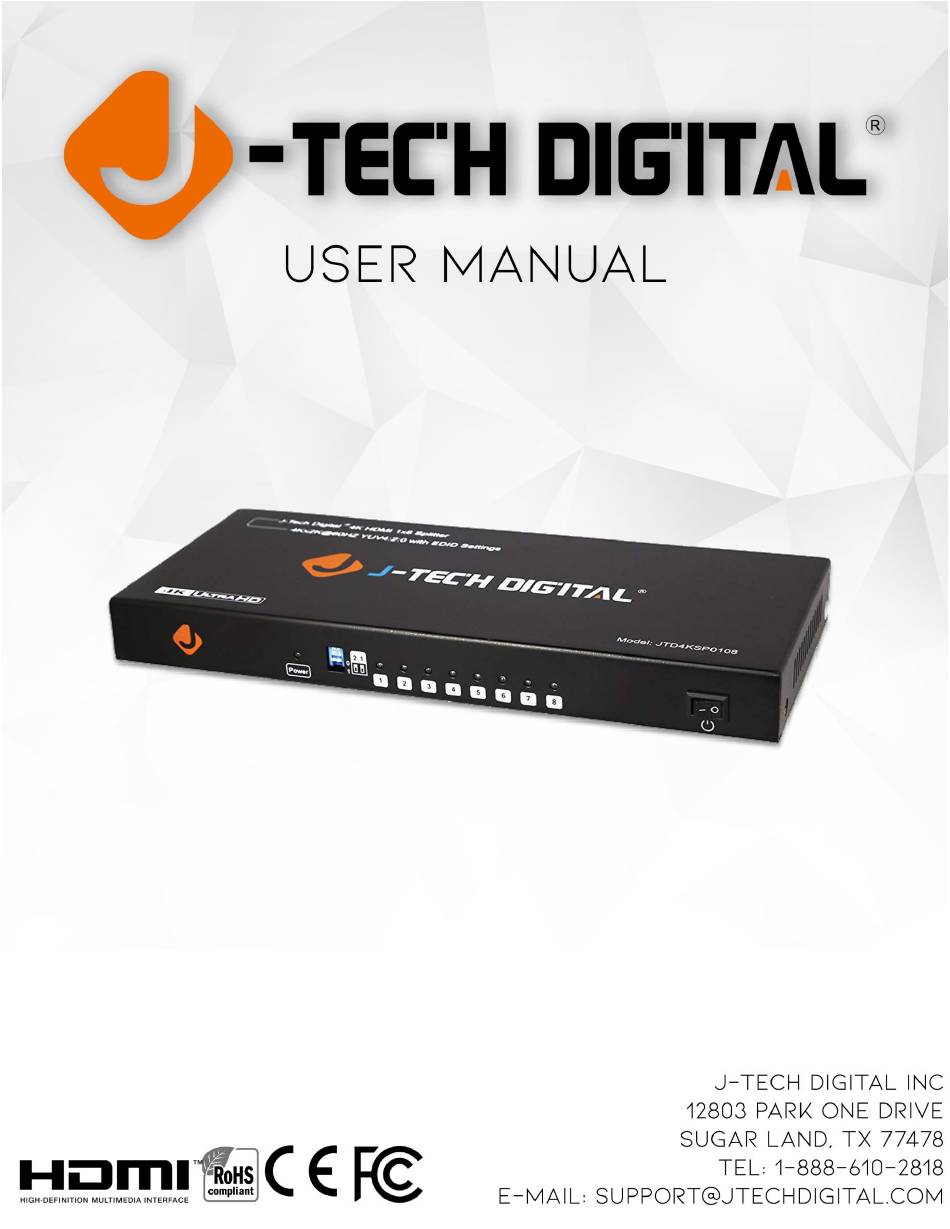

- Page 1 Operating Instructions 1x8 HDMI Distribution Splitter JTD-179 | JTD4KSP0108...
- Page 2 Supports LPCM 7.1 | Dolby TrueHD | Dolby Digital | DTS-HD Master Audio • HDCP 1.4 Compliant • Supports 3D *Note – J-Tech Digital reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior ritten notice. PACKAGE CONTENTS • 1 x J-Tech Digital JTD4KSP0108 HDMI Splitter •...
- Page 3 Operating Instructions TABLE OF CONTENTS Specifications Panel Descriptions EDID Settings Connecting and Operating Maintenance Warranty SPECIFICATIONS Operating Temperature Range 23°F to 95°F Operating Humidity Range 5 to 90% RH (No Condensation) Bandwidth Frequency 10.2 Gbps Input Ports 1 x HDMI Type-A 19-Pin Female Output Ports 8 x HDMI Type-A 19-Pin Female Resolution Output...
- Page 4 Operating Instructions PANEL DESCRIPTIONS Front Panel ① ② ③ ④ Back Panel ⑤ ⑥ ⑦ ① Power Input Indicator ③ HDMI Output Indicator ② EDID Management DIP Switches ④ On / Off Power Switch 11: Mixed EDID ⑤ Power Adapter Input Port 00: Copy EDID ⑥...
- Page 5 Operating Instructions CONNECTING & OPERATING 1) Connect the HDMI source device to the HDMI input port of the JTD4KSP0108 2) Connect the HDMI output ports to the desired HDMI displays 3) Power on splitter, source and displays...
- Page 6 Operating Instructions MAINTENANCE PRODUCT SERVICE 1) Damage Requiring Service: The unit should be serviced by qualified service personnel if: a. The DC power supply cord or AC adaptor has been damaged; b. Objects or liquids have gotten into the unit; c.
- Page 7 RESPONSIBILITY. EXTENDED WARRANTY With the registration of supported J-Tech Digital products, you extend the current warranty by 6 months. This extension is added to the warranty that starts at the purchase date of the device supported. Total product warranty with the extended period will equate to a total of 18 months of warranty from the date of purchase.
