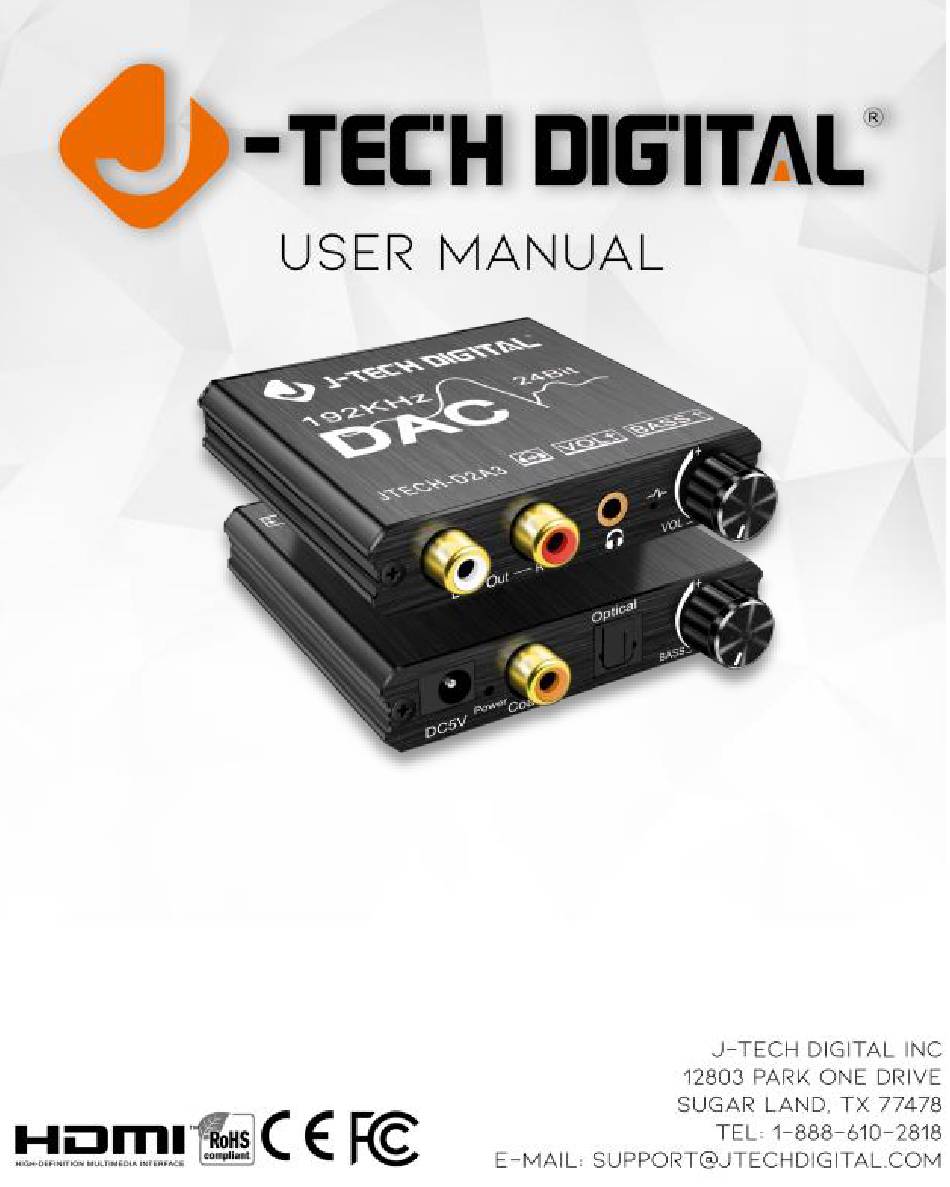

- Page 1 Digital to analog audio converter JTD-482 | JTECH-D2A3...
- Page 2 Note: Before powering on, turn the adjustment knobs counterclockwise to minimize the volume and bass and avoid damage to your hearing. Before use, please set the audio output port of your source devices (DVD | TV | PS4 | etc.) to SPDIF and set the output audio format to PCM/LPCM.
- Page 3 Features: ⚫ One Optical Audio Input Port | One Coaxial Audio Input Port ⚫ One RCA Audio Output Port ⚫ One 3.5mm Audio Output Port ⚫ Eliminates noise when there is no input signal and automatically mutes when a non-audio signal is input ⚫...
-
Page 4: Specifications
Specifications: Supported Audio Format.......PCM/LPCM Signal-to-Noise Ratio..........105dB Separating Degree(1KHZ)........94dB Frequency Response......20Hz~20KHz -0.2dB THD+N..............-90dB Total Harmonic Distortion (THD)....10Hz~20KHz 0.25-0.065% Blocking Time.............0.577Fs Sampling Rate..........32~192 KHz Bit Rate.............16~24 Bit Output Electrical Level..........2.2V Maximum Output Power..........0.3W Earphone Output Power........0-250mW Output Impedance..........10 Ohms... - Page 5 Working Voltage....+5V | Maximum Voltage: 6V Maximum Power Consumption......100mA Operating Temperature Range......14-158F Storage Temperature Range......-76-302°F Operating Humidity Range………....10% - 80% RH (No Condensation) Storage Humidity Range……………………...5- 90% RH (No Condensation) Dimensions.........2.99in x 2.75in x 0.62in Gross Weight.............0.33 lbs. Package Contents： 1PCS..JTECH-D2A3 1PCS..User Manual 1PCS..USB Power Cable...
- Page 6 Diagram of Interfaces： 1. Power Port 2. Power Indicator LED 3. Coaxial Digital Audio Input Port 4. Optical Digital Audio Input Port 5. Bass Adjustment Knob...
- Page 7 6. RCA Audio Output Port 7. 3.5mm Audio Output Port 8. Input Signal Status LED 9. Volume Adjustment Knob...
- Page 8 Connection and Operation： 1. Use optical cable or coaxial cable to connect your source device to the optical or coaxial input port of the JTECH-D2A3. 2. Use the RCA cable or 3.5mm audio cable to connect the JTECH-D2A3 to the audio amplifier or headphones.
- Page 9 Note：Please use the machine as instructed to ensure longevity. 1. Please do not expose this unit to the damp, high- temperature, dusty, erosive, or oxidative environments. 2. Please refrain drop hitting, shaking or dropping the unit. 3. Please do not touch the power adapter plug with wet hands.
