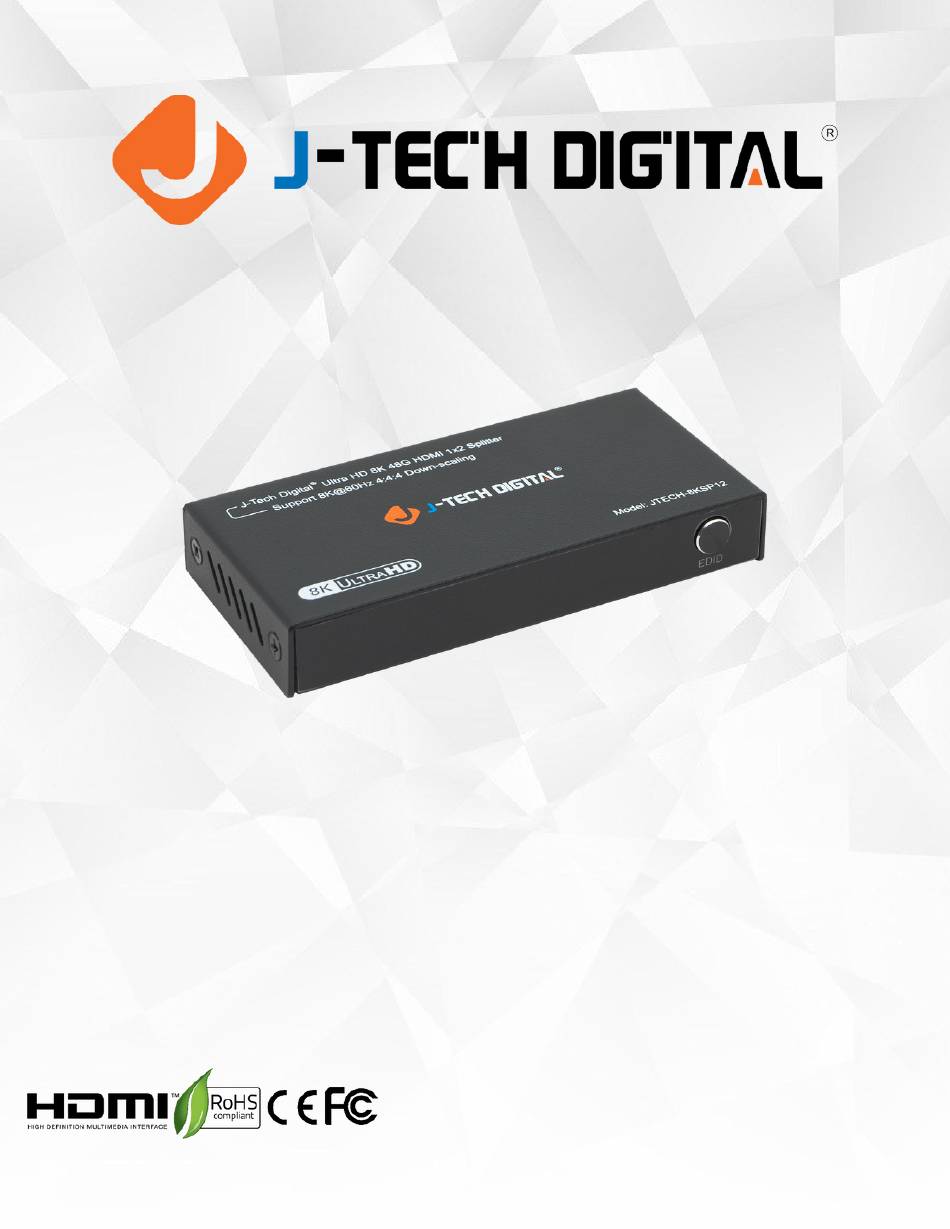

- Page 1 V1.0 USER MANUAL Ultra HD 8K HDMI 1x2 Splitter JTD-3024 | JTECH-8KSP12 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Scan the QR code below or visit https://resource.jtechdigital.com/products/3024 to view and access detailed digital resources regarding this unit.
- Page 3 Safety Instructions: Before using this product, please carefully read the following safety instructions to ensure its proper use and keep this manual for future reference: To prevent electric shock, do not attempt to open the product. Only qualified personnel should perform any repairs or maintenance. Always place the product on a stable, flat surface to prevent it from falling.
-
Page 4: Table Of Contents
Table of Contents Introduction Package Contents Panel Description Features Specifications Connection Diagram Troubleshooting Common Issues Maintenance Warranty Mail-In Services Limited Warranty Limits and Exclusions... -
Page 5: Introduction
1. Introduction The HDMI 8K 1x2 splitter lets you share two HDMI displays or projectors with an HDMI-enabled audio/video source device. With support for Ultra HD (8K@60Hz), this HDMI splitter ensures astonishing picture quality, four times the resolution of UHD 4K@60Hz. This splitter is also backwards compatible with previous HDMI revisions supporting 4K/1080P/720P HDMI video resolution devices. -
Page 6: Features
4. “Copy” Mode: LED on lets the splitter copy resolution and audio format from output 1 to output the signal to both displays 5. “Downscaler” Mode: LED on lets the splitter downscale an 8K resolution signal to 4K or 1080P for output 2, while keeping 8K resolution for output 1 6. -
Page 7: Specifications
5. Specifications Input Ports 1 x HDMI Output Ports 2 x HDMI Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 10Gbps/1000MHz per channel (40Gbps all channels) Interlaced (50 & 60Hz) 480i, 576i, 1080i Progressive (50 & 60Hz) 480p, 576p, 720p, 1080p, 4K@24/30/50/60/120Hz, 8K@24/30/50/60Hz Limited Warranty 1 Year Limited... -
Page 8: Connection Diagram
6. Connection Diagram... -
Page 9: Troubleshooting Common Issues
7. Troubleshooting Common Issues Q: Power light is off and product is not working. How can I fix this? A: First, please check the following: 1. Ensure that your device‘s HDMI input device and power supply is properly connected and power is turned on 2. -
Page 10: Maintenance
8. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 9. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 11 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
