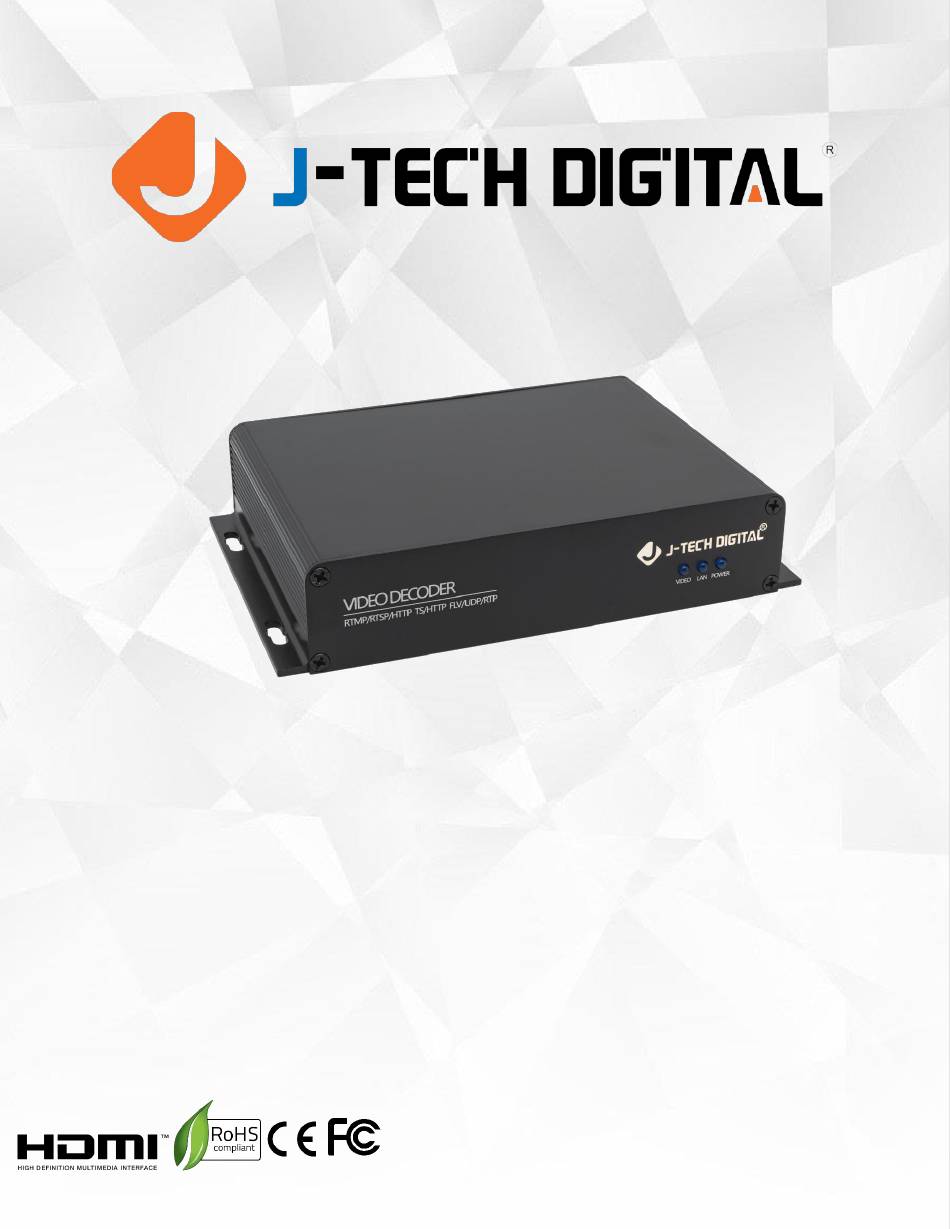

- Page 1 USER MANUAL IPTV H265/264/NDI Decoder JTD-623 | JTECH-DE5NDI J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 P a g e 1 | 15 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..................3 2. Parameters ..................3 3. Hardware Description ..............3 4. Accessing the Web Interface ............4 5. Playing a Video ................5 6. Finding the ONVIF device RTSP URL ..........6 7. Finding the NDI device play URL ..........7 8. -
Page 3: Introduction
Introduction JTECH-DE5NDI is a decoder that converts RTSP/RTMP/HTTP/HLS/UDP/RTP/SRT to HDMI/VGA/ SID/CVBS video signal output, which is widely used in education, monitoring, conference, radio & television, entertainment, and other fields. Parameters Name Power Supply Temperature Humidity JTECH-DE5NDI 192.168.1.169 12V 2A -20℃+60℃ <90%, non-condensed Hardware Description P a g e... -
Page 4: Accessing The Web Interface
Accessing the Web Interface 1. Connect the power supply to the decoder 2. Connect an Ethernet cable from the decoders “LAN” port to your network switch 3. Connect a HDMI/VGA/CVBS cable from the decoder to a display 4. Open a web browser and enter http://192.168.1.169 in the address field. This will prompt you to enter the username and password. -
Page 5: Playing A Video
Playing a Video 1. Go to “Address setting → decode wndnum → channel1 addr → Input RTSP/RTMP/HTTP/HLS/UDP/RTP/SRT URL” 2. To check the status of the channel, go to “Status → Channel1 → Check whether the status is normal” 3. After checking the status to be normal, the video feed should now be available P a g e 5 | 15... -
Page 6: Finding The Onvif Device Rtsp Url
Finding the ONVIF device RTSP URL 1. Go to “Address setting → ONVIF device → ONVIF list → Select item” 2. Input username: admin and password: admin → Click Get RTSP URL P a g e 6 | 15... -
Page 7: Finding The Ndi Device Play Url
3. Copy the URL → channel1 addr → paste the URL Finding the NDI device play URL 1. Go to “Address setting → NDI device → NDI list → Select item” P a g e 7 | 15... -
Page 8: Adjusting Channel Layout
2. Copy the URL → channel1 addr → paste the URL Adjusting Channel Layout To adjust the channel layout, go to “Advance setting → Channel Layout → Set up 4 screens or another layout” P a g e 8 | 15... -
Page 9: Adjust Crop Settings
Adjust Crop Settings To adjust the image, go to “Advance setting → Crop setting → Set 'X Y’ fields for video coordinates, and ‘W H’ for cropping width and height” 10. OSD Settings To adjust the On-Screen Display (OSD) settings, go to “Advance setting → OSD setting → Set the display text, picture and scroll text for 4 areas P a g e 9 | 15... -
Page 10: Adjust System Output Settings
11. Adjust System Output Settings For system output settings, go to “System setting → System output → Set the HD output, color parameters, and CVBS signal output coordinates” P a g e 10 | 15... -
Page 11: Rebooting The Decoder
12. Rebooting the Decoder To reboot the decoder, go to “System setting → Reboot device → Click Reboot” P a g e 11 | 15... -
Page 12: Factory Reset
13. Factory Reset There are 2 ways to factory reset the decoder: 1. Go to “System setting → Reset device → Click Reset” 2. With the decoder powered on, press and hold the reset button for more than 8 seconds until the panel LED indicators are off P a g e 12 | 15... -
Page 13: Common Issues
14. Common Issues If the display has no signal output, check to see if the channel status within the decoders Status tab is normal. Also, please check to see whether the decoding address is correct and the decoder network can access the address. -
Page 14: Extended Warranty
SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. 18. Extended Warranty With the registration of supported J-Tech Digital products, you extend the current warranty by 6 months. This extension is added to the warranty that starts at the purchase date of the device supported. Total product warranty with the extended period will equate to a total of 18 months of warranty from the date of purchase. - Page 15 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM P a g e 15 | 15...
