Product Name :
SKU # :
WHIF2146
Thank you for purchasing this LuxenHöme product.
This product has been manufactured with the highest standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts.
Do not attempt to assemble or use the product if any parts are missing or damaged.

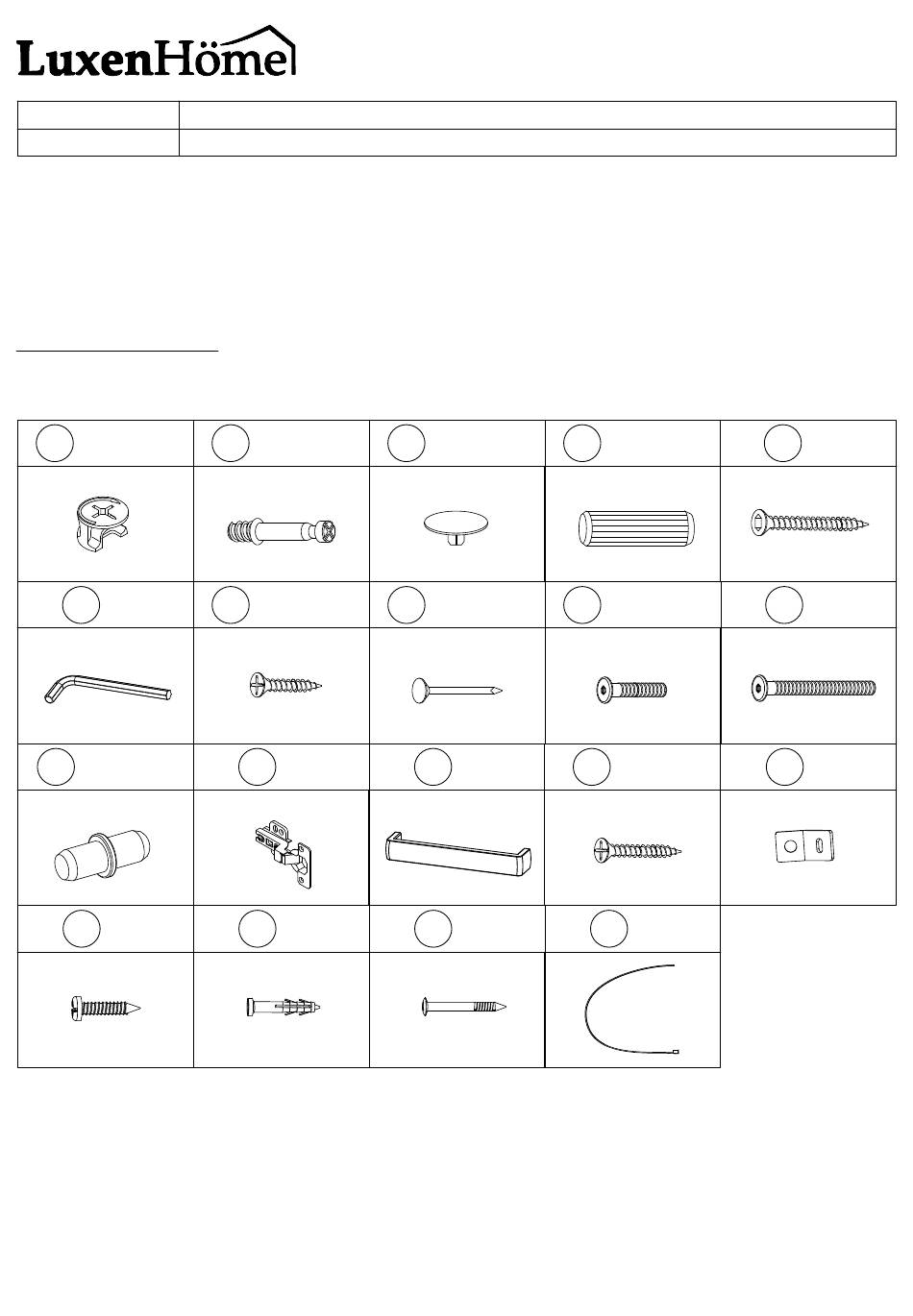

CARTON CONTENTS:
Hardware -
A1 x 42 + 4
D x 1
I
x 8 + 2
M2 x 2
4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs
A2 x 42 + 4
E x 48 + 4
J x 8
M3 x 2
Please save this manual for future reference.
A3 x 42 + 4
F x 24+ 3
K x 4
M4 x 2
Instruction Manual
B x 28 + 3
G x 8 + 2
L x 8 + 2
M5 x 2
C x 2
H x 8
M1 x 4
Page
1
of
23
Advertisement
Related Manuals for LuxenHome WHIF2146
Summary of Contents for LuxenHome WHIF2146
- Page 1 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality.
- Page 2 Instruction Manual Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Panels - 4 x 1 5 x 1 1 x 1...
- Page 3 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Panels - 02 : 00 Tools required for assembly: Philips screwdriver and flathead screwdriver (if using power tools, use with care).
- Page 4 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 ASSEMBLY INSTRUCTIONS: Step 1: Install and tighten hardware A2 until the shoulder is flush with panels 1, 2 and 3.
- Page 5 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 2: Install and tighten hardware A2 until the shoulder is flush with panels 4, 11 and 12. Insert hardware B to panels 4, 5 and 6.
- Page 6 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 3: Connect panel 5 and 6 to panel 1 by using hardware A1. Attach hardware A3 on top of hardware A1.
- Page 7 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 4: Connect panel 6 to panel 2 by using hardware A1. Attach hardware A3 on top of hardware A1.
- Page 8 Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 5: Connect panel 2 to panel 5 by using hardware C and D. C x 2 Page...
- Page 9 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 6: Connect panel 3 and 4 to panel 11 and 12 by using hardware A1. Attach hardware A3 on top of hardware A1.
- Page 10 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 7: Connect panel 3, 11 and 12 to panel 1, 2 and 6 by using hardware A1. Attach hardware A3 on top of hardware A1.
- Page 11 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 8: Connect panel 4, 11 and 12 to panel 1, 2 and 6 by using hardware A1. Attach hardware A3 on top of hardware A1.
- Page 12 Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 9: Assemble panel 7 to entire body with hardware F. F x 24 F x 24...
- Page 13 Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 10: Connect panel 13 to panel 14 by using hardware G. G x 8 G x 8...
- Page 14 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 11: Connect panel 13 and 14 to panel 2 by using hardware H. H x 8 H x 8...
- Page 15 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 12: Insert hardware I into mounting positions on panel 3, 4 and 5 by hand. I x 8 Page...
- Page 16 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 13: Assemble the panel 8 into between panel 3 and 5. Assemble the panel 8 into between panel 4 and 5.
- Page 17 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 14: Fix hardware J to panel 9 and 10 by using hardware E. Fix hardware K to panel 9 and 10 by using hardware L.
- Page 18 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 15: Assemble panel 9 to panel 3 and 4 by using hardware E. Assemble panel 10 to panel 5 by using hardware E.
- Page 19 Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 16: Fix hardware M1 into panel 1 by using hardware M2. M1 x 2 M2 x 2...
- Page 20 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 17: Mark and use the power drill to drill a hole on the wall. Hit hardware M3 into the wall. M3 x 2...
- Page 21 Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 18: Assemble hardware M1 to M3 by using hardware M4. M1 x 2 M4 x 2...
- Page 22 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Step 19: Connect both of the hardware M1 by using hardware M5. Tighten the hardware M5. M5 x 2 Page...
- Page 23 Instruction Manual Please save this manual for future reference. 4-Door with Soft Close 63-Inch Wide Sideboard Server Cabinet with Black Metal Legs Product Name : SKU # : WHIF2146 Page...
