Product Name :
SKU # :
WHIF2144
Thank you for purchasing this LuxenHöme product.
This product has been manufactured with the highest standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts.
Do not attempt to assemble or use the product if any parts are missing or damaged.

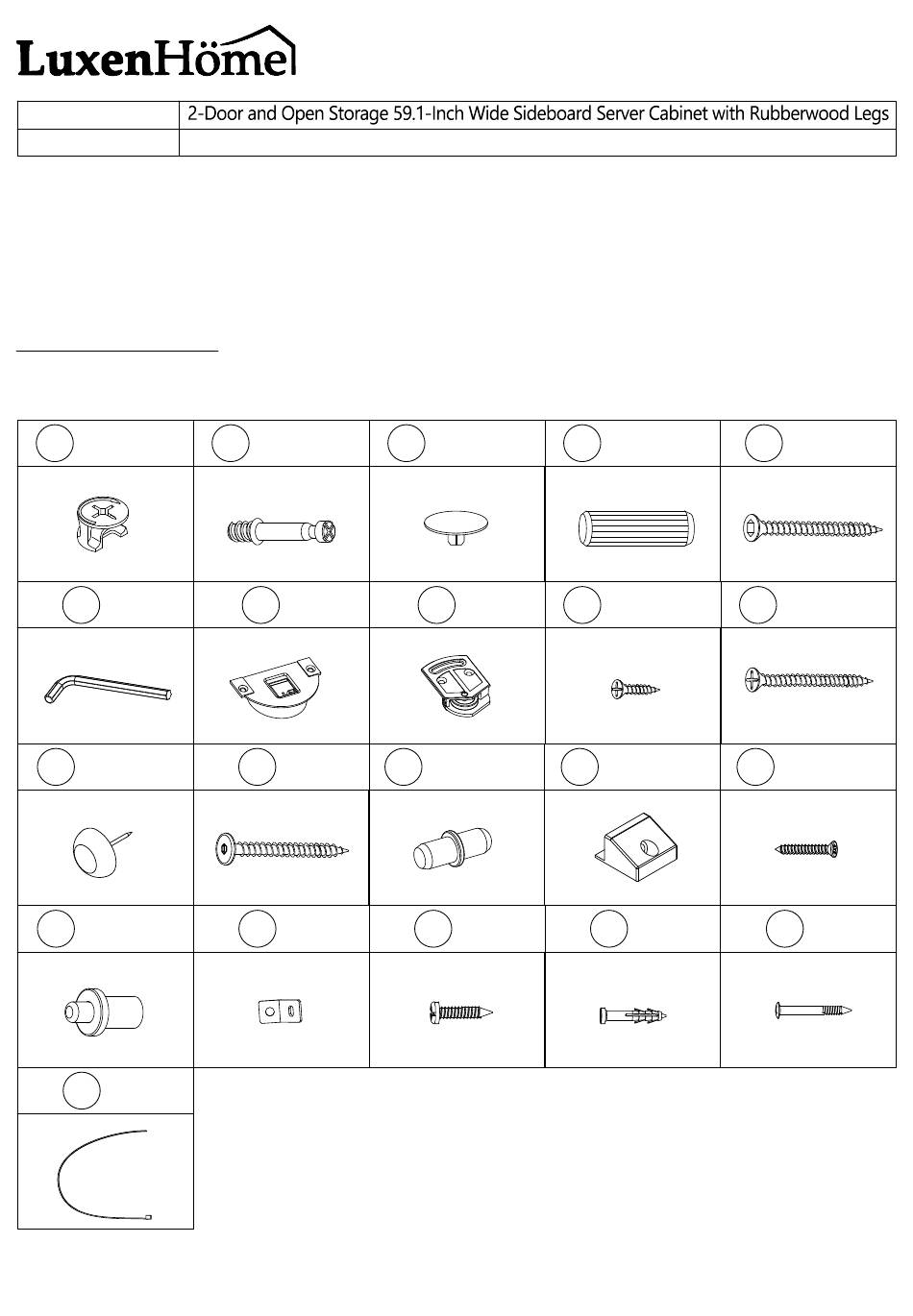

CARTON CONTENTS:
Hardware -
A1 x 10 + 2
D x 1
H
x 4 + 2
L x 90 + 7
M5 x 2
A2 x 10 + 2
E1 x 4
I x 2
M1 x 4
Please save this manual for future reference.
A3 x 10 + 2
E2 x 4
J
x 8 + 2
M2 x 2
Instruction Manual
B x 24 + 3
F x 16 + 2
K1
x 8 + 2
M3 x 2
C x 16 + 2
G x 7 + 2
K2 x 8 + 2
M4 x 2
Page
1
of
25
Advertisement
Related Manuals for LuxenHome WHIF2144
Summary of Contents for LuxenHome WHIF2144
- Page 1 Please save this manual for future reference. Product Name : SKU # : WHIF2144 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Panels - 4 x 1 5 x 1 1 x 1 2 x 1 3 x 1 6 x 4 7 x 1 8 x 1...
- Page 3 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Panels - 02 : 00 Tools required for assembly: Philips screwdriver, flathead screwdriver, and hammer (if using power tools, use with care). Page...
- Page 4 Please save this manual for future reference. Product Name : SKU # : WHIF2144 ASSEMBLY INSTRUCTIONS: Step 1: Install and tighten hardware A2 until the shoulder is flush with panels 1. Insert hardware B to panels 3, 4, 5 and 6.
- Page 5 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 2: Insert hardware B to panels 7, 8 and 15. Insert hardware L to panels 12 and 15. B x 8 L x 90 Warning: To avoid scratch, make sure to put the panel on clean and soft surface.
- Page 6 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 3: Connect panel 7 to panel 3 and panel 8 to panel 4 by using hardware C. C x 4 Page...
- Page 7 Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 4: Connect panel 3, 4, 5, 6 and 9 to panel 1 by using hardware A1. Attach hardware A3 on top of hardware A1. A1 x 10...
- Page 8 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 5: Connect panel 7 to panel 5 and panel 8 to panel 6 by using hardware C. C x 2 Page...
- Page 9 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 6: Insert panel 10 along the slot at panel 1, 3 and 4. Page...
- Page 10 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 7: Connect panel 2 to panel 3, 4, 5, 6 and 9 by using hardware C. C x 10 C x 10 Page...
- Page 11 Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 8: Insert hardware K1 into slot at panel 1, 2, 3 and 4. Assemble hardware K1 by using hardware K2. K1 x 8 + 2...
- Page 12 Product Name : SKU # : WHIF2144 Step 9: Assemble parts 12 into between panel 1 and 7, panel 1 and 8, panel 2 and 7, panel 2 and 8 by pressing the attached hardware L into the groove on panel 1, 2, 7 and 8.
- Page 13 Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 10: Assemble part 15 onto panel 3 and 4 by pressing the attached hardware L into the slot. Fix the assembled parts 15 to panel 2 by using hardware G.
- Page 14 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 11: Connect panel 14 to panel 2 by using hardware G. G x 3 Page...
- Page 15 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 12: Fix panel 14 to parts 15 by using hardware I. I x 2 Page...
- Page 16 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 13: Hit hardware H into bottom of panel 15. H x 4 Page...
- Page 17 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 14: Fix hardware J onto panel 3 and 4. J x 8 Page...
- Page 18 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 15: Assemble panel 11 into between panel 3 and 4. Page...
- Page 19 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 16: Assemble hardware E1 and E2 to panel 13 with hardware F. F x 16 E1 x 4 E2 x 4 Page...
- Page 20 Product Name : SKU # : WHIF2144 Step 17: Put panel 13 in place by inserting attached hardware E2 on panel 13 into groove at panel 2. Press the pin on hardware E1 and insert it into groove at panel 1.
- Page 21 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 18: Fix hardware M1 into panel 1 by using hardware M2. M1 x 2 M2 x 2 Page...
- Page 22 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 19: Mark and use the power drill to drill a hole on the wall. Hit hardware M3 into the wall. M3 x 2 Page...
- Page 23 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 20: Assemble hardware M1 to M3 by using hardware M4. M1 x 2 M4 x 2 M1 M3 M1 M3 Page...
- Page 24 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Step 21: Connect both of the hardware M1 by using hardware M5. Tighten the hardware M5. M5 x 2 Page...
- Page 25 Instruction Manual Please save this manual for future reference. Product Name : SKU # : WHIF2144 Page...
