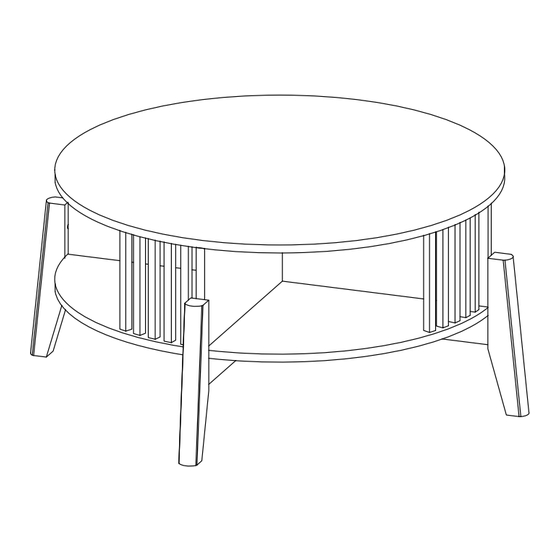

31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs
Product Name :
SKU # :
WHIF2143
Thank you for purchasing this LuxenHöme product.
This product has been manufactured with the highest standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts.
Do not attempt to assemble or use the product if any parts are missing or damaged.
CARTON CONTENTS:
Hardware -
A1 x 6 + 2
D x 1
A2 x 6 + 2
E x 8 + 2
Please save this manual for future reference.
A3 x 6 + 2
F x 4 + 2
Instruction Manual
B x 12 + 2
G x 44 + 4
C x 6
Page
1
of
11
Advertisement
Related Manuals for LuxenHome WHIF2143
Summary of Contents for LuxenHome WHIF2143
- Page 1 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Instruction Manual Please save this manual for future reference. 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Panels - 4 x 2 5 x 20 1 x 1 2 x 1 3 x 1...
- Page 3 Please save this manual for future reference. 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Panels - 02 : 00 Tools required for assembly: Philips screwdriver, flathead screwdriver, and hammer (if using power tools, use with care).
- Page 4 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 ASSEMBLY INSTRUCTIONS: Step 1: Install and tighten hardware A2 until the shoulder is flush with panels 1. Insert hardware B to panels 3, 4, 5, 6 and 7.
- Page 5 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Step 2: Connect panel 3 and 4 to panel 1 by using hardware A1. Attach hardware A3 on top of hardware A1. A1 x 6...
- Page 6 Please save this manual for future reference. 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Step 3: Connect panel 2 to panel 3 and 4 by using hardware C. C x 6 C x 6...
- Page 7 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Step 4: Assemble parts 5 into between panel 1 and panel 2 by pressing the attached hardware G into the groove on panel 1 and 2.
- Page 8 Instruction Manual Please save this manual for future reference. 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Step 5: Attach panel 6 and panel 7 together. Page...
- Page 9 Product Name : SKU # : WHIF2143 Step 6: Assemble part 6 and 7 onto panel 3 and 4 by pressing the attached hardware G into the slot. Fix the assembled panel 6 and 7 to panel 2 by using hardware E.
- Page 10 Instruction Manual Please save this manual for future reference. 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Step 7: Hit hardware F into bottom of panel 6 and 7. F x 4 Page...
- Page 11 Instruction Manual Please save this manual for future reference. 31.5-Inch Round Manufactured Wood Coffee Table with Rubberwood Legs Product Name : SKU # : WHIF2143 Page...
