Product Name:

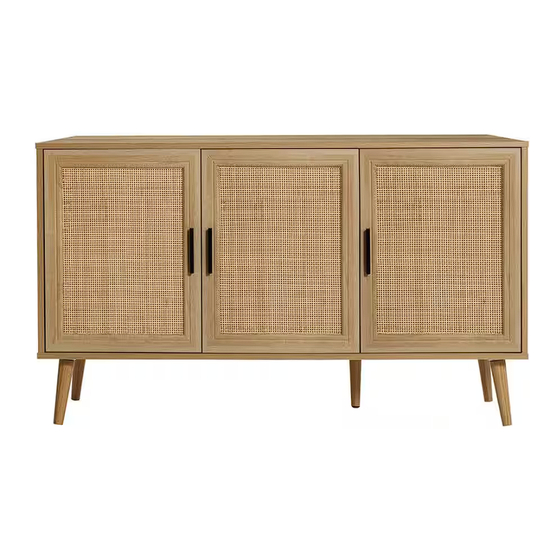

3-Door Rattan Light Oak Finish Wood Sideboard Cabinet
SKU #:
WHIF1830
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts. Do not attempt to
assemble or use the product if any parts are missing or damaged.
CARTON CONTENTS:

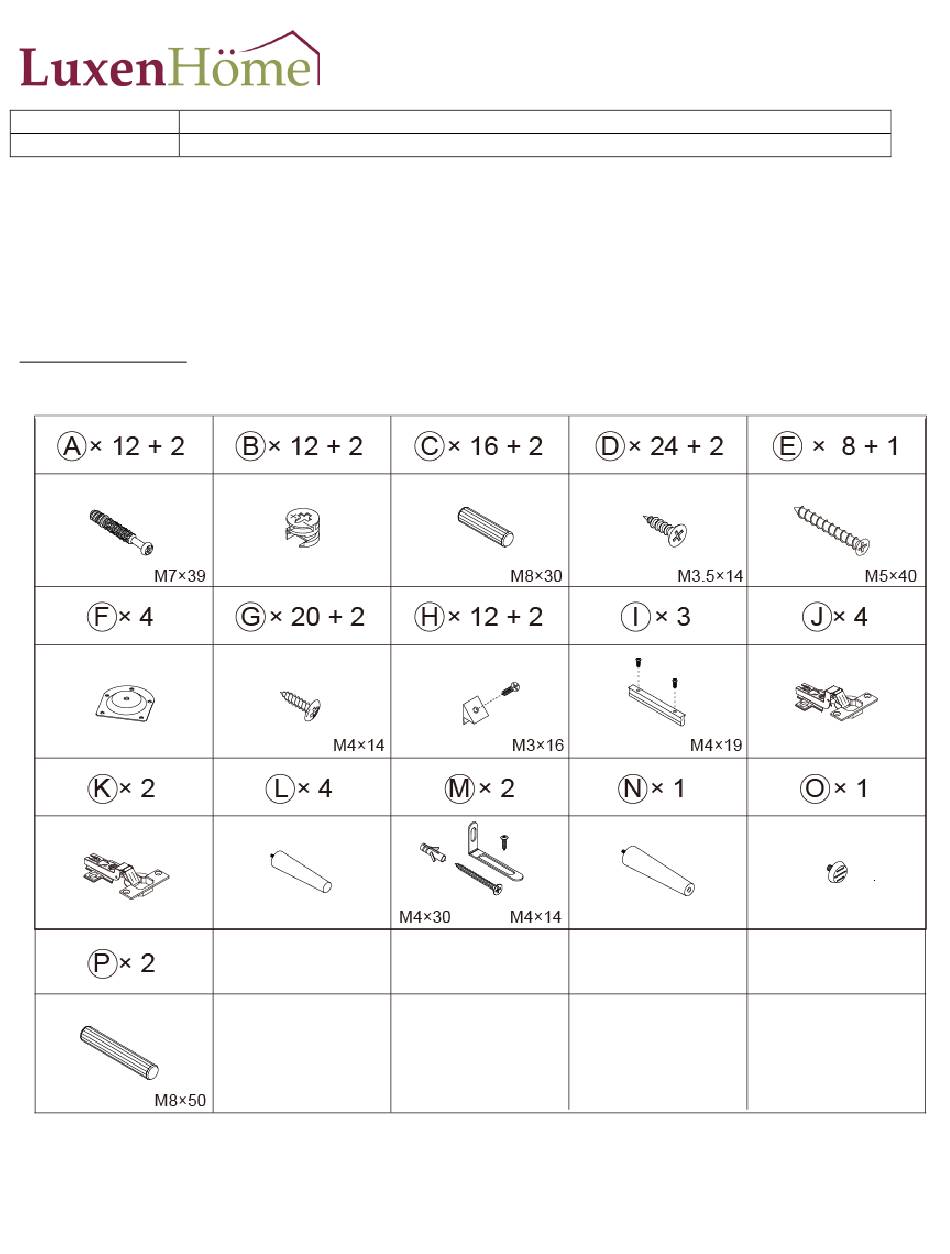

Hardware –
Please save this manual for future reference.
Instruction Manual
Advertisement
Related Manuals for LuxenHome WHIF1830
Summary of Contents for LuxenHome WHIF1830
- Page 1 Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Panels – Tools required for assembly: Philips screwdriver and flathead screwdriver (if using power tools, use with care).
- Page 3 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Panels –...
- Page 4 Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 ASSEMBLY INSTRUCTIONS: Step 1: Install and tighten hardware A until the shoulder is flush with panels 1, 2, and 3.
- Page 5 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 2: Connect panel 4 to panels 1 and 2 using hardware C and P and B and E.
- Page 6 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 3: Connect panel 5 to panels 2 and 3 using hardware C and B.
- Page 7 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 4: Connect panel 6 to the assembled section (panels 1, 2, and 3) using hardware C and E.
- Page 8 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 5: Install hardware F to panel 6 using hardware G.
- Page 9 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 6: Attach the cabinet legs L to the four corners of panel 6 by screwing it into hardware F. Screw center leg N directly to panel 6. Do not over-tighten to prevent cracking or stripping. Add hardware O to Leg N (screw it on until secure).
- Page 10 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 7: Carefully flip the cabinet right side up. Connect panels 7 and 9 to slim panel 8 (the center of the assembled back panel). Then slide the assembled back panel into...
- Page 11 Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 8: Install and tighten hardware A until the shoulder is flush with the underside of panel 10. Install hardware M bracket using hardware A into panel 10.
- Page 12 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 9: Attach panel 10 to the assembled section of panels 1, 2, and 3 using hardware B.
- Page 13 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 To stabilize the body, Step 10: cabinet lock hardware H on the back of panels 9 and 7 in 12 places with the screw...
- Page 14 Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Assemble the hardware to cabinet doors 11 (x 2) and 12. Install hardware J to doors 11 (x 2) and 12 using Step 11: hardware D. Then install hardware I to doors 11 (x 2) and 12 with the screws in hardware I.
- Page 15 Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Attach one of the doors 11 to panel 1, and the other door 11 to panel 3 using hardware D. Attached door 12 Step 12: to panel 2 using hardware D.
- Page 16 Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Tips: Adjust the door up and down by loosening and tightening the screws in the vertical position. Adjust the door front and back with the left screw in the horizontal position.
- Page 17 Instruction Manual Please save this manual for future reference. Product Name: 3-Door Rattan Light Oak Finish Wood Sideboard Cabinet SKU #: WHIF1830 Step 13: For additional stability, secure the cabinet to the wall using the restraint kit included.
