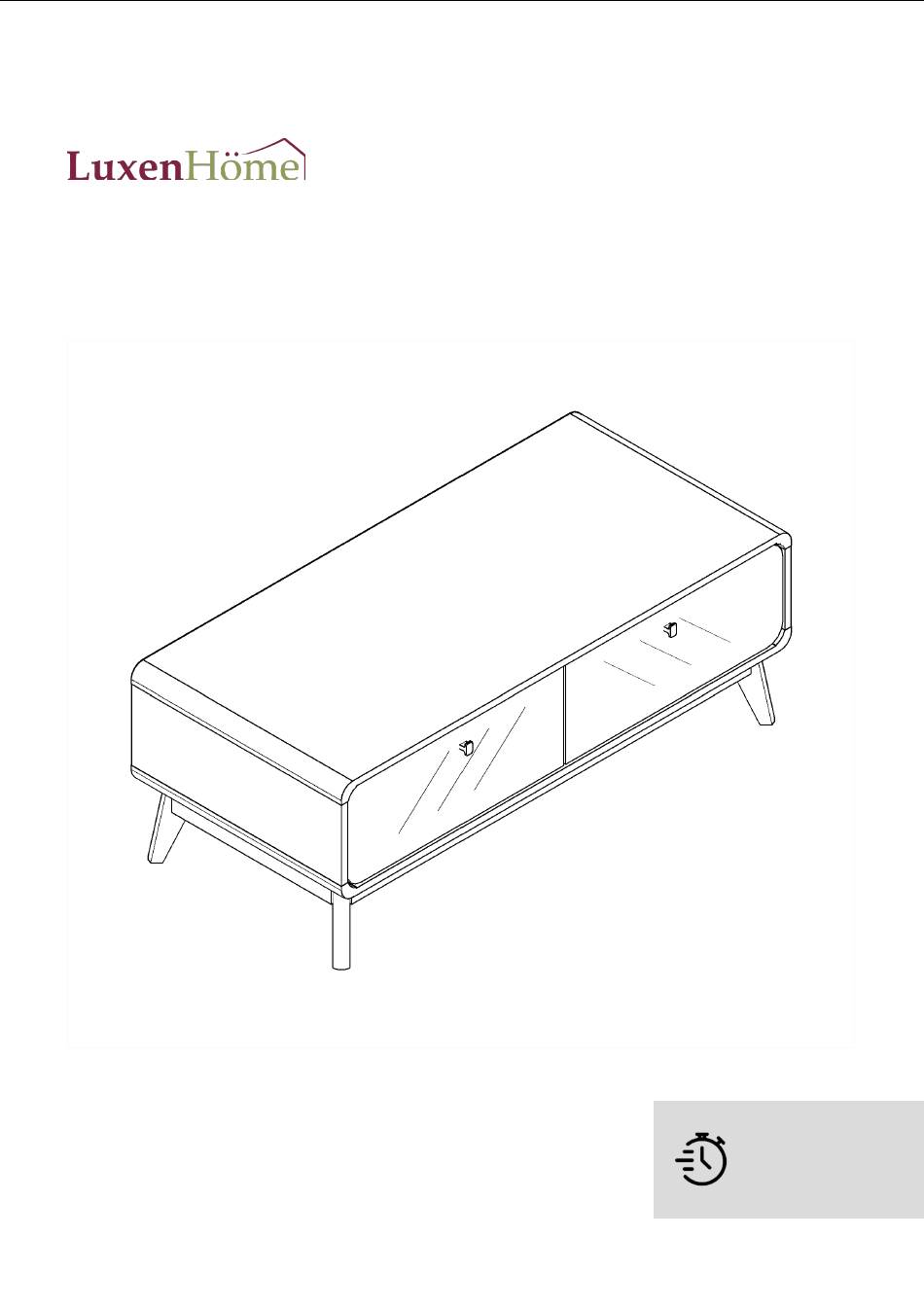

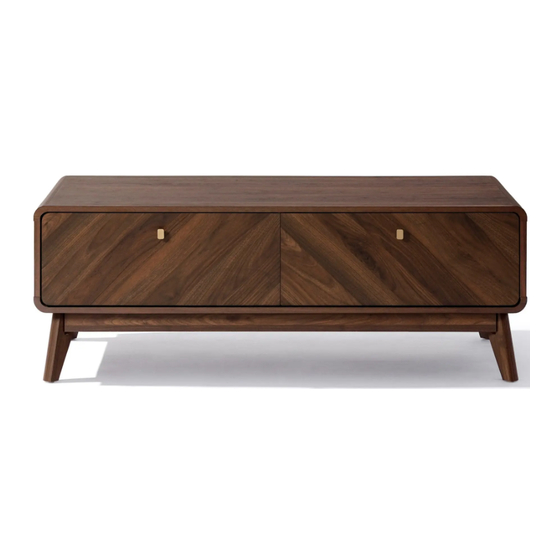

- Page 1 Columbia Coffee Table SKU WHIF2250 60 min. assembly 2 person C:\Users\Nur Salam\Downloads\TIME.png A S S E M B L Y I N S T R U C T I O N S * The estimated assembly time may vary depending on the individual.
- Page 2 Hey,there Now is assembly time! Thank you for purchasing this LuxenHome product. This product has been manufactured with the Deeeeeep breathe..and again..highest standards of safety and quality. Tools ready, Easy peasy! PLEA E READ ALL IN TRU TION...
- Page 3 Furniture components: 1 Top Panel x1 2 Bottom Panel x1 3 Side Panel (L) x1 4 Side Panel (R) x1 5 Center Panel x1 6 Back Support Panel x1 7 Bottom Support Panel x1 Leg Panel x4 Door Panel (L) x1 Door Panel (R) x1 Provided hardware: Furniture Anti-...
- Page 4 Step 1 HARDWARE : A Cam Pin x10 B Cam Lock x2 C Wood Dowel M8x30MM x9 COMPONENTS : 1 Top Panel x1 2 Bottom Panel x1 5 Center Panel x1 6 Back Support Panel x1 7 Bottom Support Panel x1 Installation Hardware: As Shown, Insert the Hardware B(Cam Lock) and Hardware C (Wood dowel)into the hole...
- Page 5 Step 2 HARDWARE : B Cam Lock x8 C Wood Dowel M8x30MM x12 F1 Pvc Handle x2 F2 Screw M4x28MM x2 Hydraulic Hinges 7/8" x4 Screw M3.5x16MM x8 COMPONENTS : 3 Side Panel (L) x1 4 Side Panel (R) x1 Door Panel (L) x1 Door Panel (R) x1 Installation Hardware:...
- Page 6 Step 3 COMPONENTS : 3 Side Panel (L) x1 4 Side Panel (R) x1 7 Bottom Support Panel x1 Joining Part in the Position: As shown, stand the panel on the position to attach together the component No 3 & No 4 with the component No 7 into the hole.
- Page 7 Step 5 COMPONENTS : 5 Center Panel x1 6 Back Support Panel x1 Joining Part in the Position: As shown, stand the panel on the position to attach together the component No 5 with the component No 6 into the hole. Step 6 HARDWARE : J Allen Key x1...
- Page 8 Step 7 Installation Screw: HARDWARE : Please insert the screw (G) E Screw M4x30MM x2 on panel using a allen key. G Screw M6x50MM x2 J Allen Key x1 COMPONENTS : 2 Bottom Panel x1 Installation Screw: Please insert the screw (E) on panel using a screwdriver.
- Page 9 Step 9 HARDWARE : Hydraulic Hinges 7/8" x4 Screw M3.5x16MM x16 COMPONENTS : 8 Door Panel (L) x1 9 Door Panel (R) x1 #Adjust the door by moving it up and down or left and right the tighten the screws #Tighten the screws to prevent sliding doors Step 10...
- Page 10 VOILA! Now enjoy. Warning !!! DO NOT stand on the table as this may damage the product and cause serious bodily injury. Please save this manual for future reference.
- Page 11 If you experience any dissatisfaction, feel free to contact us immediately. Our in-house customer care team will respond ASAP. customerservice@luxenhome.com · Things to do to Get response within 24 hrs expedite the process 909.548.6688...
- Page 12 Happy with our product? Leave us a review Share with others It really help us as a small business Our customers look for REAL stuff Find the product you purchased on · Follow us on IG @luxen.home our website (tip: search by SKU) ·...
