Cyclops Lighting PR-300T User Manual

300 watts tunable white led profile

Advertisement

Quick Links

PR-300T
300 watts Tunable White LED Profile
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-300T and is the answer not in the manual?

Questions and answers

Summary of Contents for Cyclops Lighting PR-300T

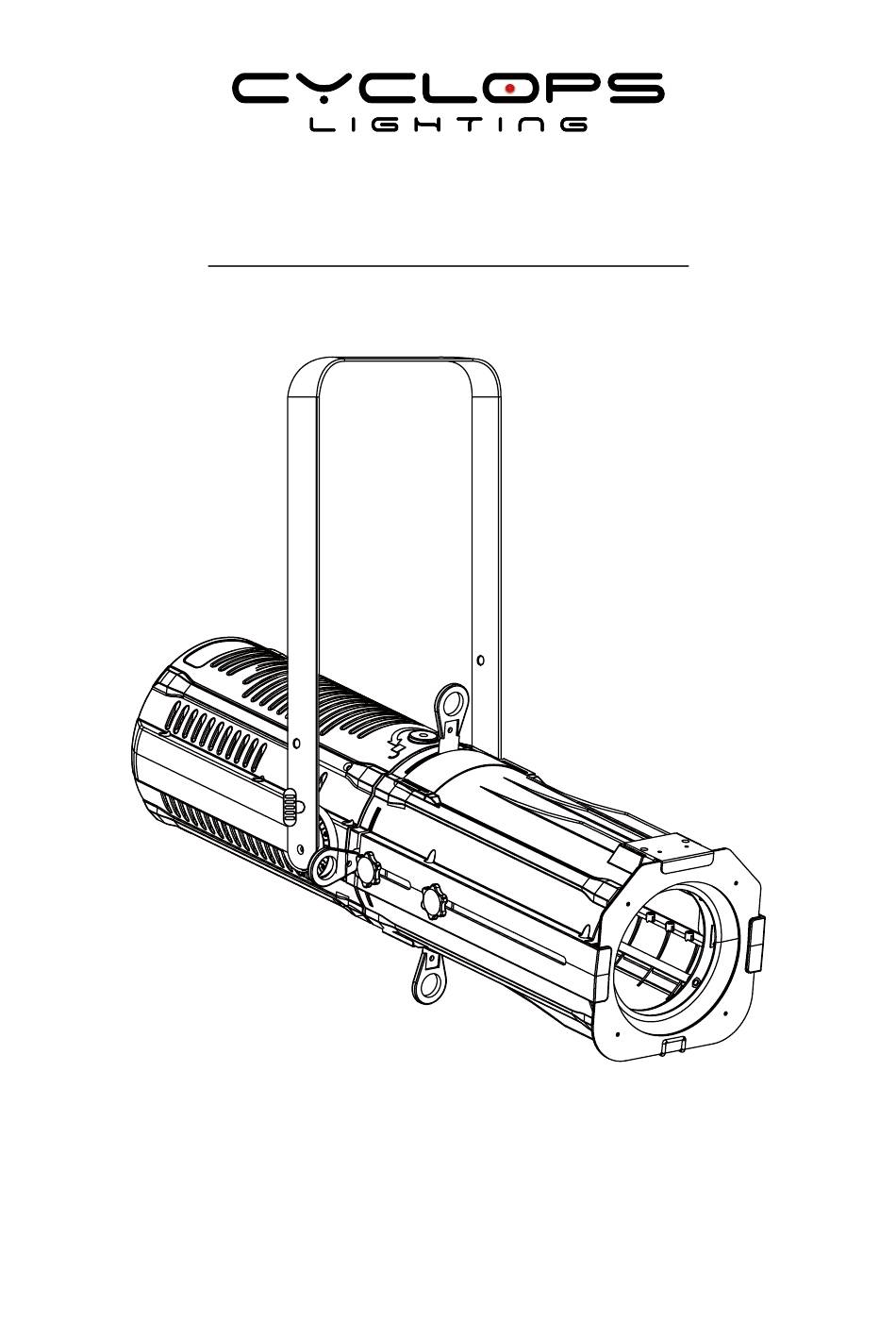

  • Page 1 PR-300T 300 watts Tunable White LED Profile USER MANUAL...
  • Page 2: Table Of Contents

    Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 4 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 5 Read ‘Safety information’ before installing the fixture.................5 Fastening the fixture to a flat surface ......................5 Mounting the fixture on a truss ........................5 Securing with a safety cable .........................5 DMX-512 connection/connection between fixtures ..................6 Power connection ............................6...
  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen PR-300T LED. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation.
  • Page 4: Overview

    Overview Yoke Shutters Gobo holder slot Iris slot Yoke locking knob Color frame Focus knob Zoom knob Color frame clip LCD display Power Handle Rotary and Enter button Power Fuse On/off DMX in DMX out switch 5-pin 5-pin Dmx signal indicator LCD display Power indicator Menu...
  • Page 5: Installation

    Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over.
  • Page 6: Dmx-512 Connection/Connection Between Fixtures

    Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture. Power connection Power Requirements The PR-300T LED zoom luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power supply. V5.0...
  • Page 7: Operation

    Earth(Ground) Operation The PR-300T LED zoom can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes.
  • Page 8: Control Menu

    Advanced settings/calibration(Only qualified technicians should Authorization On/Off perform this function. Inqure your local dealer for password.) Signal Priority DMX signal priority setting Signal Hold On/Off Run if signal cut Advance On/Off RDM function on/off Screen Timeout Display shut off time Never Screen Brightness 25-100% Display brightness...
  • Page 9: Addressing

    In the case of the PR-300T LED zoom, which is 2/5 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control.
  • Page 10: Rotary Knob Function

    Each PR-300T LED has a factory set RDM UID (unique identification number). Note: Before operation, enable RDM function in Advanced settings. Rotary Knob function The knob in the rear panel of the PR-300T LED act as multi function. Including rotary control of dimmer, up/down/enter function function. Dimmer & strobe function: 1.
  • Page 11: Set Dimmer Curves

    Set dimmer curves This function allows you to select preset dimmer curves as well as custom dimmer curves. Menu Menu>Dimme r Curve Mode Standard Mode Stage Architecture Dimmer Advance Theatre To set preset dimmer curves: 1. Press the MENU button to enter the main menu. 2.
  • Page 12: Dmx Protocol

    DMX Protocol 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Color Temperature 000-255: Color temperature 2800K - 6500K 5 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 000-255: 0-100% warm white dimmer 000-255: 0-100% cold white dimmer Color temperature 000-255: Color temperature 2800K - 6500K...
  • Page 13: Troubleshooting

    3. Reinstall the fuseholder cap before reapplying power. Troubleshooting Listed below are a few common problems that you may encounter, with solutions. The fixture does not work, no light • Check the connection of power and main fuse. Be sure the external fuse has not blown. •...
  • Page 14: Technical Specifications

    Technical specifications SOURCE Light source: 300 watts warm white + 300 watts cool white LED Color temperature: 2800K - 6500K LED life expectancy: 50,000 Hrs. CRI: 96, R9 ≥ 90 TLCI: 98 OPTICAL SYSTEM Manual zoom Zoom range: 18° to 38° Optional Fresnel lens adapter 25°-50°...
  • Page 15 V5.0...
  • Page 16 www.cyclopslighting.com V5.0...
