Bristan DUL3 THBSM C D5 Installation Instructions & User Manual

Specifications
Inlet Water Temperature
65°C
25°C
5°C
Maximum Static Pressure: 10.0 bar
Min: 5°C Max: 25°C 65°C Maximum
Tools You'll Need
Flat Head 2.5 mm and 12mm Adjustable Pipe Cutter
Screwdriver Hexagonal Keys Spanner
Prior to Installation
All products manufactured and supplied by Bristan are safe
provided they are installed, used correctly and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and
meet the requirements of the Water Supply (Water Fittings) Regu-
lations 1999 and current by-laws. For full Installation
Requirements & Notes (IRN) please visit wras.co.uk/directory.
A TMV Type 2 Manual has also been supplied with this product.
Please refer to this manual for testing and commissioning guidance
in order to ensure this product still complies to TMV Type 2
standards.
BS 6700 recommends the temperature of stored water should
never exceed 65°C. A stored water temperature of 60°C is
considered sufficient to meet all normal requirements and will
minimise the build up of lime scale in hard water areas.
We recommend isolation valves to be fitted to the inlet water
supplies to ensure ease of future maintenance. Before installing
these taps the water supply must be thoroughly flushed in order
to remove any swarf, solder etc. This product must not be
modified in any way as this will invalidate the guarantee.
If in doubt, contact a registered plumber or your Local Water
Authority or the Secretary of The Institute of Plumbing, address
as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: DUL3 THBSM C (D5)
Dynamic Water Pressure
Min: 0.5 bar Max: 5.0 bar
Centres - Wall Mounted
2.0 3.0 3.0
2.0
4.0
1.0
1.0
4.0
0.2 5.0
0 5.0
Pressure Pressure
BAR
BAR
Centres - Deck Mounted
IMPORTANT
Please review the
TMV Manual supplied
with this product
TMV Type 2 Designation
for testing and
commissioning
guidance.
Pack Contents
x2
x2
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.

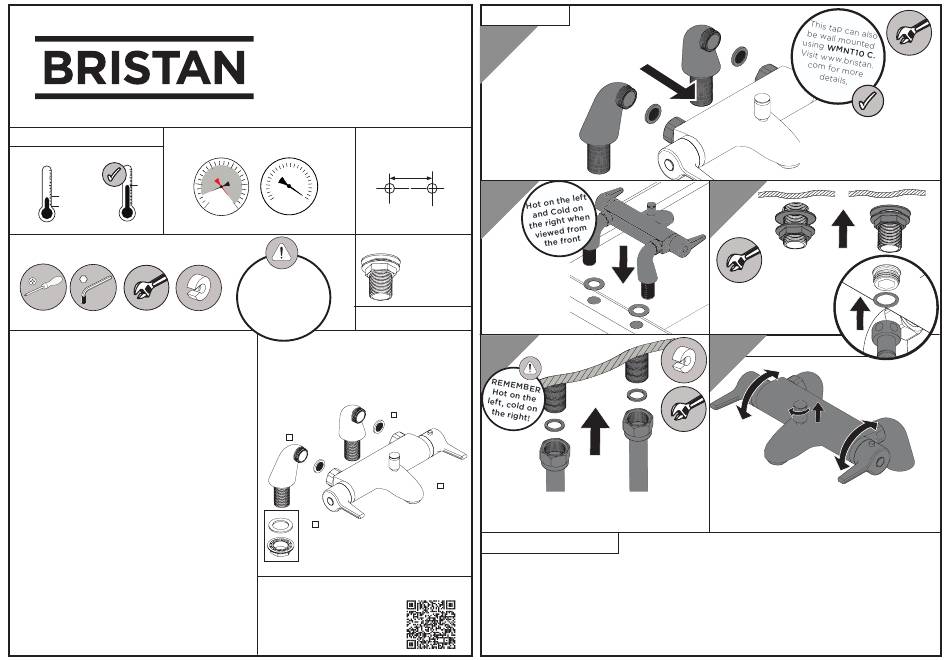

Installation
1
Choose
whether your
tap will be
deck or wall
mounted.
Follow the
Inlet Dimensions WMNT10 C
instructions to
150mm
install if wall
mounted.
2
180mm
Inlet Connections
Feed the tap
legs through the
3/4" BSP
bath holes,
ensuring the
washers are in
place.
HP-T, HP-S
4
x2
Hot
x1
Connect the hot and cold water
supplies to the threaded tails, ensuring
the washers are in place.
General Cleaning
Bristan products are made from premium materials, with hand polishing and electroplated finishes.
Your taps or shower should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished
with a soft cloth. Any residues from soap, toothpaste, shampoos and shower gels can cause blemishes
if not rinsed off straight after use.
Household bleaches and cleaners contain harsh chemicals and may damage the surface finish. Avoid using
abrasive cloths, scouring pads, scrub sponges, steel wool or anything similar. Some surfaces such as nickel and
pewter may be affected by the dye found in some cloths, so it is also important to avoid hanging cloths on spouts.
Refer to leg
packaging stickers
to distinguish hot
and cold legs
3
Secure the taps to
the bath by using the
washer and metal
backnuts below the bath.
Operation
5
Off
Cold
Add your choice of shower kit.
Turn on water supply and check all joints
and connections for leaks.
Your tap is now ready to be commissioned.
If deck mounted, connect
the legs supplied to the
tap body, ensuring the
filter washers are in place.
On
Lift and twist to divert
to shower, reverse to
return to bath fill
Cold
Hot
