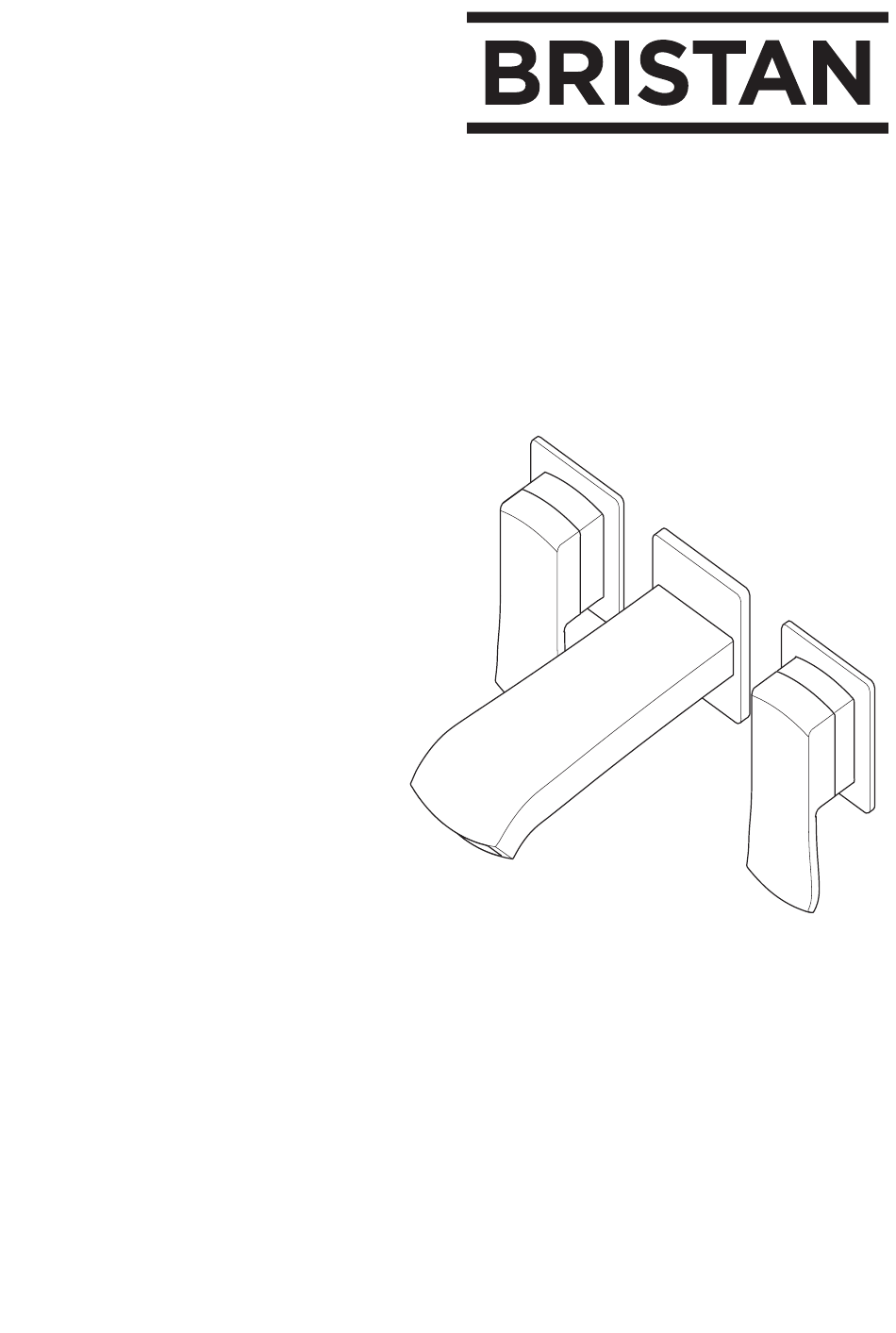

- Page 1 Installation Instructions and User Guide Descent Tap Range Models Covered: DSC 3HBAS C, DSC 3HBF C, DSC WMBAS C, DSC WMBF C, DSC BS C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave...
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan. These fitting instructions have been created to give you all of the information you need for a safe and successful installation, so please read them thoroughly and retain for future reference. If you need any further help, please do not hesitate to give us a call on 0330 026 6273. -
Page 3: Important Safety Information
• All products manufactured and no hidden electrical wires, cables or supplied by Bristan are safe provided water supply pipes. This can be checked they are installed, used correctly with the aid of an electronic detector. -
Page 4: General Information
Minimum distance from cold water Pressures P r o d u c t Inlet tank to outlet Code (metres) DSC 3HBAS C 15mm Compression Threaded Tail DSC 3HBF C 3/4" BSP Threaded Tail DSC WMBAS 15mm Compression Threaded Tail DSC WMBF C... -
Page 5: Dimensions (Mm)
Dimensions 3 Hole Basin Mixer G1 1/4” 3 Hole Bath Filler 1/2" BSP Dimensions are approximate and in millimetres. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 6 Dimensions Cont. Bath Spout Wall Mounted Basin Mixer Dimensions are approximate and in millimetres. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
- Page 7 Dimensions Cont. Wall Mounted Bath Filler Dimensions are approximate and in millimetres. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
-
Page 8: Installation Requirements
Installation Requirements Flexible Connecting Pipes Care must be taken when connecting the flexible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. See below for recommended ways to fit the flexible connecting pipes. Curved Slight 90 °... -
Page 9: Installation
Installation 3 Hole Basin Mixer/ Bath Filler 1. With the backnut, metal and rubber washer fitted to the side body threaded tail, put the side body through the hole in the basin / bath from underneath. 2. Screw the shroud, ensuring the washer is fitted between the shroud and basin / bath, onto the threaded tail and tighten backnut underneath onto the bottom of... - Page 10 Installation Cont. Wall Mounted Basin Mixer and Bath Filler 1. Decide on the final position of the basin mixer/bath filler. Install suitable batons into the wall cavity if required to support the tap body. 2. Plumb the hot and cold water supply pipes to the required position.
- Page 11 Installation Cont. Bath Spout 1. Terminate sufficient pipework inside the wall cavity to a 1/2" BSP female fitting ensuring pipework is fixed in position and rigid so that it is unable to move. 2. Screw the spout connecting tube into the female fitting (using a suit- able thread sealant) ensuring the spout connecting tube is fully tight- ened.
- Page 12 Operation 3 Hole Basin Mixer COLD 3 Hole Bath Filler COLD Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
- Page 13 Operation Wall Mounted Basin COLD Mixer Wall Mounted Bath COLD Filler Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
-
Page 14: Maintenance
Maintenance General Cleaning Bristan products are made from premium materials, with hand polishing and electroplated finishes. Your taps or shower should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. Any residues from soap, toothpaste, shampoos and shower gels can cause blemishes if not rinsed off straight after use. -
Page 15: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or Partially closed isolation valve. Open isolation valve. low flow rate Instantaneous water heater cycles Increase water flow rate or on and off as flow rate or pressure pressure through system to meet is too low. required minimum working pressure of tap. -
Page 16: Guarantee
Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. To start your free guarantee simply scan the QR code and register your product. -
Page 17: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 18 A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
