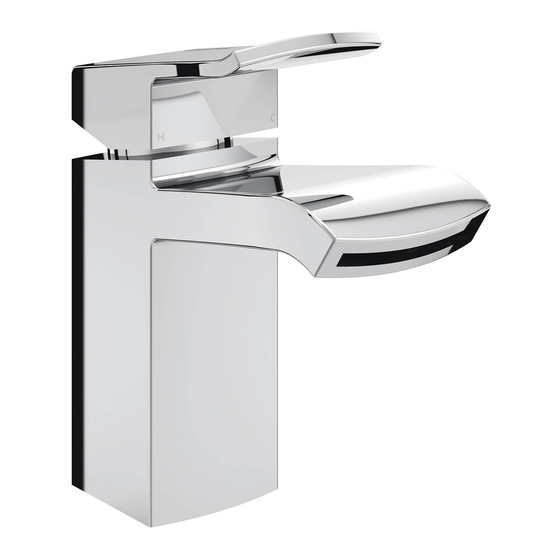

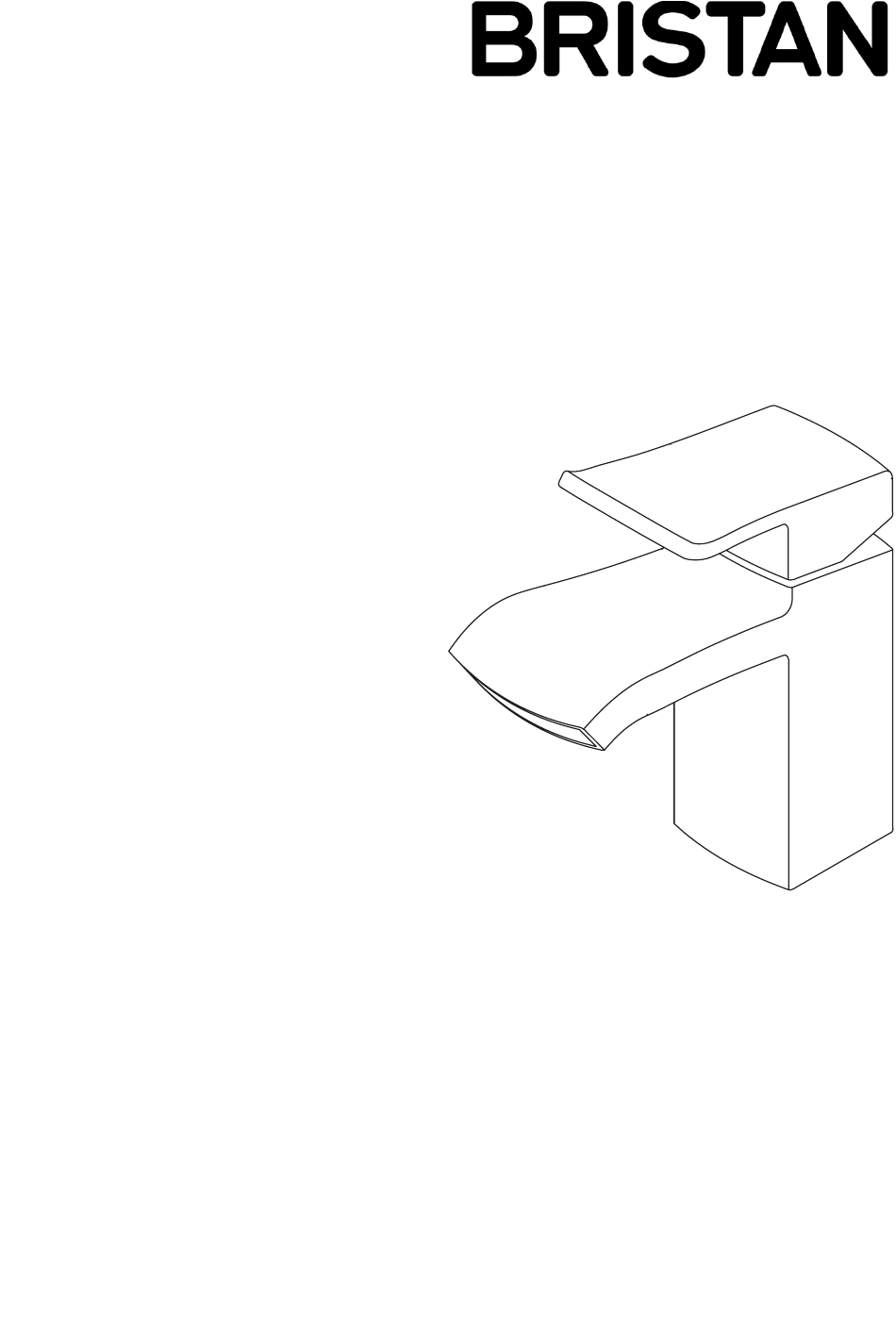

- Page 1 Installation Instructions Descent Tap Range Models covered: DSC BAS C, DSC BF C, DSC BSM C, DSC 1HBF C, DSC FSBSM C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to contact us. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. •... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. Designed to comply with BS EN 200 for combination taps to be used within systems designed to BS 6700. -
Page 5: Dimensions
Dimensions Basin Mixer Basin Mixer Bath Filler Dimensions are approximate and in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. - Page 6 Dimensions Cont. Bath Shower Mixer Bath Shower Mixer 1 Hole Bath Filler Dimensions are approximate and in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
-
Page 7: Dimensions
Dimensions Cont. Floor Standing Bath Shower Mixer Dimensions are approximate and in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 8: Installation Requirements
Installation Requirements Flexible Connecting Pipes Care must be taken when connecting the flexible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. See below for recommended ways to fit the flexible connecting pipes. Slight 90°... -
Page 9: Installation
Installation Basin Mixer / 1 Hole Bath Filler 1. Screw the flexi tails into the bottom of the body by hand only (DO NOT OVERTIGHTEN). 2. Feed the flexi tails through the hole in the basin / bath, ensuring the washer is fitted between the tap body and fixing surface to ensure a water tight seal. -
Page 10: Bath Filler & Bath Shower Mixer
Installation Cont. Bath Filler and Bath Shower Mixer 1. Fit the tap body to the bath ensuring that the washers are fitted between the body and the bath to create a water tight seal. 2. Secure the body to the bath using the washers and metal backnut. -
Page 11: Floor Standing Bath Shower Mixer
Installation Cont. Floor Standing Bath Shower Mixer 1. Mark the fixing holes of the base onto the floor surface at the required position, also marking a central hole for the flexi tails to go through. Note: If the bath shower mixer is to be fitted onto wooden floorboards, the boards must be reinforced with additional wooden batons due to the height and weight of the bath shower... -
Page 12: Maintenance
Maintenance General Cleaning Your product has a high quality finish and should be treated with care to preserve the Grub Screw visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way to clean Handle your mixer is to wipe with a soft damp cloth. 2.5 mm Stains can be removed using washing up hexagonal key... -
Page 13: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low Partially closed isolation valve. Open isolation valve. flow rate Instantaneous water heater Increase water flow rate or cycles on and off as flow rate or pressure through system to pressure is too low. meet required minimum working pressure of tap. -
Page 14: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. -
Page 15: Guarantee
‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care... - Page 16 DSC BOOK 1 Part Numbersa: Issue: D1 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd. Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
