SPX POWER TEAM FK159 Operating Instructions

SPX Corporation
5885 11th Street
Rockford, IL 61109-3699 USA
Internet Address:
http://www.powerteam.com

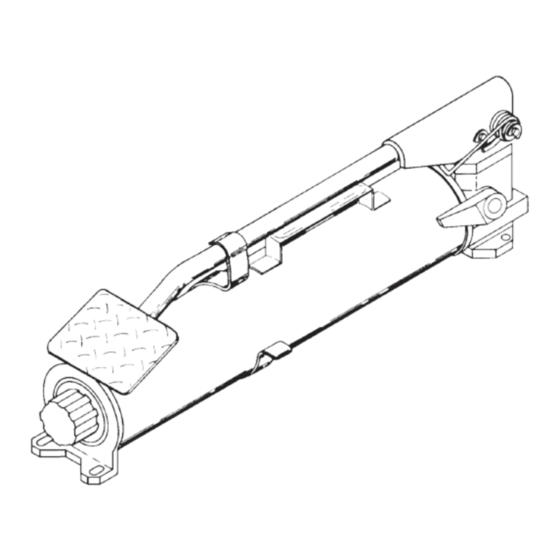

Converts Hydraulic Hand Operated Pumps to Foot Pump Operation

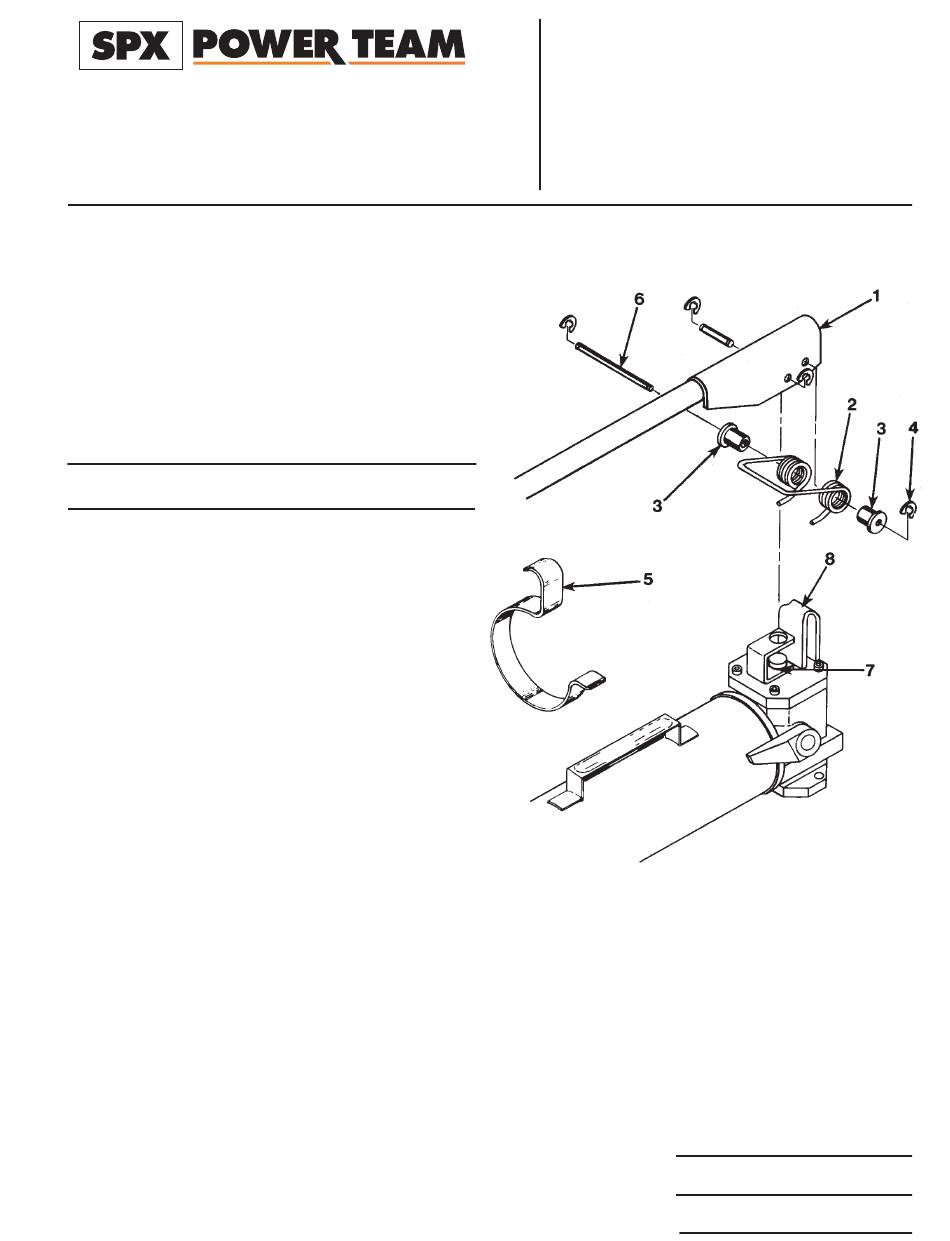

PARTS LIST
Item Part No.
No. No. Req'd
1 53109OR9 1
2 47374 1
3 214884 2
4 211743 4
5 308588 1
6 214883 1
7 15092 1
8 58031WH2 1
DISASSEMBLY of the HAND PUMP HANDLE
1. Clean the exterior of the pump before beginning the disassembly procedure. With the pump on a clean work
surface, continue with the following disassembly steps.
IMPORTANT: Do not damage the piston or allow any contamination to enter the pump since this could cause
pump failure.
2. Remove one of the retaining rings on the front pin of the handle assembly. Slide the pin out.
3. Remove both retaining rings from the other pin and slide it out. Remove the handle.
4. Slide the piston clip off the piston.
5. Remove the cap screws from the pump body cap and lift the cap off the pump body.
Litho in USA
Tech. Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
CONVERSION KIT
Description
Foot Lever Assembly
Spring
Spring Retainer
Retaining Ring
Handle Holder
Pin
(3-7/16" Lg.)
Rod Wiper
Pump Body Cap
®
Operating Instructions for:
Form No. 102567
FK159
Sheet No. 1 of 1
Issue Date: Rev. 5-1-90
