KOBE RA92 SQB6 Series Service Manuallines

Download this manual

KOBE Range Hoods

"So Quiet ... You Won't Believe It's On!"

RA92 SQB6-XX Parts Location and Replacement

This basic guide is to show the parts location of the IN28 SQP-XX and how to remove or install certain parts.

To see more detailed guidelines, please visit: KOBE Service and Repair

For 30" model: RA9230SQB6-XX

For 36" model: RA9236SQB6-XX

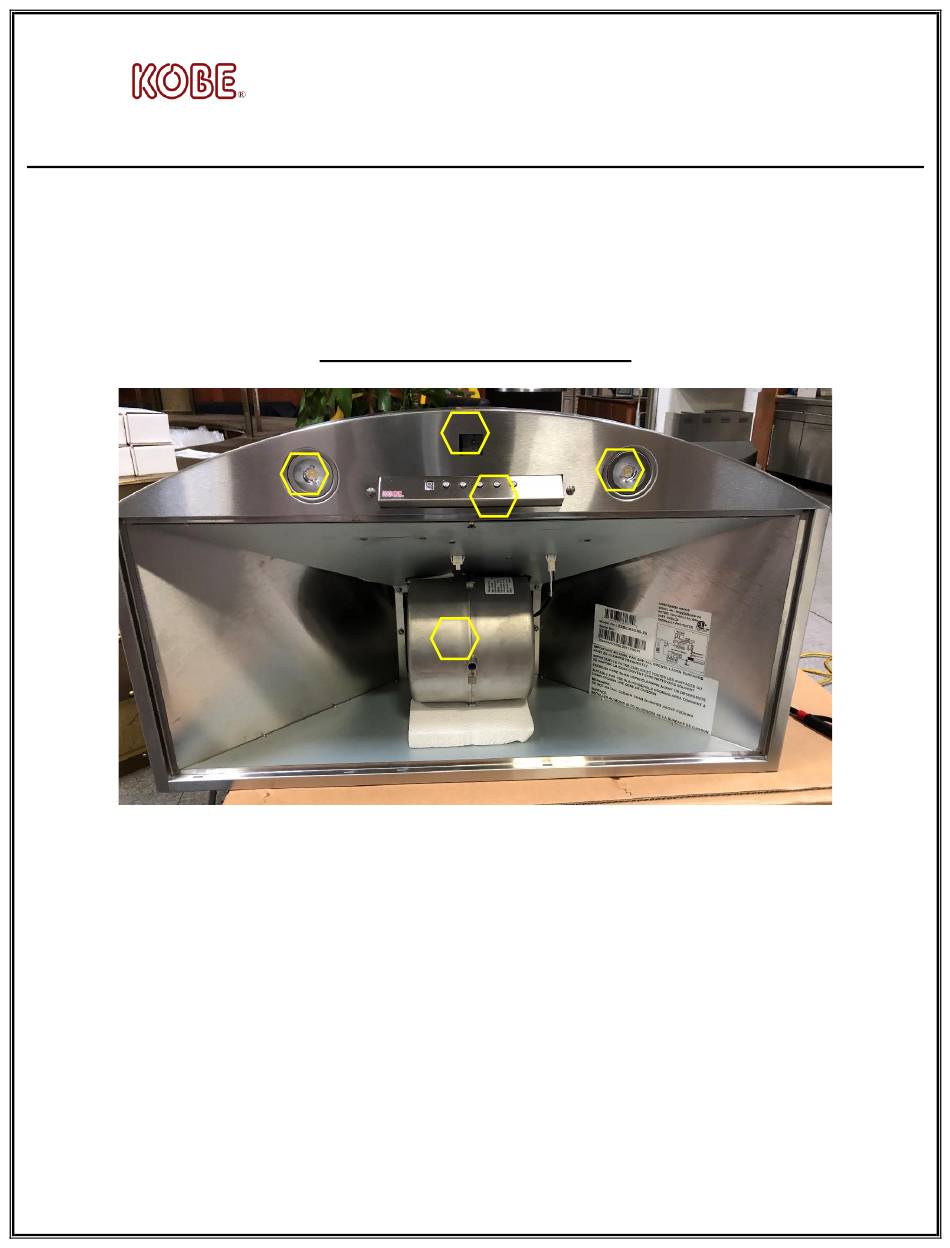

Overall Snapshot of RA92 SQB6-XX

1. Blower System (Manual Part #8 – See "Parts List" page on manual)

2. Control Unit (Manual Part #9 – See "Parts List" page on manual)

3. LED Light (3W) (Manual Part #5 – See "Parts List" page on manual)

4. UV Sensor (Manual Part #12 – See "Parts List" page on manual)

Page 1 of 5

Version 20200501

Need help?

Do you have a question about the RA92 SQB6 Series and is the answer not in the manual?

Page 1 RA92 SQB6-XX Parts Location and Replacement This basic guide is to show the parts location of the IN28 SQP-XX and how to remove or install certain parts. To see more detailed guidelines, please visit: KOBE Service and Repair For 30” model: RA9230SQB6-XX For 36”...
Page 2 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Removing the Capacitor Support Figure 1 Figure 2 Figure 3 Figure 4 5. Capacitor Support (Manual Part #7 – See “Parts List” page on manual) Page 2 of 5...
Page 3 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Accessing the Capacitor, Motor Transformer and Processor Board Figure 1 Figure 2 Figure 3 Figure 4 6. Motor Transformer (Manual Part #11 – See “Parts List” page on manual) 7.
Page 4 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Accessing the UV Sensor and Control Unit NOTE: Unscrew all the screws then you can access the parts. *Note: Sample image only. May not be actual model. Figure 1...
Page 5 KOBE Range Hoods “So Quiet … You Won’t Believe It’s On!” Removing the Blower System Warning: 1. Loosen the screw first with a hand tool screw driver. 2. Place a support or hold the blower before removing it. Figure 1...
