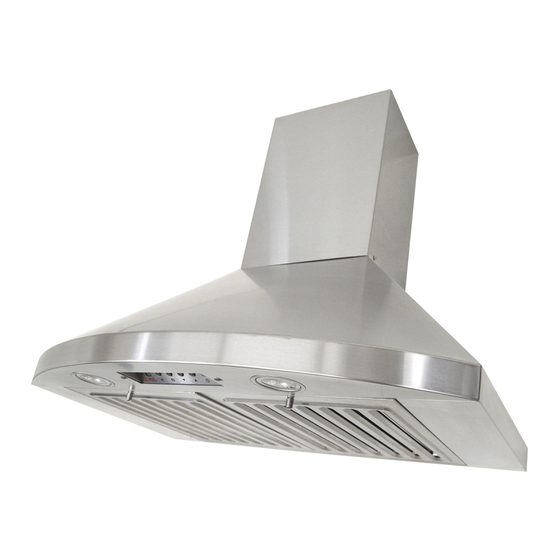

KOBE RA9230SQB-1 Installation Instructions And Operation Manual
Brand range hood
Hide thumbs
Also See for RA9230SQB-1:
- Installation instructions and operation manual (21 pages) ,
- Parts location and replacement (5 pages)
Related Manuals for KOBE RA9230SQB-1
Summary of Contents for KOBE RA9230SQB-1
- Page 1 KOBE Brand Range Hood Model No. RA9230SQB-1 (30”) / RA9236SQB-1 (36”) RA9430SQB-1 (30”) / RA9436SQB-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 2. Have your original invoice as proof of purchase and product serial number ready. 3. Contact your merchant for product replacement due to shipping damages, cosmetic damages or defects. 4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to info@koberangehoods.com NO RETURN, NO REFUND, NO EXCHANGE IF: 1. PRODUCT HAS BEEN INSTALLED ...
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ..........................5 OPERATING INSTRUCTIONS ..................... 8 MAINTENANCE .......................... 10 SPECIFICATIONS ........................11 MEASUREMENTS & DIAGRAMS ....................12 PARTS LIST ..........................15 CIRCUIT DIAGRAM ........................ -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{F} 6” Round Plastic Collar {G} Duct Cover Mounting Bracket {H} Screws package * Pre-installed * Pre-installed Knob attached to baffle filter 3/16” x 3/8” (6 PCS) FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. - Page 7 {F} 6” Round Plastic Collar {G} Duct Cover Mounting Bracket {H} Screws package * Pre-installed * Pre-installed Knob attached to baffle filter 3/16” x 3/8” (6 PCS) FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.
-
Page 8: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top to Hood Bottom (Minimum 26"... - Page 9 Figure 1 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow the hood to perform more efficiently.
- Page 10 Figure 4 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. Power Control Press Power Control to turn On/Off the range hood. Speed Control The fan will start on Speed #3. Press button to decrease the speed level.Press button to increase the speed level. - Page 12 appear in the LED Display. The icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and hold button until icon no longer appears in the LED Display. NOTE: Pressing button while ECO Mode is active will activate the regular fan function and the speed will be displayed in LED Display.
-
Page 13: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 14: Specifications
LIGHTS 3-Level Lighting 3-watt LED light x 2 (RA9230SQB-1) 29-3/4” x 20-1/2” x 12-3/16” HOOD DIMENSION (W x D x H) (RA9236SQB-1) 35-1/4” x 20-1/2” x 12-3/16” (RA9430SQB-1) 29-3/4” x 20-1/2” x 12-3/16”... -
Page 15: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. MODEL NO.: RA9230SQB-1 (30”) RA9236SQB-1 (36”) - Page 16 ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. MODEL NO.: RA9430SQB-1 (30”) RA9436SQB-1 (36”)
-
Page 18: Parts List
PARTS LIST MODEL NO.: RA9230SQB-1 (30”) RA9236SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. Hood-Mounting Bracket L1-0221-0092 Duct Cover-Mounting Bracket L1-0203-0092 Duct Cover 12-09200-61 6” Round Plastic Exhaust L1-0505-0003 RA9230SQB-1 10-9230B Hood Casing RA9236SQB-1 10-9236B LED Light (3W) L1-0403-0301 Control Panel... - Page 19 MODEL NO.: RA9430SQB-1 (30”) RA9436SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. Hood-Mounting Bracket L1-0221-0092 Duct Cover-Mounting Bracket L1-0203-0092 Duct Cover 12-09200-61 6” Round Plastic Exhaust L1-0505-0003 RA9430SQB-1 10-9430B Hood Casing RA9436SQB-1 10-9436B LED Light (3W) L1-0403-0301 Control Panel L1-0404-6001-A Control Panel Support L1-0207-1630 Blower System L1-0302-0120-802RO...
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RA9230SQB-1 (30”) RA9236SQB-1 (36”) RA9430SQB-1 (30”) RA9436SQB-1 (36”) -
Page 21: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 22: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 23 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER (USA ONLY)
-
Page 24: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center (USA ONLY) Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com For service in Canada and to report a problem, please... - Page 25 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
