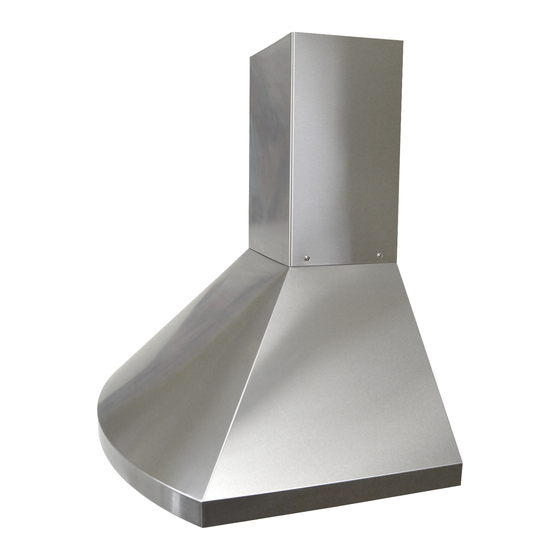

KOBE Brand Range Hood
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
RA92 Series
Model No.
RA9230SQB-1 (30")
RA9236SQB-1 (36")
RA9230SQB-DC30-1 (30")
RA9236SQB-DC30-1 (36")
RA9230SQB-DC46-1 (30")
RA9236SQB-DC46-1 (36")
RA94 Series
Model No.
RA9430SQB-1 (30")
RA9436SQB-1 (36")
RA9430SQB-DC30-1 (30")
RA9436SQB-DC30-1 (36")
RA9430SQB-DC46-1 (30")
RA9436SQB-DC46-1 (36")

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA9230SQB-DC30-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KOBE RA9230SQB-DC30-1

Summary of Contents for KOBE RA9230SQB-DC30-1

  • Page 1 KOBE Brand Range Hood RA92 Series Model No. RA9230SQB-1 (30”) RA9236SQB-1 (36”) RA9230SQB-DC30-1 (30”) RA9236SQB-DC30-1 (36”) RA9230SQB-DC46-1 (30”) RA9236SQB-DC46-1 (36”) RA94 Series Model No. RA9430SQB-1 (30”) RA9436SQB-1 (36”) RA9430SQB-DC30-1 (30”) RA9436SQB-DC30-1 (36”) RA9430SQB-DC46-1 (30”) RA9436SQB-DC46-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
