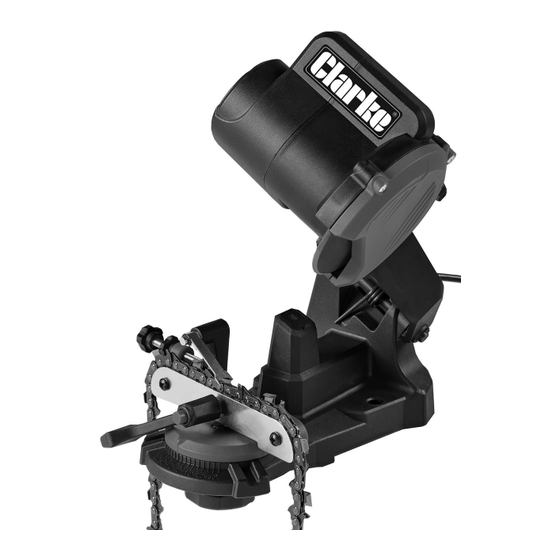

- Page 1 WARNING: Read these instructions before using the machine ELECTRIC CHAINSAW SHARPENER MODEL NO: ECSS3 PART NO: 3402081 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL1124...
-
Page 2: Environmental Protection
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR ELECTRIC CHAINSAW SHARPENER. WORK AREA 1. Keep work area clean and well lit. Cluttered and dark areas invite accidents. 2. - Page 4 5. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. POWER TOOL USE AND CARE 1. DO NOT force the power tool. Use the correct power tool for your application.
-
Page 5: Additional Safety Instructions For Chainsaw Sharpeners
ADDITIONAL SAFETY INSTRUCTIONS FOR CHAINSAW SHARPENERS 1. WARNING: Sharp edges on blade/chain. 2. Remember that the wheel continues to rotate after the tool is switched off. 3. ALWAYS wear safety eye protection when using the sharpener. 4. The sharpener is designed for sharpening the majority of common chainsaw chains. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230V AC 50Hz. - Page 7 OVERVIEW No Description No Description Motor Casing Locking Handle Grinding Wheel Locking Wheel Chain Stop Chainsaw Blade (Not Included) Sliding Guide Depth Lock Stop Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 8: Operation
ASSEMBLY WARNING: MAKE SURE THE SHARPENER IS NOT CONNECTED TO THE MAINS POWER SUPPLY DURING SETUP. WARNING: NEVER OPERATE THE TOOL WITHOUT THE GRINDING WHEEL COVER IN PLACE. 1. Insert the chain holder assembly into the base as shown and secure from below using the Locking Wheel supplied. - Page 9 3. Lift up the Chain Stop and place the chain in the Sliding Guide, as shown. 4. Lower the Chain Stop so that it is positioned on the tooth (blade) you want to start with, using the adjustment knob and locking nut to position the Chain Stop as required.
- Page 10 10. Lock the chain in the Sliding Guide by turning the Handle. NOTE: The Handle should be situated so that you can easily release and tighten it. You will need to release it each time you move to the next link, and tighten it to sharpen each link.
- Page 11 SHARPENING WARNING: WHEN SHARPENING, ALWAYS WEAR SAFETY GOGGLES AND MAKE SURE THE IMMEDIATE AREA IS CLEAR OF BYSTANDERS. 1. Plug in the sharpener and press the press the start button to the ‘ON’ position. 2. Slowly lower the grinding wheel towards the chain. NOTE: If you notice slight errors in your settings, turn off the sharpener and unplug it before you make any adjustments.
-
Page 12: Operating Hints
OPERATING HINTS • Before you sharpen the chainsaw chain check it for damage, such as:- bent or abraded chain links.- broken cutting teeth, loose rivets or broken rivet heads.If any damage is found, replace the entire chain. • A sharp chainsaw produces wood chips and pulls itself into the timber being cut. - Page 13 • During sharpening occasionally check that the cutting-angle is set correctly, as this setting may go out of adjustment due to vibration. • Make sure that all teeth are sharpened as evenly as possible. Only sharpen the teeth, never sharpen the chain links.
-
Page 14: Cleaning And Maintenance
A dull sound indicates a crack or break. 3. Replace the grinding wheel when it grinds down to a diameter of 3 inches/7.62cm. • Replacement discs are available from your CLARKE dealer: part number (3402079). - Page 15 4. Unscrew the Grinder Lock Cap that holds the Grinding Wheel in place and remove the Grinding Wheel. 5. Install the new wheel on the Grinding Wheel Base, making sure it fits correctly. NOTE: DO NOT use a grinding wheel if it is chipped, cracked or worn.
-
Page 16: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 17: Parts List
PARTS LIST No Description No Description Screw (x6) 22 Chain Stop Motor Cover 23 Washer Motor 24 Locking Wheel Bolt Power Cable 25 Chainsaw Frame Cable Holding Plate 26 Screw Grinding Wheel Base 27 Sliding Guide (x2) Switch Plate 28 Spacing Pad (x2) On/Off Switch 29 Nut Lock Stop Screw... - Page 18 DECLARATION OF CONFORMITY - UKCA Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 19: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
