Summary of Contents for Kogan KAWTLWASH6A

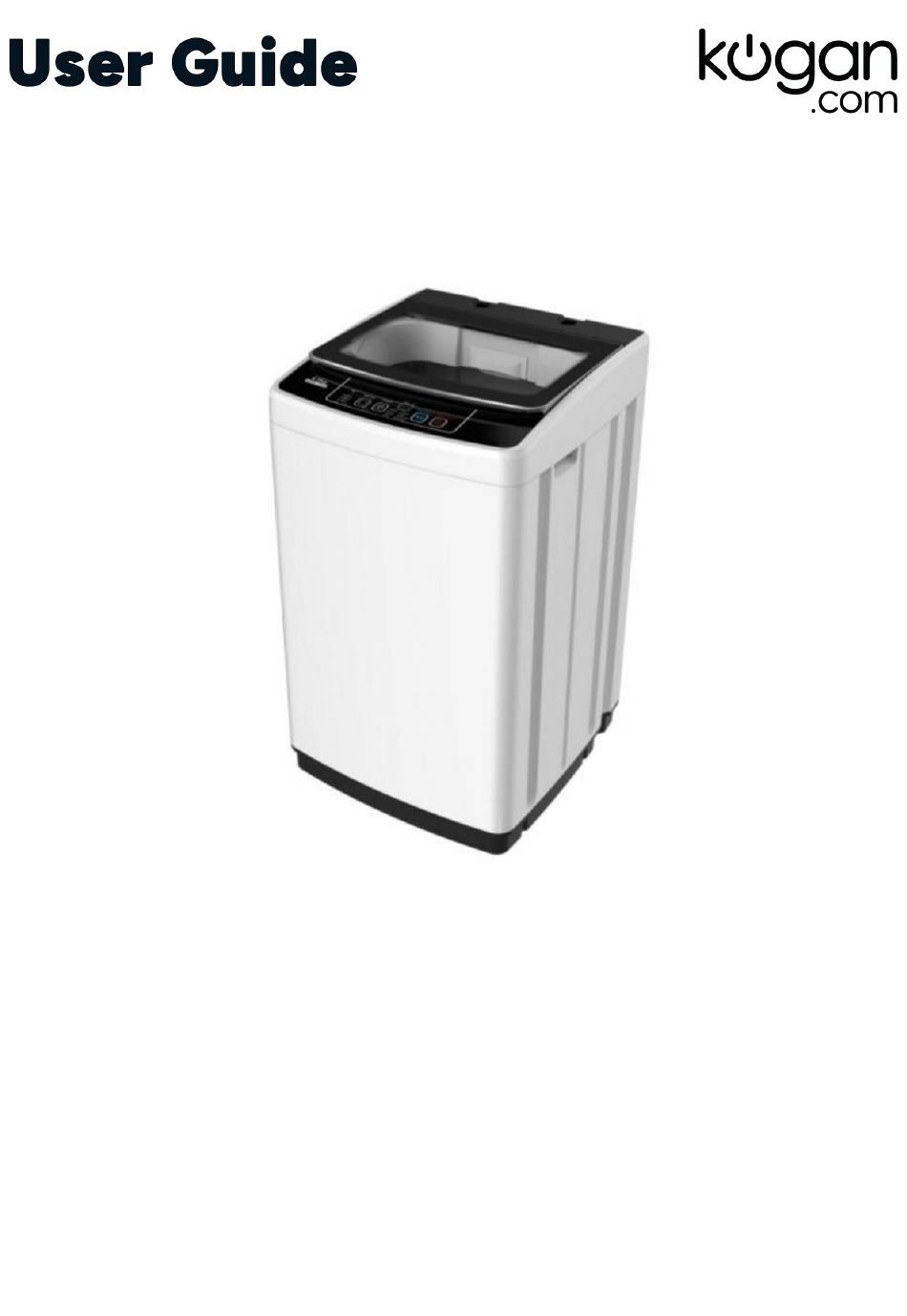

- Page 1 6kg Top Load Washing Machine KAWTLWASH6A...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
Do not bend, stretch, twist, or overload the power cord. • If the power cord or plug is damaged, cease use immediately and contact help.Kogan.com for support. • Avoid installing the washing machine in bathrooms or damp areas. Do not wash the machine with water or place wet clothes on the control panel. -
Page 4: Components
Components • Washing machine • Inlet pipe (x1 hot, x1 cold) • Bottom lid board • Drain cover (optional) • Drainpipe (for upper drain models, this is already assembled) • Self-tapping screws (x2) • User guide Overview Detergent drawer Lint filter Spin tub Pulsator Control panel... - Page 5 Inlet valve Rear control board Side panel Rear board Base Power cord...
-
Page 6: Installation
Installation Remove the Packaging • Pull the carton straight up and over the top of the washing machine. • Lift the washing machine off the foam cushion. Carton Foam cushion • Operating the washing machine whilst on the foam cushion is strictly forbidden. •... - Page 7 Installation Notes • Place the washing machine in a dry area, away from direct sunlight. • Ensure there is a floor drain where the washing machine will be installed, with unobstructed water flow. The floor drain should be flush with or slightly lower than the washing machine's placement to prevent damage from potential water leakage.
- Page 8 Install the Bottom Plate Locate the bottom cover, which is placed between the top of the washing machine box and the protective foam. Remove it during unpacking. Carefully lay the washing machine on its side on protective fabric, ensuring the housing is not damaged.
- Page 9 Connecting the Hose to the Washing Machine: Before connecting, check that the sealing gasket in the water inlet nut is properly in place. Attach the water inlet nut to the inlet valve joint. Tighten the water inlet nut securely. Sealing gasket Inlet valve connection Caution •...
- Page 10 Installing the Drain Hose • Install the hose clamp onto the drain hose. • Attach the drain hose to the drain outlet on the rear of the washing machine and use the hose clamp to secure it firmly in place. •...
-
Page 11: Operation
Operation Display: Shows the selected program and the remaining time of the program. Water level button: • Adjust the water level based on the amount of laundry by pressing the Water Level button. • For Smart, Heavy, Gentle, and Soak programs, water levels can be adjusted. Default settings: washing water level = 3, rinsing water level = 4. - Page 12 Start/Pause Button: • After turning on the power, press the Start/Pause button to begin or pause the washing cycle. • To resume operation after pausing, press the Start/Pause button again. Power button: • Press the POWER button to turn the washing machine on or off. •...
- Page 13 Laundry Preparation: • Check clothing labels for special washing requirements and ensure items are suitable for machine washing. • Remove all hard objects such as keys, pins, coins, hairpins, or sand to prevent damage. • Wash greasy or heavily soiled clothing separately. •...
-
Page 14: Cleaning & Care
Cleaning & Care Clean the Filter a. Press and hold the hook to pull the filter out. b. Detach the filter from the filter cover. c. Turn the filter bag inside out and rinse thoroughly with water to remove lint and debris. -
Page 15: Specifications
Specifications Power 220~240V/50Hz Rated washing / dehydration volume (kg) Rated input power (W) Water pressure (MPa) 0.03~0.85 Waterproof class IPX4 Washing: 62dB(A) Noise Spinning: 72dB(A) Product Dimensions (mm) 545x555x900 Packing Dimensions (mm) 575x605x955 Product net weight (kg) 29.5 Product gross weight (kg) 33.5 Troubleshooting Common Faults... - Page 16 Problem Display Possible Cause Solution The power plug is Plug in power plug not plugged in No display and press power and power switch switch is not pressed. The outlet has no Consult a licensed No display electricity or the electrician.
- Page 17 A failure in the water level sensor, Contact Water Level such as an open help.Kogan.com Sensor Error circuit or short for support. circuit, triggers an alarm. The memory chip Contact Memory cannot read or help.Kogan.com Chip Failure write data.
-
Page 18: Notes
Notes... - Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
