Summary of Contents for Kogan KAMFWASH80A

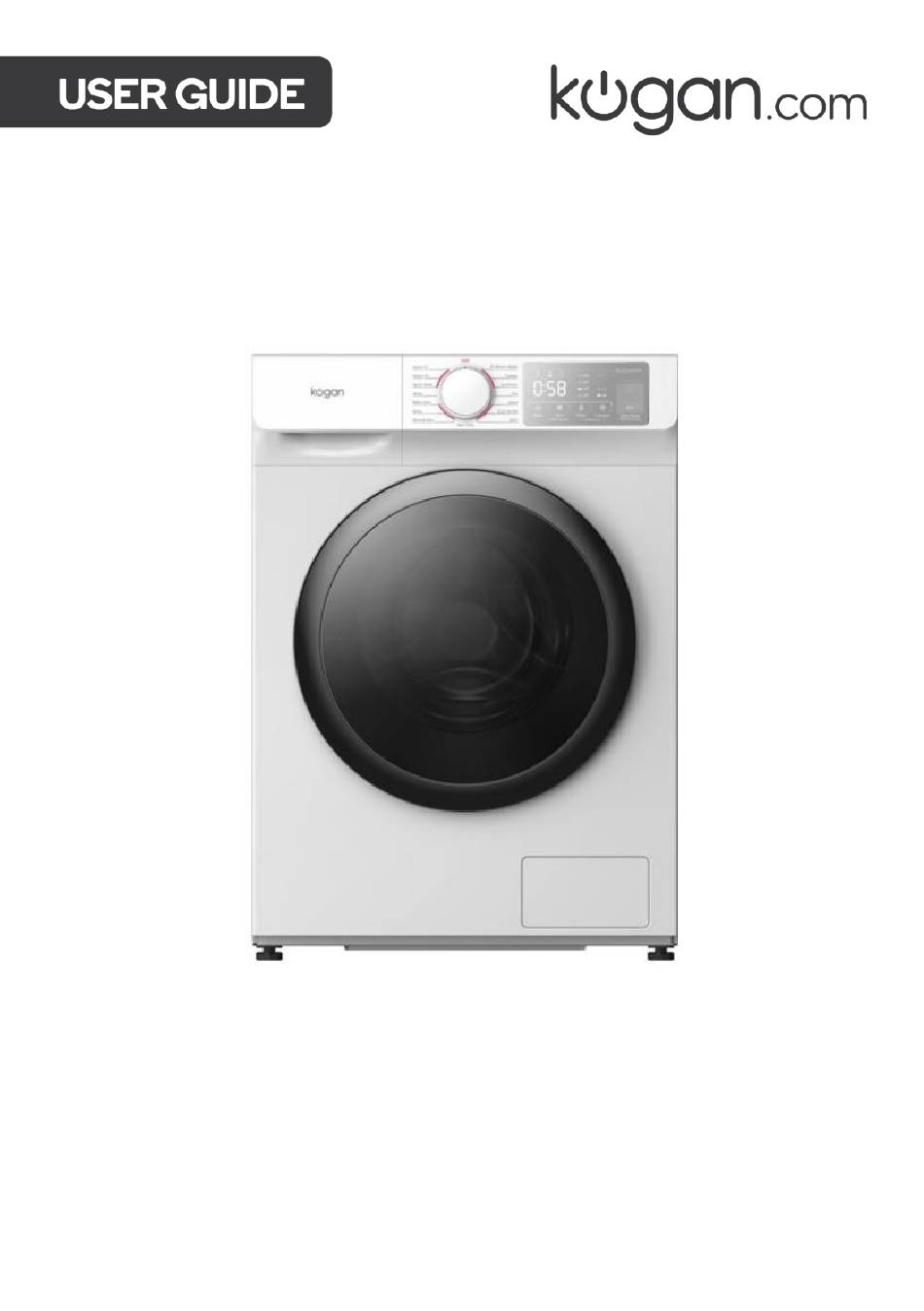

- Page 1 8KG FRONT LOAD BLDC INVERTER WASHING MACHINE KAMFWASH80A...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation Operation Cleaning & Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
WARNING: • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. Do not attempt to repair the power cord yourself. • If the washing machine is damaged, cease use immediately and contact help.Kogan.com for support. - Page 4 • In the instance of water leakage or water splashes, let the machine dry in the open air. • The washing machine must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer. •...
- Page 5 Electrical Connection • Ensure the power cable is not trapped by the machine. • The power plug must be inserted into an earthed three-prong electrical outlet. Check carefully and make sure that your outlet is properly and reliably earthed. • If you are unsure or have questions about installing this washing machine, contact a qualified trade professional.
- Page 6 • Do not close the door with excessive force. If it is difficult to close the door, check if the clothes are properly inserted and distributed. • Always unplug the power cord and close the water tap before performing cleaning and maintenance.
-
Page 7: Components
COMPONENTS Hole Cover (x4) Water Supply Hose User Guide Acoustic Sponge... -
Page 8: Overview
OVERVIEW Top cover Water supply hose Control panel Power cord Detergent dispenser Drum Door Drain pump filter Drain hose Note: This image is for illustrative purposes only. Refer to the product as standard. -
Page 9: Installation
INSTALLATION Placement WARNING: • Stability is important to prevent the washing machine from moving. • Ensure the washing machine is not standing on the power cord. • The washing machine must be installed in a location with the following characteristics: A steady, dry and level surface. - Page 10 Unpacking the Washing Machine WARNING: • Packaging materials (e.g. film, Styrofoam) can be dangerous for children. • Keep all packaging away from children to avoid the risk of suffocation. Remove the cardboard box and Styrofoam packaging. Lift the washing machine and remove the base packaging. Ensure the small foam triangle is removed with the base packaging.
- Page 11 Remove the Transit Bolts WARNING: • The transport bolts must be removed before using the washing machine. • Keep the transit bolts in a safe place, as they will be required to move the washing machine in the future. Loosen the 4 Remove the bolts, Close the holes using transport bolts with a...
- Page 12 Level the Washing Machine WARNING: The lock nuts on all four feet must be screwed tightly against the housing. • Check if the feet are in the factory position. The lock nuts should be tightly fastened to the machine body and the feet should be locked tightly on the lock nuts. •...
- Page 13 Connect the Water Supply Hose WARNING: Do not kink, crush, modify or sever the water supply hose. Screw tap: Tighten the hose onto the tap but rotating the lock ring anticlockwise.
- Page 14 Tap adapter: Loosen the clamp nut and 4 screws. Place the clamp nut over the tap. Tighten the clamp and the screws. Clamp Nut Press the slide bushing down and Connection is complete. attach the hose to the tap adapter. Slide Bushing...
- Page 15 Quick connect tap: Press the slide bushing down and attach the hose to the tap. Slide Bushing Connect the water supply hose to the washing machine: Connect the other end of the water supply hose to the inlet valve at the rear of the washing machine and fasten it tightly clockwise.
- Page 16 Drain Hose WARNING: • Do not kink the drain hose. • Position drain hose according to the instructions below to prevent water leakage. There are three ways to use the drain hose: Place the drain hose directly into a floor drain. Floor Drain Place the drain hose into the laundry sink.
- Page 17 Connect the drain hose to the drainpipe of the laundry sink. Acoustic Sponge Install the acoustic sponge to reduce noise and vibration caused by the washing machine. Place a blanket on the floor and gently lay the washing machine on top. Stick the 2 longer sponges to the front and rear edges of the machine and the 2 short sponges to the side edges.
-
Page 18: Operation
OPERATION • Ensure the machine is installed properly before use. • Run a complete cycle without clothes before washing clothes for the first time. Sort Clothes Read the following recommendations carefully to avoid common issues with washing machines. Failure to follow these instructions may result in damage to your clothing and machine. - Page 19 Before Washing Plug the power plug Open the tap. Load the into the electrical washing outlet. machine. Close the door. Add detergent. Washing Select a cycle. Optional: Select Press Start/Pause additional to start the cycle. functions.
- Page 20 After Washing display. Detergent Drawer Prewash detergent Main wash detergent Softener Release button Note: Prewash detergent is only required when the Prewash cycle is selected. It is not required when running a main wash. Add detergent: Pull out the detergent drawer. cycles.
- Page 21 Mandatory Optional Cycle Cotton Synthetic Jeans Spin Only Rinse & Spin ECO Wash 20°C Bulky Baby Care Wool Sport Wear Steam Wash Notes: • Add water to the detergent compartment to dilute thick fabric softener or bleach to prevent overflowing and blockages forming. •...
- Page 22 Control Panel • Turn the dial to the desired cycle to turn the washing machine on. On/Off • Turn the Start/Pause Press to start/pause the cycle. Select additional functions. The option will illuminate when Options selected. Cycle Turn the dial to select a cycle according to your item type. The display shows current cycle information and estimated Display time remaining, or an information code when a problem...
- Page 23 Delay Select a cycle. repeatedly to cycle through the available delay options, from 0 to 24 hours, in one-hour increments. Choose the Cycle Set a Time Start Cancel the Delay • repeatedly • If the cycle has started, turn the dial to select a different cycle. Prewash •...
- Page 24 Child Lock • The child lock deactivates the function of all buttons. • Press Temp and Function simultaneously for 3 seconds until the buzzer beeps to turn the child lock on/off. • When the child lock is on: The child lock indicator will illuminate. •...
- Page 25 Reload When the drum is still rolling, there is a large amount of water, or the temperature inside the drum is high, the door cannot be opened. The drum will stop rolling and the door will unlock. Open the door, reload the clothes and close the door again. Reload the clothes.
- Page 26 Cycles Cycle Description Hard-wearing and heat-resistant textiles made of cotton or Cotton linen. • Wash synthetic clothing, such as shirts, coats, blended fabrics. Synthetic • Reduce the detergent quantity when washing knitted textiles. Baby Care Wash baby clothes with improved rinse performance. Rapid 45' Washing few and not very dirty clothes quickly.
- Page 27 Washing Cycles Default Temp Cycle Load (kg) Default Time (°C) Steam Wash 1:26 Cotton 1:28 Synthetic 1:25 0:58 Jeans 1:40 ECO Wash 0:59 ECO Wash* 6:32 20℃ 1:01 Spin Only 0:12 Rinse & Spin 0:20 Bulky 1:48 Baby Care 2:01 Wool 1:07 Sport Wear...
- Page 28 Additional Functions Cycle Additional Functions Cycle Additional Functions Steam Wash Rinse & Spin Cotton Bulky Synthetic Baby Care Wool Jeans Sport Wear ECO Wash 20°C Spin Only Drum Clean...
-
Page 29: Cleaning & Care
CLEANING & CARE WARNING: Close the tap and unplug the power cord before performing cleaning and maintenance. Cleaning the Surface • Proper maintenance can extend the working life of the washing machine. • The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 30 Cleaning the Inlet Filter The inlet filter must be cleaned if there is insufficient water when the tap is opened. Washing the filter in the tap: Close the tap. Remove the water supply hose from the tap. Clean the filter. Reconnect the water supply hose.
- Page 31 Cleaning the Detergent Drawer Step 1: Step 2: • Open the detergent drawer and press Clean the detergent drawer under water. the release button inside the softener compartment. • Lift the clip upwards the remove the softener cover. • Remove the detergent drawer. Step 3: Step 4: Clean inside the crevices with an old...
- Page 32 Cleaning The Drain Pump Filter WARNING: • Unplug the washing machine before cleaning to avoid electric shock. • Never remove the pump cover during a wash cycle. Always wait until the washing machine has finished the cycle and is empty. •...
- Page 33 Transport Before moving the washing machine: • Unplug the washing machine and close the water tap. • Check if the door and the detergent dispenser are closed properly. • Remove the water supply hose and the drain hose. • Let the water drain completely from the appliance. •...
-
Page 34: Specifications
SPECIFICATIONS Power Supply 220-240V~, 50Hz MAX. Current Standard Water Pressure 0.05MPa~1MPa Washing Capacity 8.0kg Weight 60kg Rated Power 1950W Dimensions 595mm 850mm 475mm 533mm 480mm 969mm 152mm... -
Page 35: Troubleshooting
TROUBLESHOOTING If the following solutions are unsuccessful, contact help.Kogan.com for support. Problem Possible Cause Solution • Check if clothes are trapped in the door seal. The cycle will not The door is not closed • Closet the door and start. - Page 36 • Check if the inlet filter is blocked. Overtime water draining. Check if the drain hose is blocked. Water overflow. Restart the washing machine. • Restart the washing machine. • Contact help.Kogan.com for Other. support...
-
Page 37: Notes
NOTES... - Page 40 Need more information?
