Rugged Ridge OMIX-ADA ALOY 11232.23 Manual

Led fog light brackets

Advertisement

Quick Links

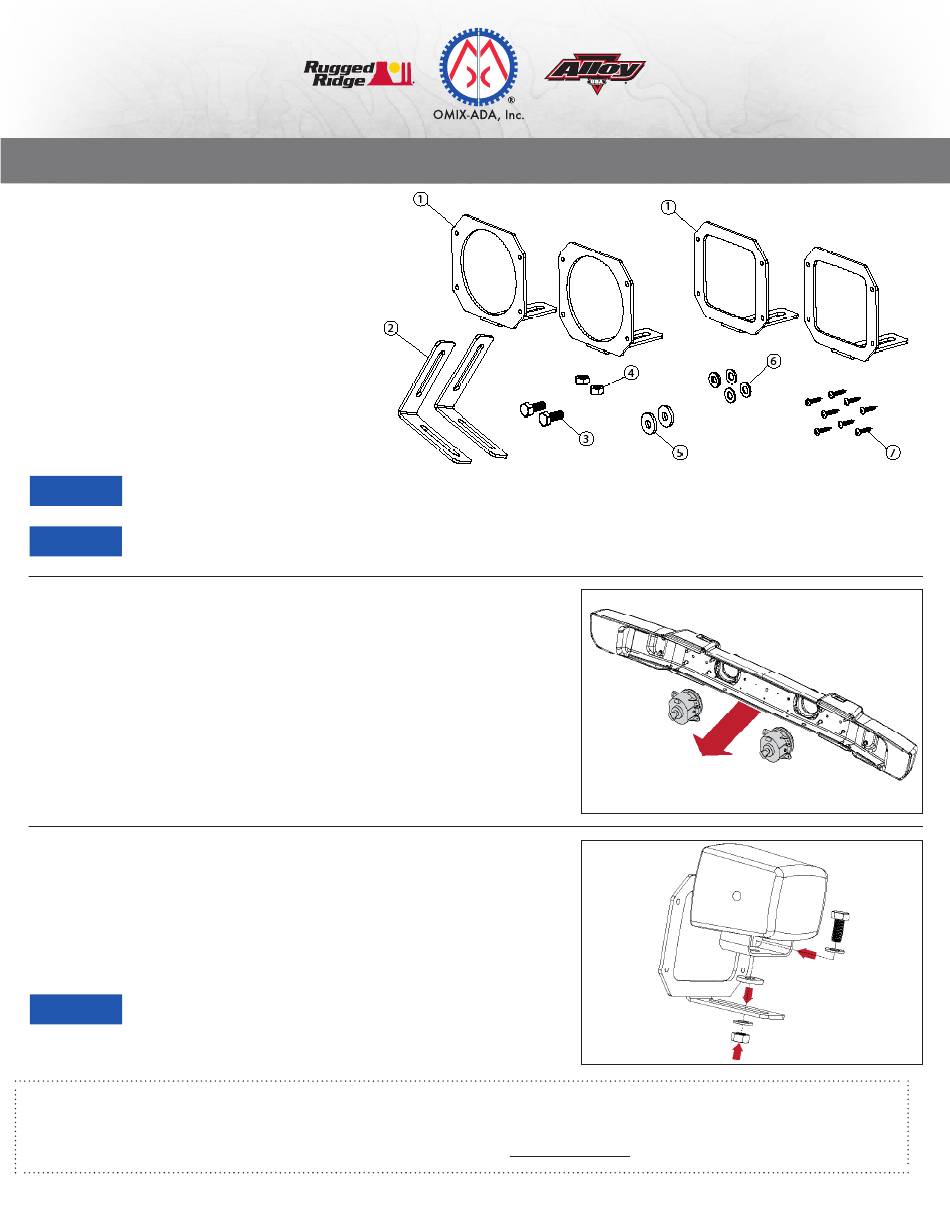

Contents:
1. LED Fog Light Bracket
2. L-Bracket
3. Hex Bolt
4. Locknut
5. Spacer
6. Flat washer
7. Tapping Screw
NOTICE
LED Fog Light Brackets are compatible with most LED designs; however, we recommend using Rugged
!
Ridge LEDs for best results.
NOTICE
Minor relocation of vacuum pump may be required for installation on 2012 and newer Jeep Wrangler
!
vehicles.
1. Remove Bumper (Refer to the factory manual or Instructions for
your aftermarket Bumper)
2. Remove fog lights from bumper.
For use with Rugged Ridge LEDs
3. Mount LED to LED Fog Light Bracket using supplied hardware and
Spacer.
4. Slide LED forward to set desired depth for bumper installation and
tighten.
NOTICE
Spacer is required for mounting Rugged Ridge LEDs and
may not be required with other brands. Use spacer as needed.
460 Horizon Drive #400 | Suwanee, GA 30024 USA | www.omix-ada.com | Copyright © 2013 Omix-Ada
LED FOG LIGHT BRACKETS
(2)
(2)
(2)
(2)
(2)
(4)
(8)
OMIX-ADA
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
TECHNICAL SUPPORT
®
11232.23 : LED Fog Light Brackets - Round
11232.24 : LED Fog Light Brackets - Square
®
, Inc.
Page 1/2

Advertisement

loading
Need help?

Need help?

Do you have a question about the OMIX-ADA ALOY 11232.23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rugged Ridge OMIX-ADA ALOY 11232.23

  • Page 1 3. Mount LED to LED Fog Light Bracket using supplied hardware and Spacer. 4. Slide LED forward to set desired depth for bumper installation and tighten. NOTICE Spacer is required for mounting Rugged Ridge LEDs and may not be required with other brands. Use spacer as needed. OMIX-ADA TECHNICAL SUPPORT ®...
  • Page 2 11232.23 : LED Fog Light Brackets - Round 11232.24 : LED Fog Light Brackets - Square LED FOG LIGHT BRACKETS For use with non-Rugged Ridge LEDs 5. Mount LED to L-Bracket 6. Mount L-Bracket to LED Fog Light Bracket. 7. Adjust LED to desired position for bumper installation and tighten.

This manual is also suitable for:

Omix-ada aloy 11232.24
