11540.41(pass.) or .44 (dr.)

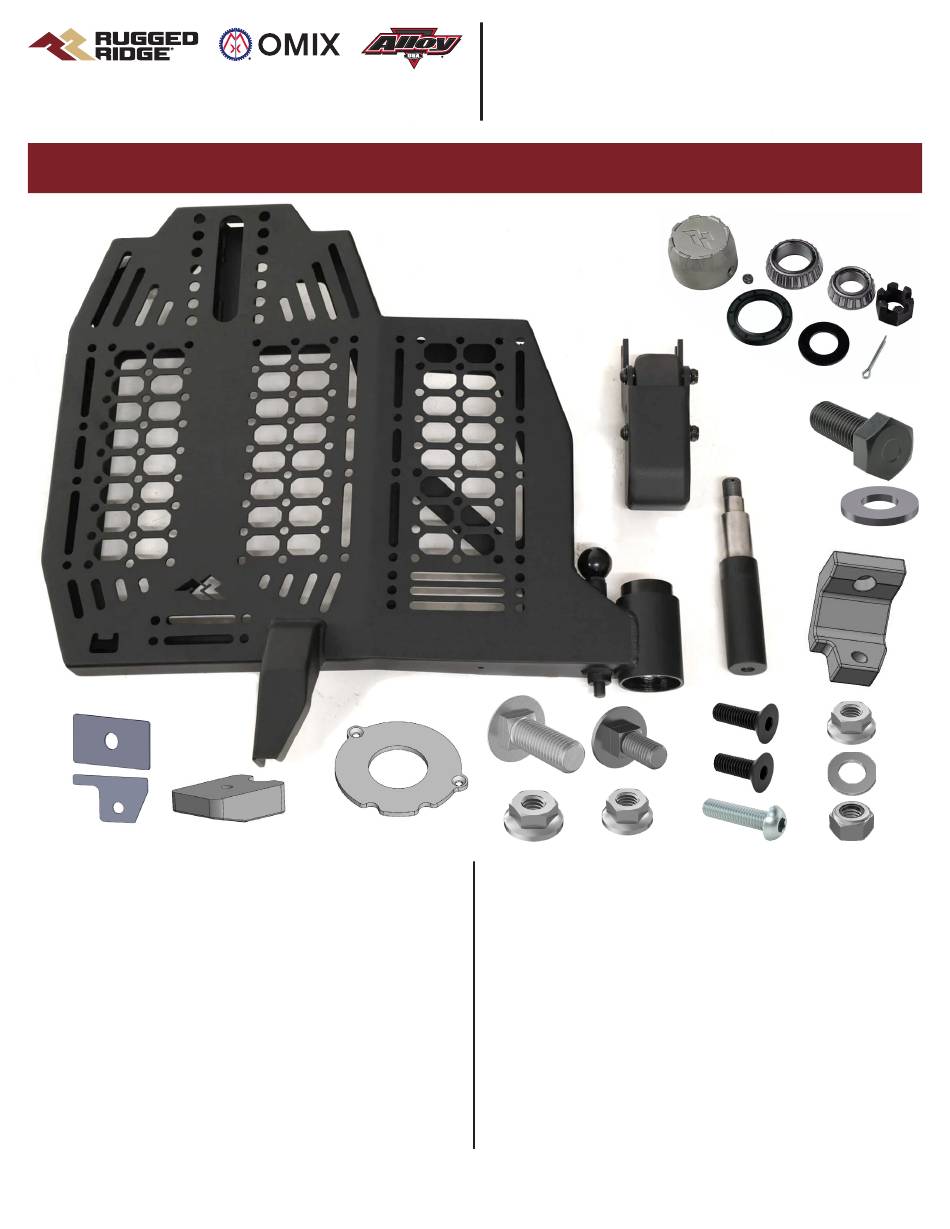

Components and Hardware:
1.
15.
16.
Components and Hardware:
1. Swingout ....................................................................(1)
2. Latch ..........................................................................(1)
3. Spindle .......................................................................(1)
4. Spindle Cap ...............................................................(1)
5. Flat Head Screw (spindle cap)..................................(1)
6. Large Hub Bearing ....................................................(1)
7. Small Hub Bearing ....................................................(1)
8. Castle Nut (spindle) ..................................................(1)
9. Hub Seal ....................................................................(1)
10. Spindle Washer .........................................................(1)
11. Cotter Pin ...................................................................(1)
12. M18 x 2.50mm 50mm, Hex Head Bolt .....................(1)
13. M18 Flat Washer .......................................................(1)
14. Rubber Bumper .........................................................(1)
Page 1
17.
OMIX-ADA® TECHNICAL SUPPORT
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com

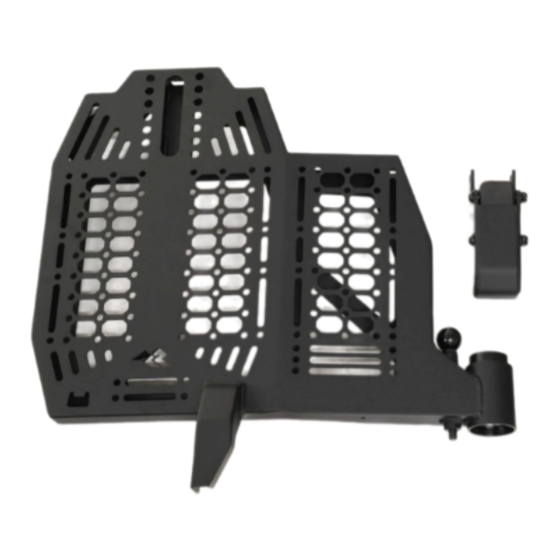

WingMate,
Swingout,
Jeep JT Gladiator
2.
20.
18.
19.
21.
15. Bumper Shim .............................................................(4)
16. Guide Wedge .............................................................(1)
17. Indent Stop Plate .......................................................(1)
18. M10 x 1.50mm 25mm, Carriage Bolt .......................(1)
19. M10 x 1.50mm, Serrated Flange Nut .......................(1)
20. M8 x 1.25mm, 20mm, Carriage Bolt .........................(1)
21. M8 x 1.25mm, Serrated Flange Nut .........................(1)
22. M6 x 1.00mm 20mm, Flat Head Bolt........................(2)
23. M6 x 1.00mm 16mm, Flat Head Bolt........................(1)
24. M6 x 1.00mm 25mm, Button Head Bolt ...................(2)
25. M6 x 1.00mm, Serrated Flange Nut .........................(2)
26. M6 Flat Washer .........................................................(2)
27. M6 x 1.00mm, Nylon-lock Nut ..................................(2)
4.
6.
5.
9.
10.
12.
13.
3.
14.
22.
25.
23.
26.
24.
27.
REV_1.0 01/01/2024
7.
8.
11.
Advertisement
Related Manuals for Rugged Ridge Omix WingMate 11540.41
Summary of Contents for Rugged Ridge Omix WingMate 11540.41
- Page 1 WingMate, Swingout, Jeep JT Gladiator 11540.41(pass.) or .44 (dr.) Components and Hardware: Components and Hardware: 1. Swingout ..............(1) 15. Bumper Shim .............(4) 2. Latch ................(1) 16. Guide Wedge .............(1) 3. Spindle ...............(1) 17. Indent Stop Plate ............(1) 4. Spindle Cap ...............(1) 18.
- Page 2 11540.41(pass.) or .44 (dr.) WingMate, Swingout, Jeep JT STEP 1: To begin involves packing the bearings that will be installed in the swingout. Utilize a bearing packing tool for this task to ensure comprehensive grease coverage. If a bearing packing tool is not available, manual packing by hand is a viable alternative.
- Page 3 11540.41(pass.) or .44 (dr.) WingMate, Swingout, Jeep JT STEP 4: Proceed to install the Indent Stop Plate (#17) onto the top face of the bumper. Utilize the two M6 Flat Head Bolts (#22), inserting them into the counter sink holes of the Indent Stop Plate (#17) through the corresponding holes on either side of the large spindle hole in the bumper.
- Page 4 11540.41(pass.) or .44 (dr.) WingMate, Swingout, Jeep JT STEP 7: Apply a thin coat of bearing grease to the spindle for lubrication. Subsequently, position the Swingout (#1) on the spindle by gently lowering it over. Exercise caution to avoid hitting the lower seal, ensuring a careful and damage-free placement.
- Page 5 11540.41(pass.) or .44 (dr.) WingMate, Swingout, Jeep JT STEP 10: Install the Spindle Cap (#4) to the top of the spindle hub. Utilize the Flat Head Screw (#5) to attach the cap securely. To enhance water resistance, you can apply a bead of RTV black silicone to the base of the cap where it meets with the hub.
- Page 6 11540.41(pass.) or .44 (dr.) WingMate, Swingout, Jeep JT STEP 13: Inspect the inside of the Latch (#2). Ensure that the upper spring is loose, while the lower spring should be hooked to the latch. If both springs are attached, release the top spring.
- Page 7 11540.41(pass.) or .44 (dr.) WingMate, Swingout, Jeep JT STEP 16: Rotate the swingout into the closed position, and gently rotate the latch to the closed position as well. Press the latch up to meet with the guide wedge. Using a deep socket and wrench, tighten the M8 carriage bolt nut to hold the latch in the desired position.
