Rugged Ridge OMIX-ADA Alloy 11594.03 Manual

460 HORIZON DR. SUITE 100 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
(3) Passenger/Right

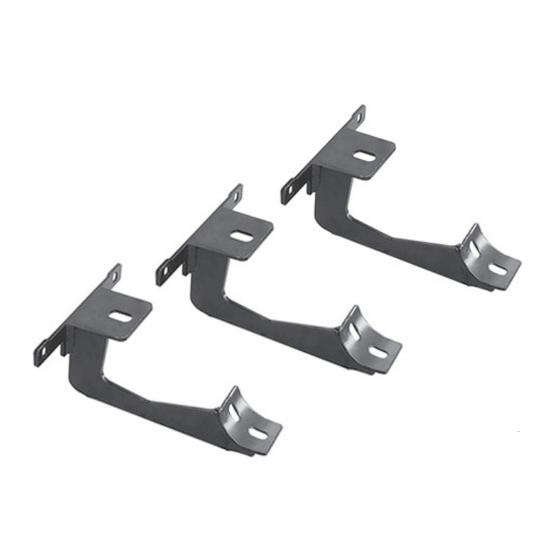

Mounting Brackets
Passenger/Right Sidebar
1. Driver/Left Sidebar
2. Passenger/Right Sidebar
3. Driver/Left Mounting Bracket
4. Passenger/Right Mounting Bracket
5. 12-1.75mm x 40mm Bolt Plates
6. 12mm Plastic Retainers
7. 12mm x 24mm x 2.5mm Flat Washers
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
'11-16 Jeep Grand Cherokee Side Bars
(6) 12mm x 40mm
Bolt Plates
Components
(1)
(1)
(3)
(3)
(6)
(6)
(6)
OMIX-ADA TECHNICAL SUPPORT
®
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2016 Omix-Ada
Driver/Left Sidebar
8. 12mm Serrated Flange Nuts
9. 8-1.25mm x 25mm Hex Bolts
10. 8mm x 24mm x 2mm Flat Washers
11. 8mm Lock Washers
12. 6-1mm x 25mm Hex Bolts
13. 6mm x18mm x 1.6mm Flat Washers
14. 6mm Lock Nuts
, Inc.
®
Page 1/3
Part #11594.03
(3) Driver/Left
Mounting Brackets
(6)
(12)
(12)
(12)
(12)
(24)
(12)
