Contents:
1.

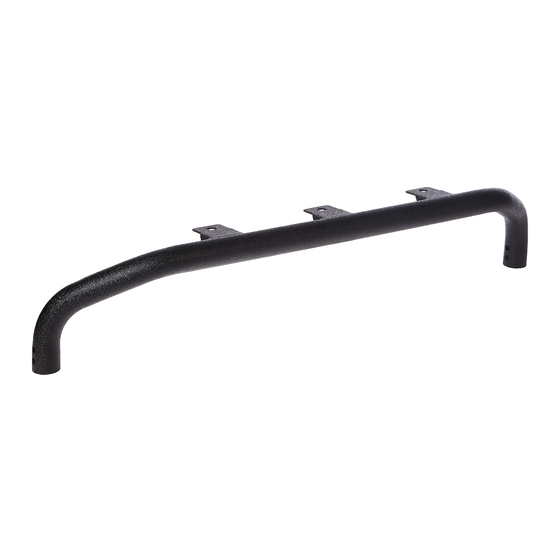

Light Bar (1)
2.
Left Side Bracket (1)
3.
Right Side Bracket (1)
4.
M12 Hex Bolt (4)
5.
M12 Flat Washer (4)
6.
M12 Flange Nut (4)
8.
M8 button Head Bolts (4)
9.
M8 Flat Washer (8)
10.
M8 Lock Nut (4)
11.
Hex Key (not shown) (1)
1. Locate frame mounting holes behind the bumper on the left side of the vehicle. Slide one M12 ange nut
behind the lower frame hole to attach the Left Side Bracket as shown. Use this nut to secure the bottom of the
Left Side Bracket in position with a M12 Hex Bolt and M12 Flat Washer. Place a M12 Flange Nut on the supplied
Allen Key. Lower the nut behind the upper frame mount hole. Insert a M12 Hex Bolt and M12 Flat Washer to
secure the top of the bracket. Do not fully tighten the bolts at this time. Repeat for Right Side Bracket.
2. Place light bar over the tube sleeves of both the Left and Right Side Brackets. Adjust the brackets
as necessary to accommodate the tube.
07-10 JK Wrangler Light Bar
Page 1 of 2
11232.20,11138.20
