Rugged Ridge 11549.42 Manual

Venator front bumper, jl patent pending
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com
2
4
8

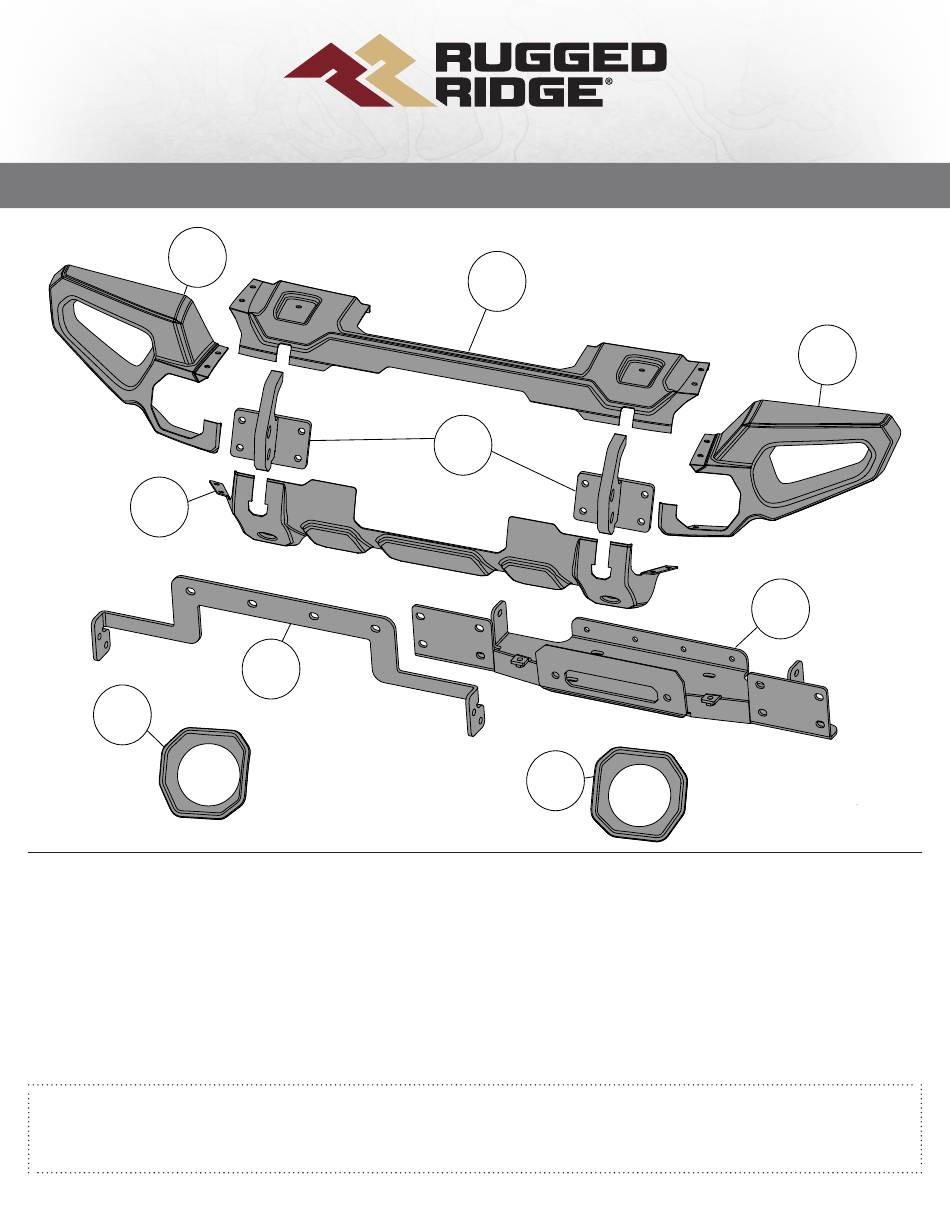

1. Bumper Shell - Center Top
2. Bumper Shell - Right End
3. Bumper Shell - Left End
4. Bumper Shell - Center Bottom
5. Tow Hook
Venator Front Bumper, JL
7
OMIX-ADA
PHONE: M-F 8am - 5pm EST 1-800-449-6649
FOR WARRANTY OR TECH CONCERNS EMAIL: webmaster@omixsupport.com
Copyright © 2019 Omix-Ada
Patent Pending
1
5
9

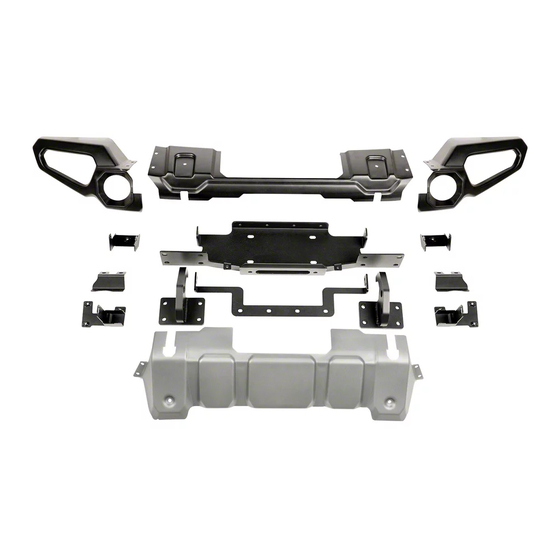

Components

(1)
6. Winch Tray
(1)
7. Winch Tray Support Bracket
(1)
8. Plastic Insert - Right
(1)
9. Plastic Insert - Left
(1)
TECHNICAL SUPPORT
®
, Inc.
®
Page 1/8
Part # 11549.42
3
6
(1)
(1)
(1)
(1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11549.42 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rugged Ridge 11549.42

Summary of Contents for Rugged Ridge 11549.42

  • Page 1 Page 1/8 Part # 11549.42 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending Components 1. Bumper Shell - Center Top 6. Winch Tray 2. Bumper Shell - Right End 7.
  • Page 2 Page 2/8 Part # 11549.41 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending Components 1. Top Mounting Bracket - Right 5. Fog Light Bracket - Right 2.
  • Page 3 Page 3/8 Part # 11549.41 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending M12 Hex Head Bolt (8) M10 Hex Head Bolt (18) M4 Button Head Bolt (4) M10 Button Head Bolt (14) M4 Lock Nut (4) Inner Nut Plate (2)
  • Page 4 Page 4/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 1. Disconnect OE Fog Lights from vehicle and remove factory Bumper, Lower Air Dam, plastic Cover Panel, and Tow Hooks.
  • Page 5 Page 5/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 4. Position Tow Hooks on Winch Tray. Attach Tow Hooks using supplied M10 Hardware sing center four holes.
  • Page 6 Page 6/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 8. Using supplied M10 Hex Head Bolt, Washer, and Nut Plates, loosely attach Bottom Mounting Bracket to Frame Horn.
  • Page 7 Page 7/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 10. Loosely attach Bumper Shell - Center Bottom to Bottom Mounting Brackets using supplied M10 Button Head Bolts and Plastic Washers.
  • Page 8 Page 8/8 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 844-270-0593 | www.Omix-ADA.com Venator Front Bumper, JL Patent Pending 13. Snap into place Plastic Inserts. 14. Check alignemnt of Bumper Shell components. 15. Tighten all hardware, while taking care to ensure all components stay in alignment.
