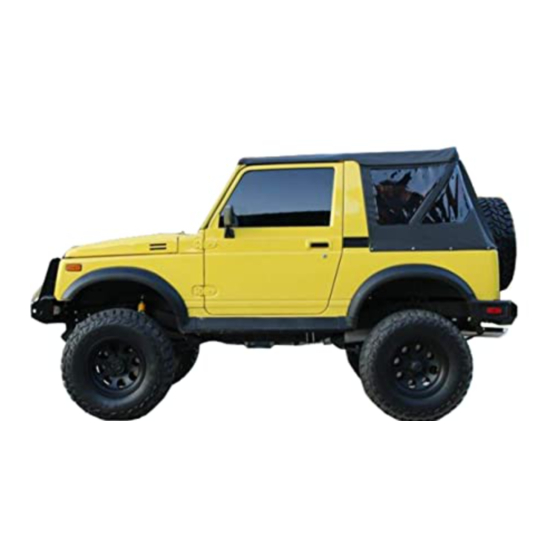

Fabric replacement top for suzuki samurai

Advertisement

Quick Links

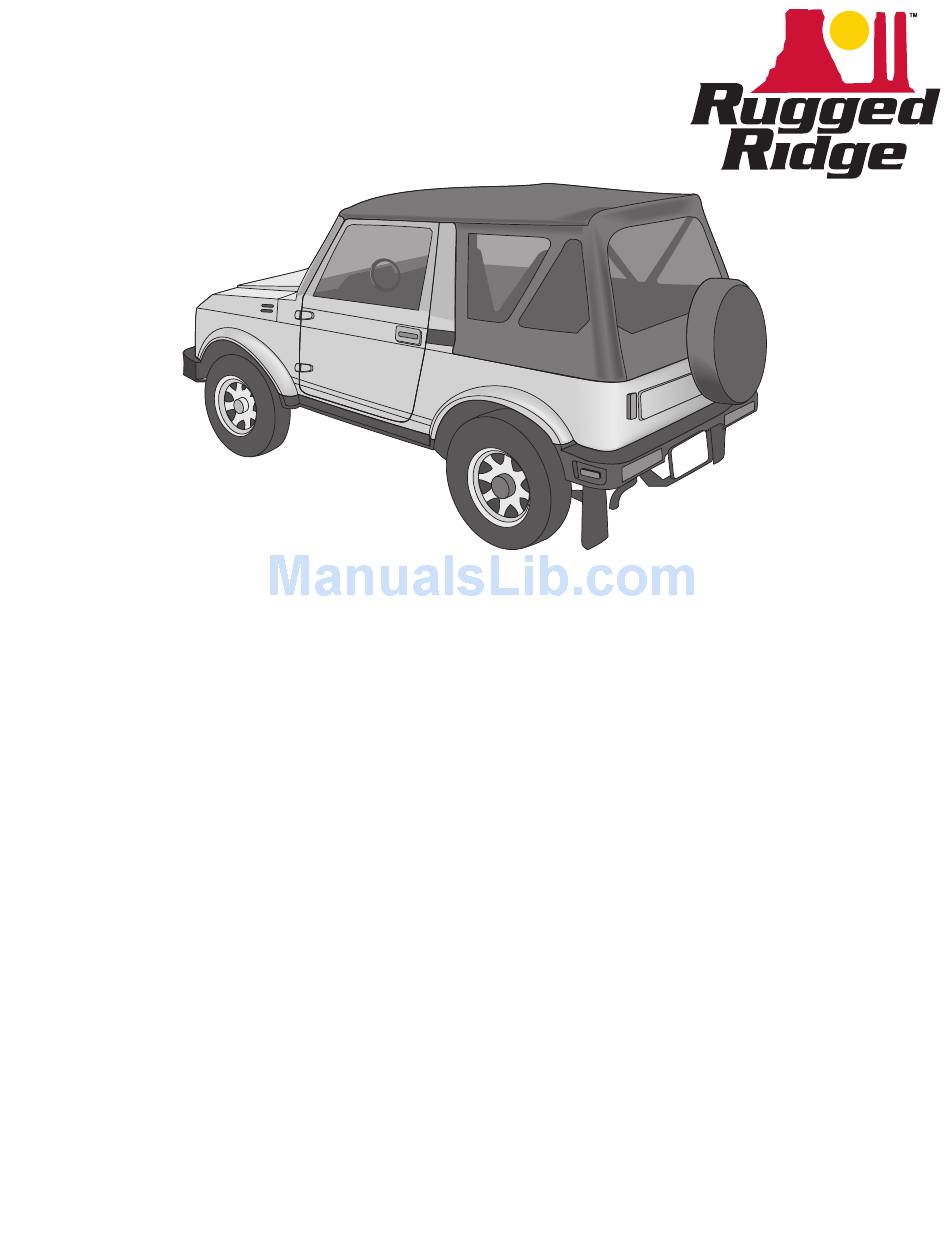

Fabric Replacement Top for Suzuki
Black Denim - 53701.15
White Denim - 53701.52
Installation Tips: Before you begin installing this top assembly, read all instructions thoroughly. For
ease of installation, the top should be installed at temperatures above 72° F. Below this temperature,
the top may contract an inch or more, making it difficult to fit to the vehicle. It is normal for a top
to contract and wrinkle when stored in the shipping carton and there may be indentations in the
Windows. Within a few days of exposure to sunlight, after the installation, the top will relax and the
wrinkles will disappear.
ATTENTION ROOF RACK OWNERS: The soft top
manufacturer's tests indicate that this soft top can be
damaged to the point of failure when used with various
roof rack designs. If this replacement soft top is
installed on a Samurai vehicle in conjunction with any
form of roof rack product, the warranty is null and void.
WARNING: This top is intended to enhance the look of the vehicle and to shield the passengers
from normal weather conditions. Do not rely, in any way, on the components of this top to contain
occupants within the vehicle, or to protect against injury or death in the event of an accident. This top
will not protect the passengers from falling objects. Never operate vehicle in excess of manufacturer's
specifications. Read and follow, precisely, all installation instructions provided when installing this
top. Failure to do so may result in a poor fitting top and could place occupants of the vehicle in a
potentially dangerous situation. Remember to wear your seatbelt at all times.
Samurai
®
®

Necessary Tools:

- Phillips Screwdriver
- Power Drill
- 3/32" and 7/32" Drill Bits
- Pencil
- Center Punch
- Hammer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 53701.52 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rugged Ridge 53701.52

  • Page 1 ® ® Black Denim - 53701.15 White Denim - 53701.52 Installation Tips: Before you begin installing this top assembly, read all instructions thoroughly. For ease of installation, the top should be installed at temperatures above 72° F. Below this temperature, the top may contract an inch or more, making it difficult to fit to the vehicle.
  • Page 2 Step One: Align the top with the two snaps at Step Two: Lay the the front of the vehicle. Drape the top over the top over the rear bow. vehicle. Open the hook & loop flaps over the Slide the front edges of door and snap the front snaps into place.
  • Page 3 Rear bow Rear curtain folded up over top Thread strap through loop Strap must be hehind bow Fasten the end of the strap (as viewed from interior) back on itself Step Five: Make sure that the straps sewn into the rear of the top are behind the rear bow.
  • Page 4 (as viewed from interior) (front) (rear) Strap Curtain up Rear window Wrap flap around door frame and fasten hook & loop Fabric Curtain down Step Ten: Wrap flaps around door frames and attach hook strips to loop strips. (detail of rear curtain) Rear Window: To roll up the Rear Curtain, start at the bottom and roll it upward toward the inside of the vehicle.
  • Page 5 Care and Maintenance of Your New Top. Your top is made of the finest materials available. To keep it looking new and for the maximum possible ware, it will need periodic cleaning and maintenance. Washing: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all traces of soap.

This manual is also suitable for:

53701.15
