Part # 11652.03
Components and Hardware:
1.
5.
9.
Components and Hardware:
1. Left Tail Light Mount ....................................................................... (1)
2. Right Tail Light Mount..................................................................... (1)
3. Wire Harness ................................................................................... (2)
4. Oval Light......................................................................................... (2)
5. Oval Light Grommet ........................................................................ (2)
6. Round Light ..................................................................................... (2)
7. Round Light Grommet .................................................................... (2)
8. Reflector Tape ................................................................................. (4)
9. No 8 Socket Head Screw ................................................................ (4)
10. Adhesive Promoter ......................................................................... (1)
Page 1
2.
6.
OMIX-ADA® TECHNICAL SUPPORT
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com

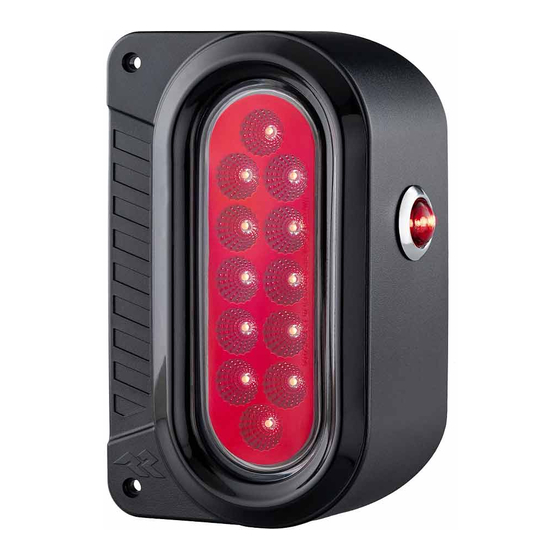

Flush Light Tail Light, JK
3.
7.
Tools for Installation:
• #2 Phillips Head Screw Driver
• 4mm Allen Wrench
4.
8.
Rev 0.0 4/10/2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rugged Ridge 11652.03
Summary of Contents for Rugged Ridge 11652.03
- Page 1 Flush Light Tail Light, JK Part # 11652.03 Components and Hardware: Components and Hardware: Tools for Installation: 1. Left Tail Light Mount ............... (1) • #2 Phillips Head Screw Driver 2. Right Tail Light Mount..............(1) • 4mm Allen Wrench 3.
- Page 2 Part # 11652.03 Flush Light Tail Light, JK 1. Remove the hardware from the tail lights and discon- nect from vehicle’s wiring harness. 2. Affix the Round Light Grommet(#7) into the Tail Light Mount(#1&2). Press the Round Light(#6) into the Round Light Grommet(#7).
- Page 3 Part # 11652.03 Flush Light Tail Light, JK 4. Connect the Oval(#4) and Round(#6) Lights to the sup- plied Wire Harness(#3). Match the wire colors of the light to that of the Wire Harness(#3). 5. Connect the Wire Harness(#3) into the factory wire harness.
