18003.53

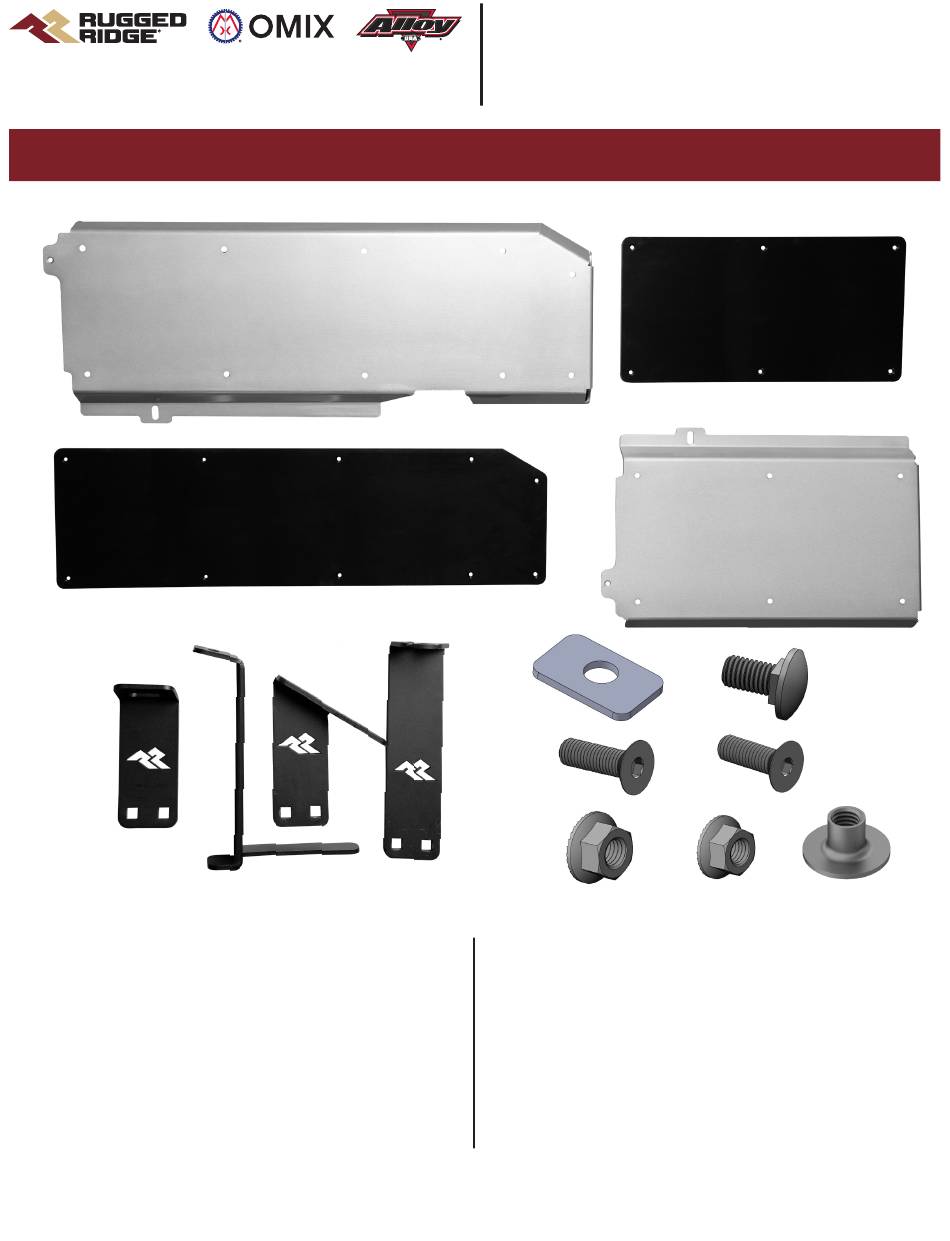

Components and Hardware:
1.
2.
5.
Components and Hardware:
1. Gas Tank Skid Aluminum ..........................................(1)
2. Gas Tank Skid UHMW Outer Panel ...........................(1)
3. Exhaust Skid UHMW Outer Panel .............................(1)
4. Exhaust Skid Aluminum ............................................(1)
5. Exhaust Skid Bracket ................................................(1)
6. Gas Tank Support Bracket ........................................(1)
7. Gas Tank Skid Bracket, Rear Frame Side ................(1)
8. Gas Tank Skid Bracket, Rear Inside .........................(1)
9. Spacer to Frame Rail .................................................(2)
10. M10 X 1.50 20mm, Carriage Bolt .............................(6)
Page 1
6. 7.
8.
OMIX-ADA® TECHNICAL SUPPORT
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Skid Plate,
Gas Tank / Exhaust,
Jeep JL 4-Door
3.
4.
9.
11.
13.
14.
11. M8 X 1.25 25mm, Flat Head Bolt ..............................(8)
12. M8 X 1.25 15mm, Flat Head Bolt ............................(10)
13. M10 X 1.50, Flange Nut .............................................(6)
14. M8 X 1.25, Flange Nut ...............................................(6)
15. M8 X 1.25, Round Base Flat Nut .............................(10)
NOTE: This gas tank and exhaust skid can ONLY be
installed with the Rugged Ridge engine and transmission
skid plate 18003.52 kit. Refer to the 18003.52
instructions before installing this kit.
10.
12.
15.
REV_1.0 01/01/2023
Advertisement
Related Manuals for Rugged Ridge OMIX Alloy 18003.53
Summary of Contents for Rugged Ridge OMIX Alloy 18003.53
- Page 1 NOTE: This gas tank and exhaust skid can ONLY be 8. Gas Tank Skid Bracket, Rear Inside ......(1) installed with the Rugged Ridge engine and transmission 9. Spacer to Frame Rail ..........(2) skid plate 18003.52 kit. Refer to the 18003.52 10.
- Page 2 18003.53 Skid Plate, Gas Tank / Exhaust, Jeep JL 4-dr STEP 1: Install UHMW outer panel (3) to exhaust skid (4). The UHMW panels have a protective film applied. Remove the film from both sides of the panels. Attach the UHMW panels to the engine skid using the longer M8 flat head bolt (11) and flange nut (14).
- Page 3 18003.53 Skid Plate, Gas Tank / Exhaust, Jeep JL 4-dr STEP 4: With your gas tank skid bracket (7) in the inside of your gas tank skid plate (1), use M10 carriage bolts (10) through the inside of the mount into the skid plate and secure with M10 flange nuts (13).
- Page 4 18003.53 Skid Plate, Gas Tank / Exhaust, Jeep JL 4-dr STEP 7: Bring the gas tank skid (1) into place. We highly suggest to either have a friend assist in holding it into place or use a jack. If using a jack make sure to not scratch your UHMW.
- Page 5 18003.53 Skid Plate, Gas Tank / Exhaust, Jeep JL 4-dr STEP 10: Thread the M8 flat head bolt (11) into the nut plate of the transmission cross member. At this time adjust gas tank skid plate and fully tighten all it’s hardware. STEP 11: Bring the exhaust skid (4) into place.
- Page 6 18003.53 Skid Plate, Gas Tank / Exhaust, Jeep JL 4-dr STEP 13: Thread the M8 flat head bolt (11) into the nut plate of the transmission cross member. At this time adjust exhaust skid plate and fully tighten all it’s hardware. STEP 14: Refer back to the instruction sheet for the engine and transmission skids 18003.52 step 26 to complete...
