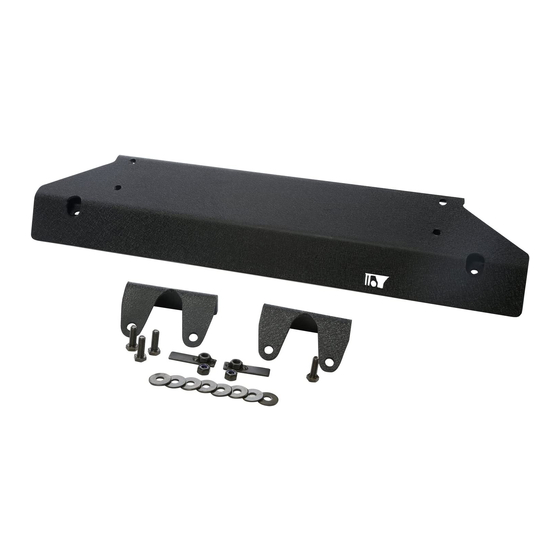

Contents:
1. Skid Plate Weldment (1)
2. Mounting Bracket (2)
3. M10 Washer (8)
4. M10 x 30 Hex Bolts (6)
5. M10 Lock Nuts (2)
1. Loosen Swaybar Mounts (4 bolts). On Non-Rubicon models these need to be loosened approximately
1/2". On Rubicon Models, the bolts will need to be removed and the swaybar allowed to drop away
from the frame.
2. Slide the Mounting Brackets in between the Swaybar Mounts and the Frame. On Rubicon Models,
position the Mounting Bracket in the proper place and lift the swaybar back into place, re-installing
original bolts but leaving them loose.
Jeep
JK Wrangler Front Skid Plate
®
2
5
3
4
1
Page 1 of 2
18003.30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rugged Ridge 18003.30
Summary of Contents for Rugged Ridge 18003.30
- Page 1 18003.30 Jeep JK Wrangler Front Skid Plate ® Contents: 1. Skid Plate Weldment (1) 2. Mounting Bracket (2) 3. M10 Washer (8) 4. M10 x 30 Hex Bolts (6) 5. M10 Lock Nuts (2) 1. Loosen Swaybar Mounts (4 bolts). On Non-Rubicon models these need to be loosened approximately 1/2".
- Page 2 Swaybar Brackets (Figure 5b). Finally, Tighten the Crossmember Bolts (Figure 5c). Figure 5a Figure 5b Figure 5c Congratulations on the purchase and installation of a quality Rugged Ridge product! © Copyright 2008, Omix-Ada Omix-Ada Inc. 460 Horizon Dr. Suite 400...
