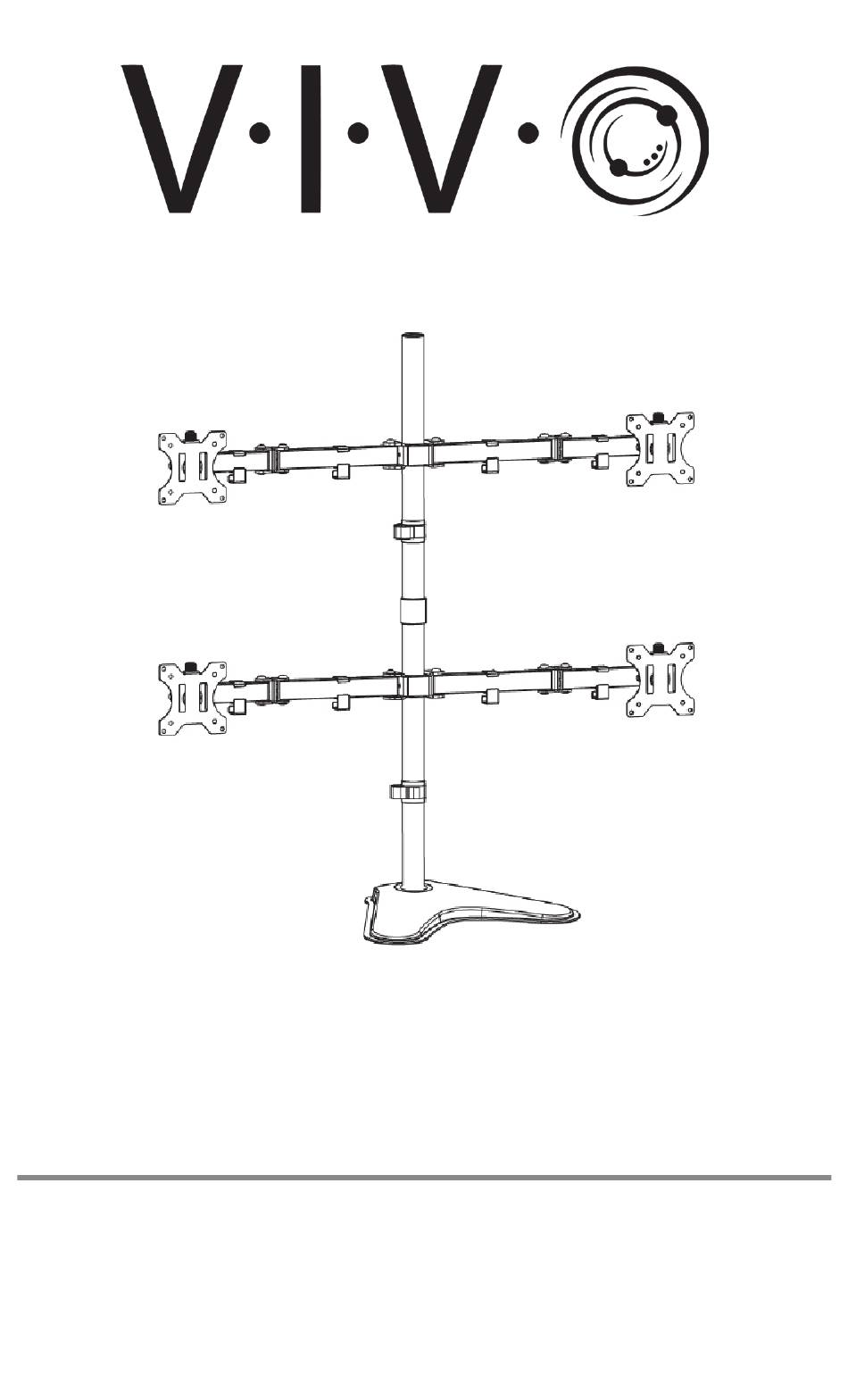

- Page 1 Quad Monitor Desk Stand STAND-V004F Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 3: Package Contents
Package Contents A (x4) B (x2) C (x1) D (x1) VESA Plate Base Lower Pole E (x1) F (x1) G (x2) H (x1) Upper Pole Pole Connector Cable Clip Pole Cap Included Hardware & Tools S-A (x4) S-B (x4) S-C (x3) M-A (x16) M-B (x16) VESA Cap... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Pole Cap (H) to Upper Pole (E). STEP 2 Attach Lower Pole (D) to Base (C) using M6x14mm Screws (S-C) and 4mm Allen Wrench (T-B). - Page 5 STEP 3 Slide one Cable Clip (G) and one Arm (B) over top of Lower Pole (D). Secure by tightening the back screw using 6mm Allen Wrench (T-D).
- Page 6 STEP 4 Thread Pole Connector (F) onto Lower Pole (D), then thread Upper Pole (E) into Pole Conneector. Poles Won’t Thread Into Connector? If Poles (D,E) are difficult to thread into Pole Connector, the two set screws may need to be loosened.
- Page 7 STEP 5 Slide the remaining Cable Clip (G) and Arm (B) onto Upper Pole (E). Secure at the desired height by tightening the back screw using 6mm Allen Wrench (T-D).
- Page 8 STEP 6 Use 5mm Allen Wrench (T-C) to adjust the Arm (B) joint tension. ** WARNING ** To avoid the risk of damaging monitors, never adjust the tension with monitors installed. Secure VESA Plates (A) to the back of monitors using approprate Screws (M-A thru M-D) and M5 Washers (M-E).
- Page 9 STEP 7 Slide bottom two monitors onto the stand first and ensure weight is even. Then slide top two monitors on. Warning: Use caution when installing monitors. Ensure the stand is stable before fully relieving the monitor weight. STEP 8 Secure monitors by placing VESA Caps (S-A) on square bolts on VESA Plates (A).
- Page 10 STEP 9 Route cables through arm cable clips and Cable Clips (G). STEP 10 Align monitors by turning VESA Caps (S-A) using 6mm Allen Wrench (T-D).
- Page 11 Adjust as Desired +45 ° 360 ° +45 ° -45° 360 ° -45° +45 ° 360 ° +45 ° -45° 360 ° -45° Store Allen Wrenches (T-A, T-B, T-C, T-D) in Cable Clips (G) for future adjustments.
-
Page 12: Last Updated
LAST UPDATED: 12/27/24 REV2 v1.2 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
