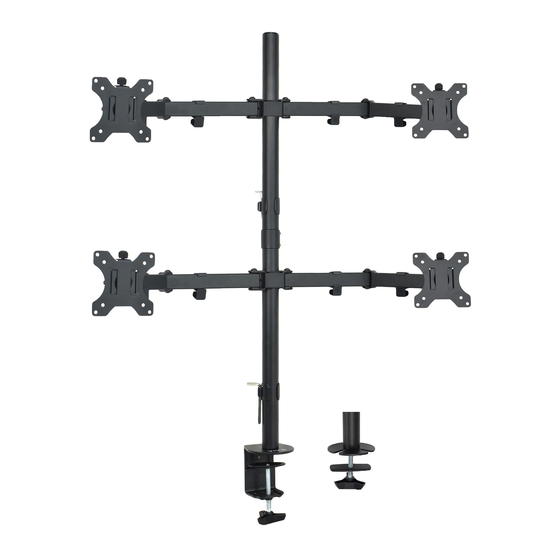

Quad Monitor Desk Mount
Instruction Manual
SKU: STAND-V004
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v004
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V004
Summary of Contents for Vivo STAND-V004
- Page 1 Quad Monitor Desk Mount Instruction Manual SKU: STAND-V004 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v004 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 Attach plastic cap (Q) to top of pole (E). STEP 2 OPTION A: Clamp Installation Apply rubber pads (K) to clamp (C) as shown in diagram. Attach clamp (C) to pole (D) with large screws (L) using 4mm allen wrench (O). Secure clamp (C) to desk. OPTION B: Grommet Base Installation Remove clamp screw from clamp (C).
- Page 4 STEP 3 Slide one cable management clip (G) onto pole (D). Slide arm (B) onto pole (D) and tighten in place using 6mm allen wrench (P). Screw pole adapter (F) onto pole (D). Screw pole (E) into pole adapter (F). Tighten using 3mm allen wrench (N) as shown in diagram.
- Page 5 STEP 45 OPTION A: Flat Back Monitor Attach VESA plates (A) to monitors using screws (M-A or M-C) and washers (M-E). M- E M- A M- C OPTION B: Curved Back Monitor Attach VESA plates (A) to monitors using screws (M-B or M-D), washers (M-E), and spacers (M-F). M- E M- B M- D...
- Page 6 STEP 7 Use VESA caps (I) and small screws (J) to secure monitors as shown in diagram. Tighten with 6mm allen wrench (P) as shown in diagram. STEP 8 Use cable management clips (G) to manage cables. Use cable management clips (G) to store allen wrenches.
- Page 7 STEP 9 Be careful not to extend the arms too far forward or backward. Adjust as Desired +45° 360° -45° +45° 360° -45° +45° 360° +45° -45° 360° -45°...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
