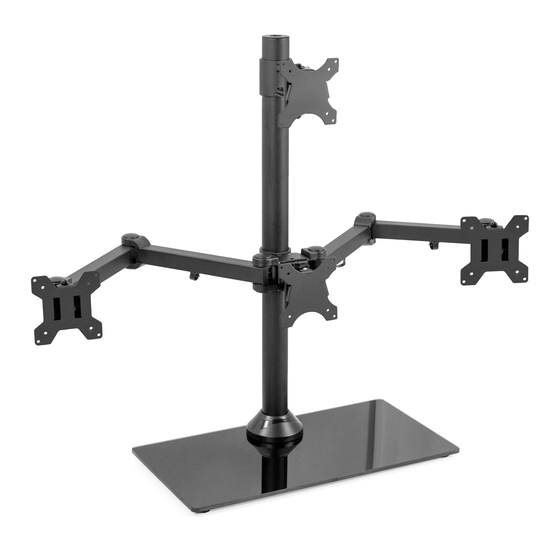

Quad Monitor Desk Stand
Instruction Manual
SKU: STAND-V004TG
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v004tg
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V004TG
Summary of Contents for Vivo STAND-V004TG
- Page 1 Quad Monitor Desk Stand Instruction Manual SKU: STAND-V004TG Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v004tg GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs (9.98kg) Failure to do so may result in serious injury. Phillips Screwdriver ASSEMBLY STEPS STEP 1 Glass Base Installation Attach Rubber Feet (F) to the underside of the Glass Base (B). Attach Soft Pad (G) to the Pole (A). Use a screwdriver to poke holes for screws through the pad.
- Page 4 STEP 2 Install Monitor Arm (C1) and Monitor Bracket (C2) to the Pole (A), making sure the wire clips are facing down. Secure using M8x10 Bolts (J) with a Phillips screwdriver. STEP 3 OPTION A: Flat Back Monitor Fasten the VESA Plates (P, Q) to monitors using M4x12 Thumbscrews (M).
- Page 5 STEP 4 Slide the center monitor onto the center head of Monitor Arm (C1) and Monitor Bracket (C2). Install the M4x6 bolt (S) to secure the monitor. Slide the side monitors onto the heads of Monitor Arm (C1). Install the Security Nuts (R) to secure the monitors.
- Page 6 STEP 5 Adjust the tilt and swivel. Remove the plastic cover and use the Allen Key (K) to adjust swivel joint tension. Remove the plastic cover then use the wrench (T) to tighten the side tilt joints if the monitors are not fully supported.
- Page 7 STEP 6 Turn the bolt on the center of the monitor arm counter-clockwise using medium Allen Key (K) to lower the center monitor or clockwise to raise the center monitor. Remove the security nut (R) and turn the bolt underneath with the small Allen Key (K) to raise or lower the side monitor. Replace the nut after adjustment.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
