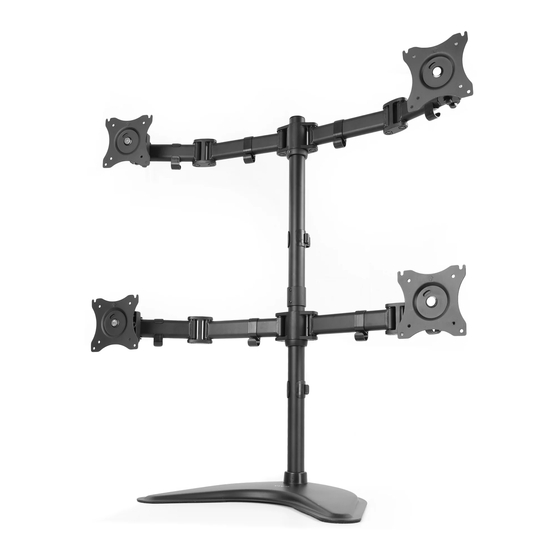

Quad monitor desk stand

Advertisement

Quick Links

Quad Monitor Desk Stand
Instruction Manual
SKU: STAND-V004P
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v004p
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V004P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-V004P

  • Page 1 Quad Monitor Desk Stand Instruction Manual SKU: STAND-V004P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v004p GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Slide one cable management clip (G) and the base cover (H) onto the bottom of the lower pole (B). Loosen the grub screws in the base (A) using the 3mm Allen wrench (I) and screw the lower pole into the base.
  • Page 4 STEP 3 Slide the first arm (E) onto the top of the pole and tighten using the 5mm Allen wrench (J). STEP 4 Attach the pole cover (D) to the upper pole (C). STEP 5 Loosen the grub screws in the pole connector (F) using the 3mm Allen wrench (I), then screw the connector onto the lower pole (B).
  • Page 5 STEP 6 Slide the second arm (E) onto the top of the upper pole and tighten using the 5mm Allen wrench (J). STEP 7 Insert two bolts (M-A or M-B) and washers (M-C) into the top mounting holes of the monitors, making sure to leave 3mm of thread exposed.
  • Page 6 STEP 8 Tighten or loosen the tilt joints using the 6mm Allen wrench (K). STEP 9 Store the Allen wrenches (J, K) in the cable management clip (G) for future adjustments.
  • Page 7 STEP 10 Do not move monitors past the center point of gravity. This could result in tipping. STEP 11 If monitor heights are not aligned, turn the screw behind each VESA plate using the 5mm Allen wrench (J). Clockwise will raise the monitor and counter-clockwise will lower the monitor.
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
