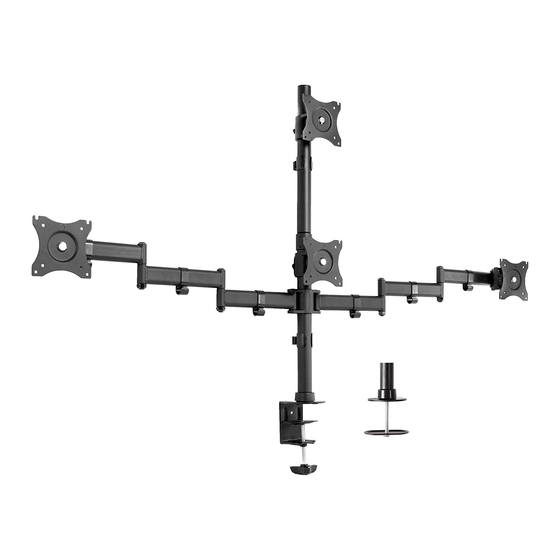

- Page 1 Quad Monitor Desk Mount Instruction Manual SKU: STAND-V004Y Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v004y help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Stick soft pads (L) to bottom of clamp base (F). Slide cable management clip (J) and base cover (K) on to bottom of pole (A). - Page 4 STEP 2 Slide arm (C) and bracket (D) over top of pole and tighten using 5mm allen key (N).
- Page 5 STEP 3 Slide cable management clip (J) over bottom of top pole (B). Use pole connector (H) to attach pole (B) to pole (A) as shown in diagram STEP 4 Slide second bracket (D) on to pole (B) and tighten using 5mm allen key (N).
- Page 6 STEP 5 Attach cable management clips (I) to arms (C) as shown in diagram. STEP 6 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitor, making sure to leave 3mm of threads exposed. Align bolts (M-A or M-B) in VESA plate. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes.
- Page 7 STEP 7 Adjust tension in monitor bracket with 6mm allen key (O) as shown in diagram. +45 ° -45 ° STEP 8 Store allen keys (M,N,O) in cables management clips (J) for future adjustments. STEP 9 Adjust height of monitors using 5mm allen key (N) as shown in diagram. 360°...
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
