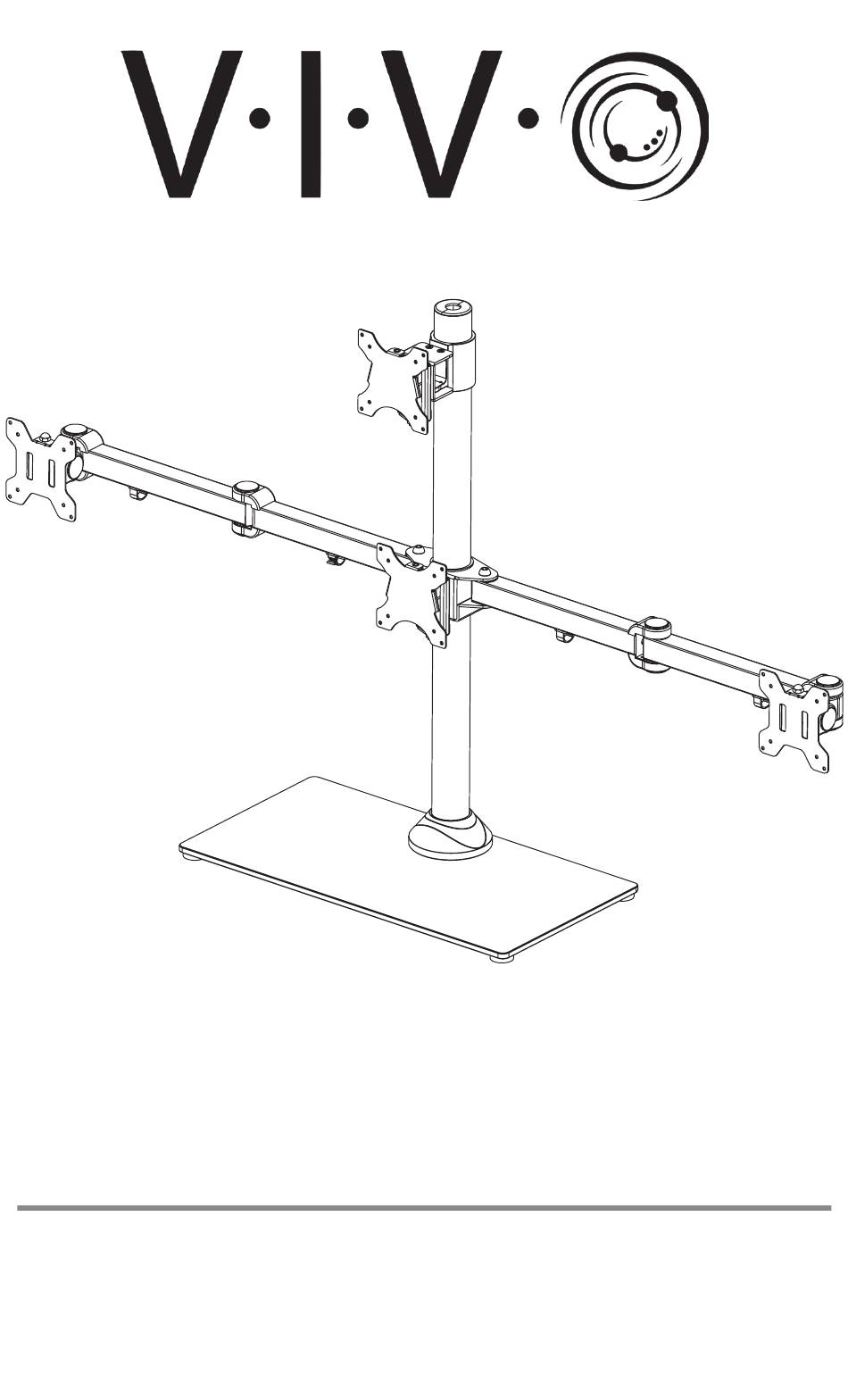

- Page 1 Quad Monitor Desk Stand STAND-V004TG Assembly Manual...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Package Contents A (x1) B (x1) C (x1) Pole Glass Base Monitor Arm D (x1) E (x1) F (x6) Monitor Bracket Decorative Cover Rubber Feet G (x1) H (x2) I (x2) Soft pad Plastic Cap Side VESA Plate J (x2) Center VESA Plate...
- Page 4 Included Hardware & Tools S-A (x3) S-B (x3) S-C (x2) S-D (x3) M8x8mm M8 Washer M6x10mm M8x10mm Screw Screw Screw S-E (x1) S-F (x2) M-A (x12) M-B (x12) M4x6mm Security Nut M4x12mm M4x30mm Screw Screw Screw M-C (x12) T-A (x1) T-B (x1) T-C (x1) M4 Spacer...
- Page 5 Assembly Steps STEP 1 Attach Rubber Feet (F) to underside of Glass Base (B). Attach Soft Pad (G) to bottom of Pole (A). Using the holes as a guide, carefully poke the Pad through with a screwdriver.
- Page 6 STEP 2 Optional: Slide Decorative Cover (E) over Use the provided M6x10mm Screws (S-D), M8x8mm Screws (S-A), M8 the Pole. Washers (S-B), 4mm Allen Wrench (T-B), and Phillips screwdriver to securely attach the Pole (A) to the Glass Base (B).
- Page 7 STEP 3 Install Monitor Arm (C) to Pole (A). Secure using M8x10mm Screws (S-C) and a Phillips screwdriver. Attach Monitor Bracket (D) to the Pole. Secure both using M8x10mm Screws and a Phillips screwdriver.
- Page 8 STEP 4 Place the Center VESA Plates (J) onto the back of the monitors you intend to mount in the center. With a Phillips screwdriver, secure using appropriate screws (M-A or M-B) and M4 Spacers (M-C), if necessary. Use Center VESA Plates (J) Center VESA Plates (J) are identifiable by their...
- Page 9 STEP 5 Place the Side VESA Plates (I) onto the back of the monitors you intend to mount on the sides. With a Phillips screwdriver, secure using appropriate screws (M-A or M-B) and M4 Spacers (M-C), if necessary. Use Side VESA Plates (I) Side VESA Plates (I) are identifiable by their...
- Page 10 STEP 6 Slide the center monitor onto the Center VESA Heads (C1,D1). Secure in place using the provided M4x6mm Screw (S-E) and a Phillips screwdriver. C1,D1 C1,D1...
- Page 11 STEP 7 Slide the side monitors onto the Side VESA Heads (C2). Secure in place using the provided Security Nuts (S-F).
- Page 12 Tilt Adjustment Side Monitors Center Monitors Set Screw Set Screw Remove Plastic Cap (H). Loosen the Use the 3mm Allen Wrench (T-A) to loosen exposed nut by turning it counterclockwise the center Set Screw on the Center Head with a wrench. Adjust the tilt, then turn the (C1,D1).
- Page 13 Monitor Height Adjustment Side Monitors Center Monitors Inner Bolt Inner Bolt C1,D1 Remove the Security Nut (S-F). Turn Use the 5mm Allen Wrench (T-C) to turn the the Inner Bolt with the 3mm Allen screw behind the Center Head (C1,D1). Wrench (T-A) to raise or lower the monitor.
- Page 14 Swivel Joint Adjustment Remove the Monitor Arm Cover, turn the bolt underneath with the 6mm Allen Wrench (T-D), and then resecure the cover. Adjust swivel and orientation as desired.
- Page 15 Cable Management Manage cables using Wire Clips (C4) on Arm (C). Remove the Split Cap from the Pole (A) and feed cables through, pulling ends out from the opening in back. Replace the split cap when finished. Split Cap Split Cap...
- Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
