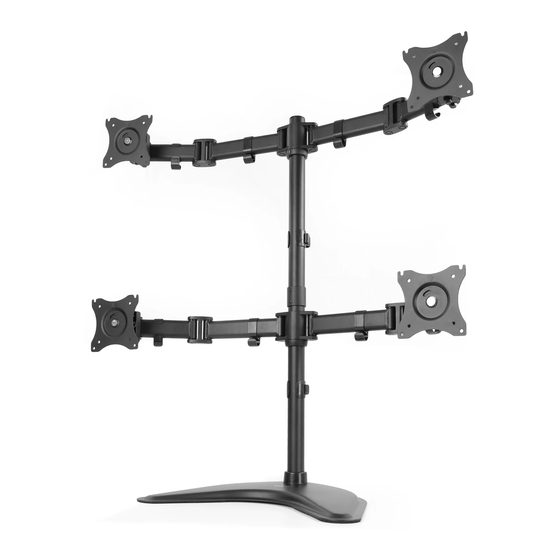

Quad Monitor Desk Stand
Instruction Manual
SKU: STAND-V004P
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v004p
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V004P
Summary of Contents for Vivo STAND-V004P
- Page 1 Quad Monitor Desk Stand Instruction Manual SKU: STAND-V004P Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v004p GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Slide one cable management clip (F) and cover (G) onto pole (B) from bottom. Thread pole (B) into base (A).
- Page 4 STEP 3 Slide arm (D) onto pole (B). Tighten with 5mm allen wrench (I). STEP 4 Thread pole adapter (E) onto pole (B). Slide cable management clip (F) onto pole (C) from bottom. Thread pole (C) into pole adapter (E). Tighten grub screws in pole adapter (E) with 3mm allen wrench (H).
- Page 5 STEP 5 Slide arm (D) onto pole (C). Tighten with 5mm allen wrench (I). STEP 6 Insert screws (M-A or M-B) with washers (M-C) into top 2 holes of monitors. Leave slightly loosened. Slide monitors onto VESA Plates from above. Insert screws (M-A or M-B) with washers (M-C) into bottom 2 holes of monitors.
- Page 6 STEP 7 Adjust the tilt angle of the monitors. If the weight of the monitors is not supported, tighten joints with 6mm allen wrench (J) as shown in diagram. +45 ° -45° STEP 8 Store allen wrenches (H, I, J) as shown in diagram.
- Page 7 STEP 9 Do not push monitors too far back. STEP 10 If monitor heights are not aligned, turn the screw behind each VESA plate using the 5mm allen wrench (I). Clockwise will raise the monitor and counter-clockwise will lower the monitor. 360°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
