Summary of Contents for fantastic furniture Benson Lowboy

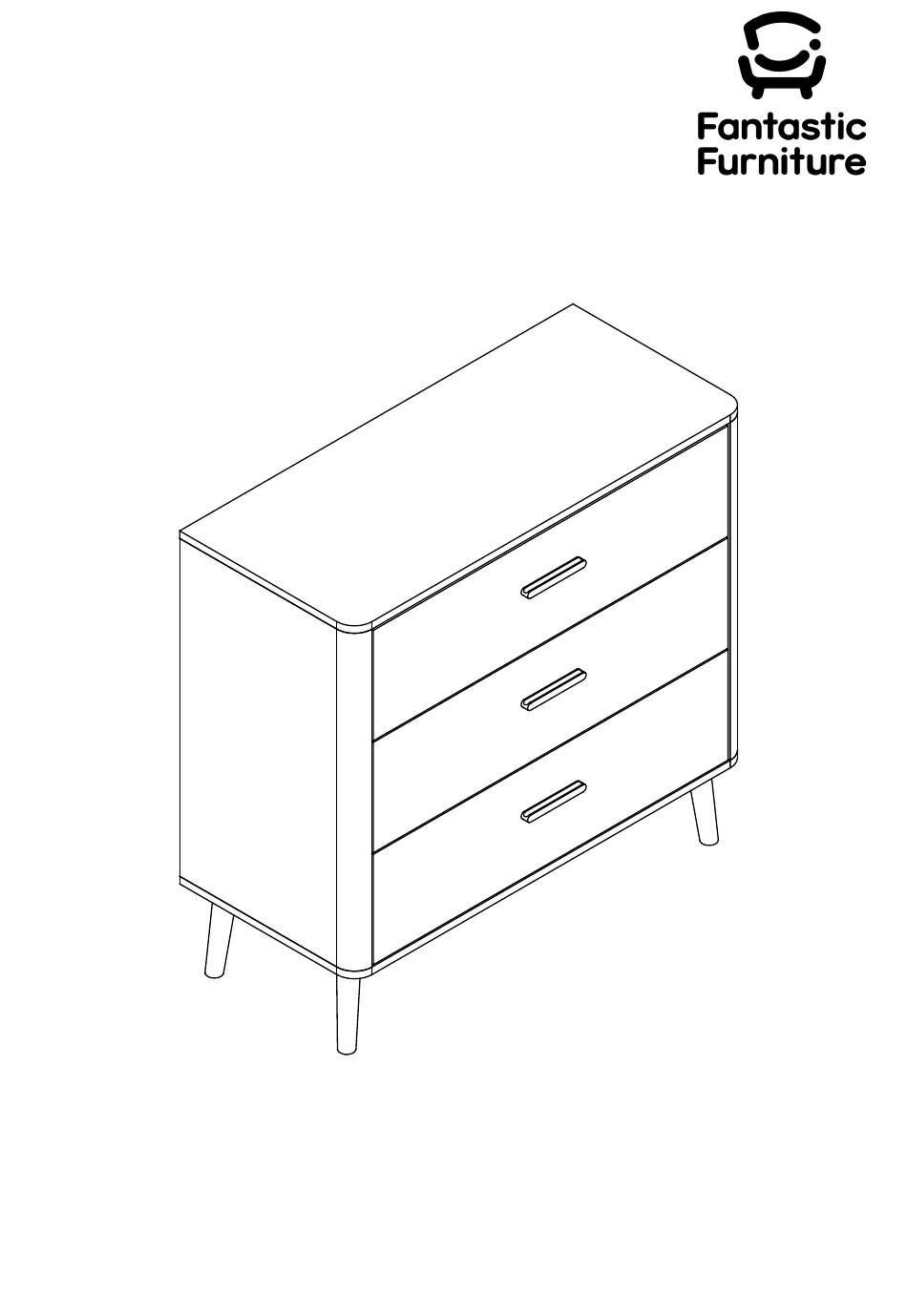

- Page 1 Version 1.0 Benson Lowboy 3 Drawer fantasticfurniture.com.au...
- Page 2 Secure it! Reduce the risk of furniture tip-over accidents Please seek professional advice if you are in doubt of what fixing device to use. Recommended Weight Capacity :10kg/drawer • • • Do not • • Wall attachment guide (with available wood stud) (with available wood stud) crew Screw...
- Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 3 fantasticfurniture.com.au...
-
Page 4: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 5: What You Need
What you need Top Panel to assemble the product (P1) Right Side Back Panel DO NOT USE Panel (P5) Rail (P4) (P7) Other tools you need: Phillips head screwdriver; Rail Hammer (P6) Rail Back Panel (P8) Left Side (P5) Panel Parts list (P3) Top Panel (P1);... - Page 6 Step 1 You will need 9 x Small 3 x CL Runner Screws (H5) Tracks (H6) Phillips Head Screwdriver (P3) Attach 3 x CL Runner Tracks (H6) to Left Side Panel (P3) with 9 x Small Screws (H5) by tightening with the Phillips Head Screwdriver. Step 2 You will need 3 x CR Runner...
- Page 7 Step 3 You will need H3 H3 6 x Cam Bolts Phillips Head (H3) (P4) Screwdriver Attach 6 x Cam Bolts (H3) to (P3) Left & Right Side Panels (P3 & P4) as shown by tightening with the Phillips Head Screwdriver. Step 4 You will need (P6)
- Page 8 Step 5 (P4) You will need 1 x Dowel 3 x Cam Nuts (H1) (H4) (P6) 1 x Screw Phillips Head (P7) (H13) Screwdriver (P8) Insert 1 x Dowel (H1) into Rail (P8). Insert 3 x Cam Nuts (H4) into the holes of Rails (P6 & P8). Rotate the cam nuts so the arrows point towards the incoming cam bolts.
- Page 9 Step 7 You will need (P2) 4 x Long 4 x Dowels Screws (H2) (H1) (P3) Phillips Head Screwdriver (P4) Insert 4 x Dowels (H1) into Left & Right Side Panels (P3 & P4). Attach Bottom Panel (P2) to Left & Right Side Panels (P3 & P4) using 4 x Long Screws (H2) by tightening with the Phillips Head Screwdriver.
- Page 10 Step 9 (P15) You will need (P15) 4 x Plastic Hammer Glides (H10) (P15) (P15) Secure 4 x Plastic Glides (H10) to the bottom of 4 x Legs (P15) as shown using the Hammer. Step 10 (P5) (P4) (P3) With assistance, turn the assembled unit upright and slide the second Back Panel (P15) into the grooves of Left &...
- Page 11 Step 11 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P1) Attach 4 x Cam Bolts (H3) to the Top Panel (P1) as shown by tightening with the Phillips Head Screwdriver. Step 12 (P1) You will need (P4) 4 x Dowels 4 x Cam Nuts...
- Page 12 Step 13 You will need 15 x Cam Bolts Phillips Head (H3) Screwdriver (P14) Attach 15 x Cam Bolts (H3) into Drawer Fronts (P14 x 3) as shown by tightening with the Phillips Head Screwdriver. Step 14 You will need (P9) (P13) 15 x Cam Nuts...
- Page 13 Step 15 (P12) (P9) (P10) Slide Drawer Base (P12 x 3) into the groove in Drawer Sides (P9 x 3 & P10 x 3). Step 16 You will need 15 x Long Phillips Head Screws (H2) Screwdriver (P9) (P11) (P10) Attach Drawer Backs (P11 x 3) to Drawer Sides (P9x 3 &...
- Page 14 Step 17 You will need (P10) 3 x DL 3 x DR Runner (H8) Runner (H9) Phillips Head 18 x Small (P9) Screwdriver Screws (H5) Attach 3 x DL Runners (H8) to the bottom of Left Drawer Sides (P9 x 3) and 3 x DR Runners (H9) to the bottom of Right Drawer Sides (P10 x 3) with 18 x Small Screws (H5).
- Page 15 Step 19 (P14) Carefully insert the drawers into the unit by gently guiding the runners into the tracks. Step 20 You will need 8 x Wedge 8 x Wedges Screws (H11) (H12) (P5) 1 x Safety Strap 1 x Safety Strap (P5) (H19) Screw (H20)
-
Page 16: Job Complete
Step 21 wall You will need Screw 1 x Washer Phillips Head (H21) Screwdriver Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall. Seek advice from a qualified trades person on how to attach this safety strap to your specific wall.
