ETC Matrix II Installation Manual page 12

Section 2
Positioning of Racks
Description (Rear Access racks)
Rear access racks are available in 160cm or 200cm
high versions and are available in 4 standard module
configurations for each version. Both height versions
are 60cm wide and 80cm deep. Each rack is supplied
with two side covers. The supplied intermediate side
panels may be discarded between racks.
Adequate space is required to the front for removing
and replacing modules and the processor, and space
at the rear should be available for fully opening the
rear door and allowing adequate access for wiring.
The rear door panel is also the main air intake for
ventilating the dimmers and must not be obscured.

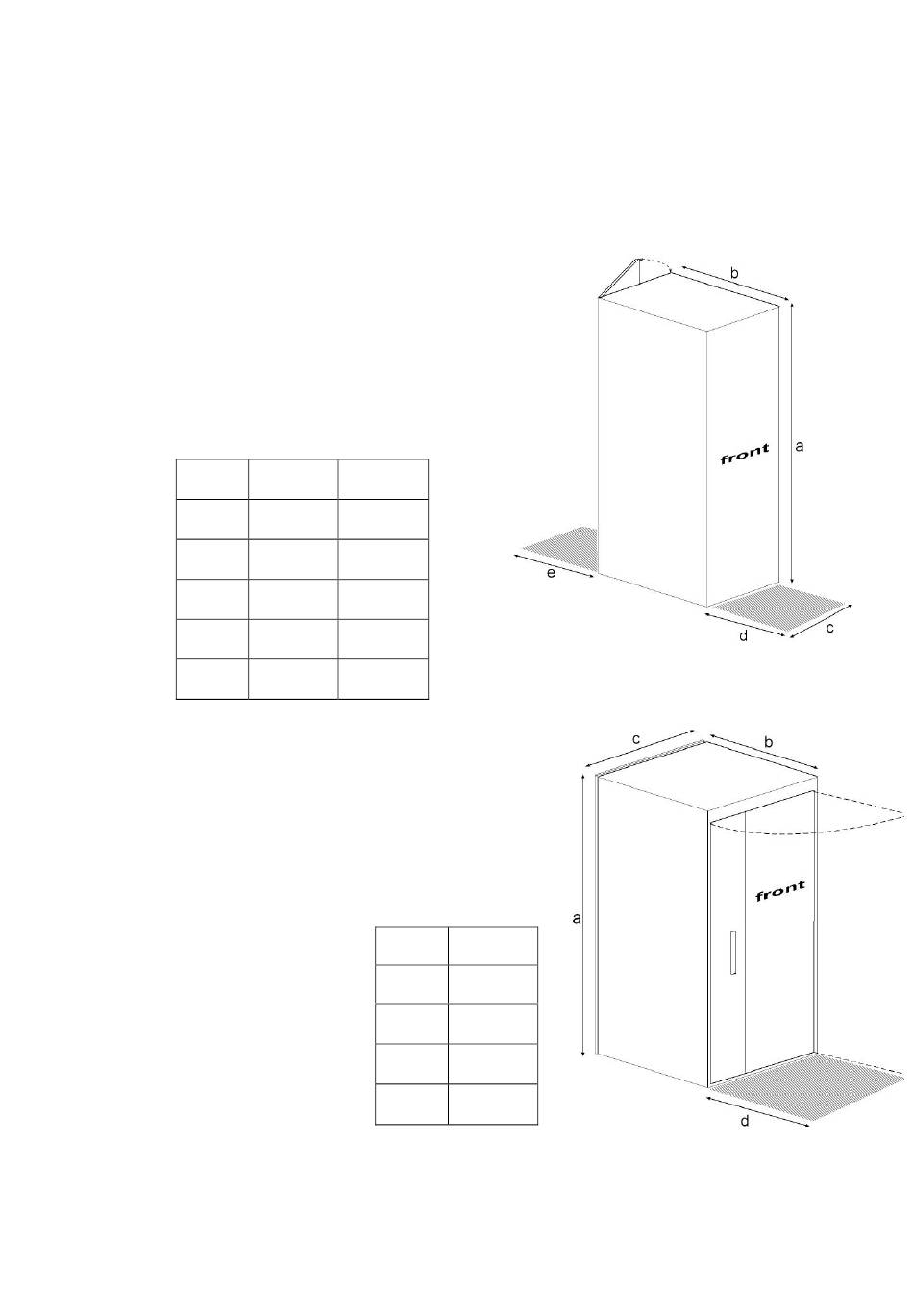

dimension 18 modules
a 160cm
b 80cm
c 60cm
d 80cm min.
e 80cm min.
Description (Swing Frame racks)
Swing frame racks are 200cm high, 80cm wide and 83cm deep
(including the rear stand-off ventilation panel) and are available
in 4 standard configurations. Racks are not supplied with side
covers but may be ordered separately to cover exposed sides.
Adequate space is required to the front for removing and
replacing modules and the processor, and for fully opening the
front swing door sufficiently to allow adequate access for
wiring. The rear panel is spaced approx. 10mm from the rear of
the rack to provide an air intake for
ventilating the dimmers. This
space must not be obscured.
8
27 modules
200cm
80cm
60cm
80cm min.
80cm min.
dimension 27 modules
a 200cm
b 83cm
c 80cm
d 100cm min.
Matrix Mk.II Rack Installation Manual version: 2.0
