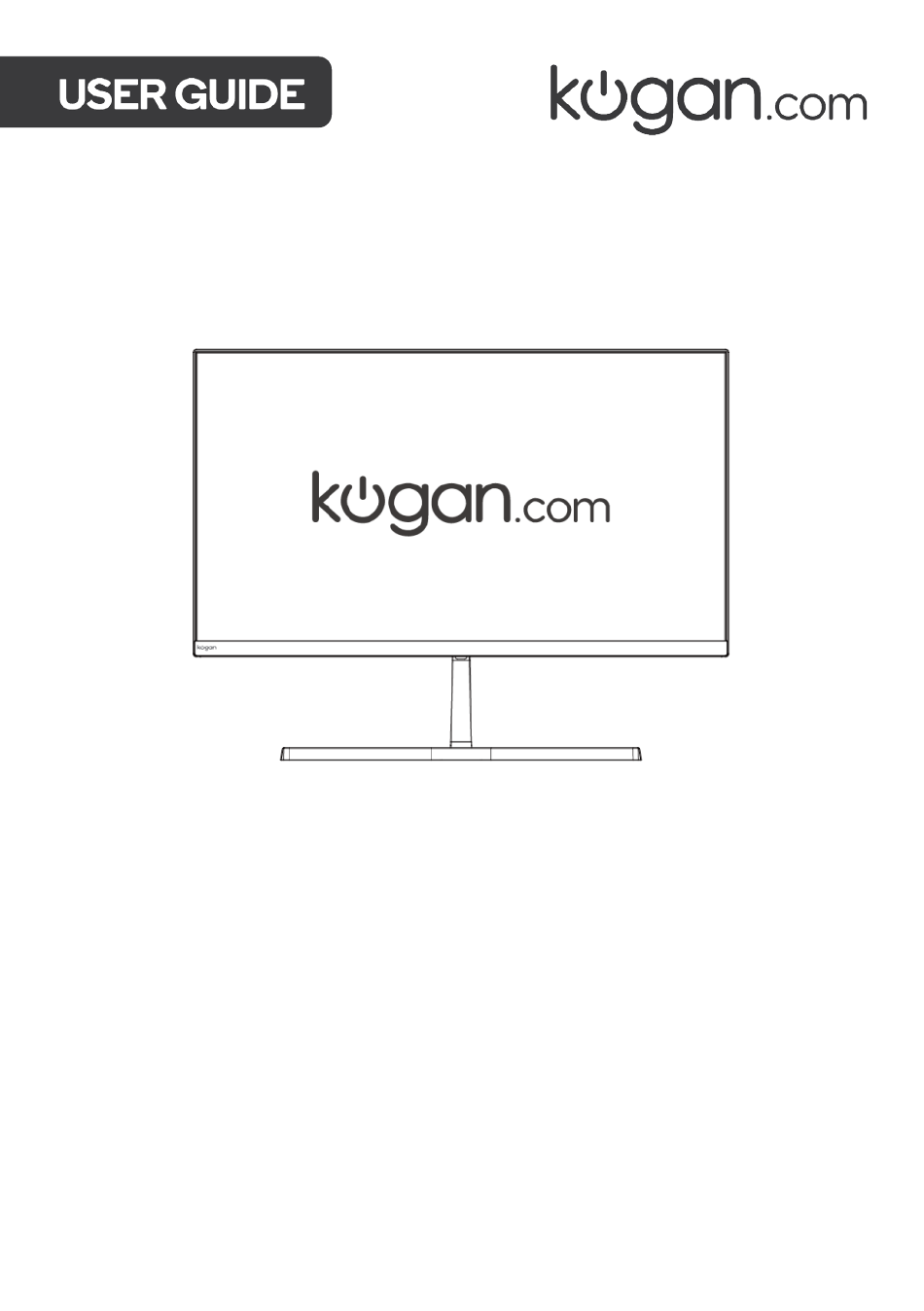

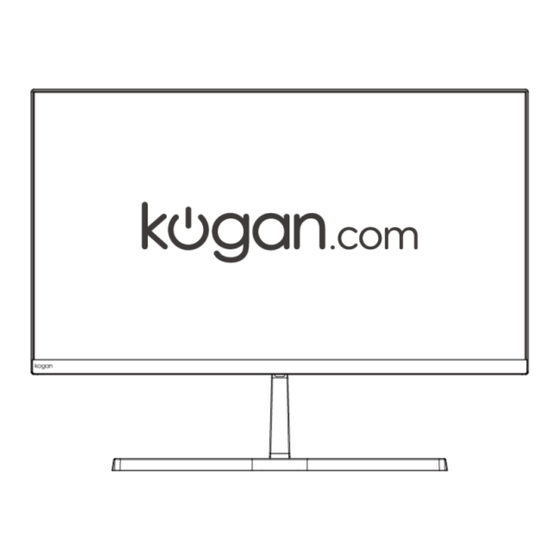

- Page 1 27" FRAMELESS 1MS FREESYNC MONITOR (2560 X 1440, QHD, 100HZ) KAMN27Q1FSA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before using the monitor and retain this user guide for future reference. • Unplug the monitor before cleaning it with a slightly damp, clean cloth. • It is recommended to wipe the screen with a dry microfibre cloth once the monitor has been turned on. - Page 4 COMPONENTS Monitor Stand arm Stand base M4x10 Stand screw M4x10 VESA screws (x4) DP cable Power Adapter User guide...
- Page 5 OVERVIEW Menu button: Press to display the OSD menu or enter submenus. Down button: Press to move down in the menu. Up button: Press to move up in the menu. Exit button: Press to exit the menu. Power button: Press to turn the monitor ON/OFF.
- Page 6 Monitor Ports Power input port HDMI port (x2) DisplayPort (DP) Audio output (3.5mm)
- Page 7 ASSEMBLY WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. M4x10 Carefully remove the monitor, stand Attach the stand base to the stand arm arm and stand base from the box. using the M4x10 screw provided.
-
Page 8: Vesa Mount
VESA MOUNT VESA mounting pattern 75x75mm, screw size M4x10. Note: VESA mount or mounting accessories are NOT included. Open the box, take out the monitor with protection form attached and gently place it on a desktop or table. Remove the extra parts and the foam covering the rear of the monitor. - Page 9 CONNECTIVITY Power Connect the included Power Adapter to the monitor’s power input port, then connect the other end to an electrical outlet. Power Adapter Earphones (Audio Out) Earphones, headphones or other audio devices can be connected to the 3.5mm output on the monitor.
- Page 10 HDMI For the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer. HDMI Cable (Not included) HDMI Output DisplayPort For the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.
-
Page 11: Operation
OPERATION Connect the monitor to the input device via HDMI / Display Port. Connect the power adaptor to the rear monitor, then connect the other end directly to an electrical outlet. Use the power button to turn the monitor on. FreeSync •... - Page 12 Refer to the following pages for a detailed list of the OSD menu functions. Note: OSD is continuously updated, minor differences may exist in some functions description. The actual effect prevails. Menu Sub-Menu Options Description Brightness ~0-100 Adjust display brightness Contrast ~0-100 Adjust display contrast...
- Page 13 Standard/ G1/ Game Mode Select the desired game mode G2/G3/ FPS/ RTS Off/ Cross1/ Game Cross Cross2/ Cross3/ Select the desired cross hair Cross4 Off/Normal/Best/ Select the desired response Response Time High/Extreme time This option will allow you to Dynamic Response Off/On open or close Dynamic Time...
- Page 14 ECO Modes Press ‘ ’ button to switch ECO modes. These modes include Standard, E-Book, Movie, Picture and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.
-
Page 15: Specifications
SPECIFICATIONS Screen size 27” Aspect ratio 16:9 Brightness 300cd/m (typical) Panel Resolution 2560×1440 Refresh rate 100Hz Response time Viewing angle ≥178°(H) / 178°(V) Contrast ratio 1000:1 VESA mounting 75 x 75mm Colours 16.7M Signal input HDMI x 2, DP x 1 Power DC12V=4.0A Audio... - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
