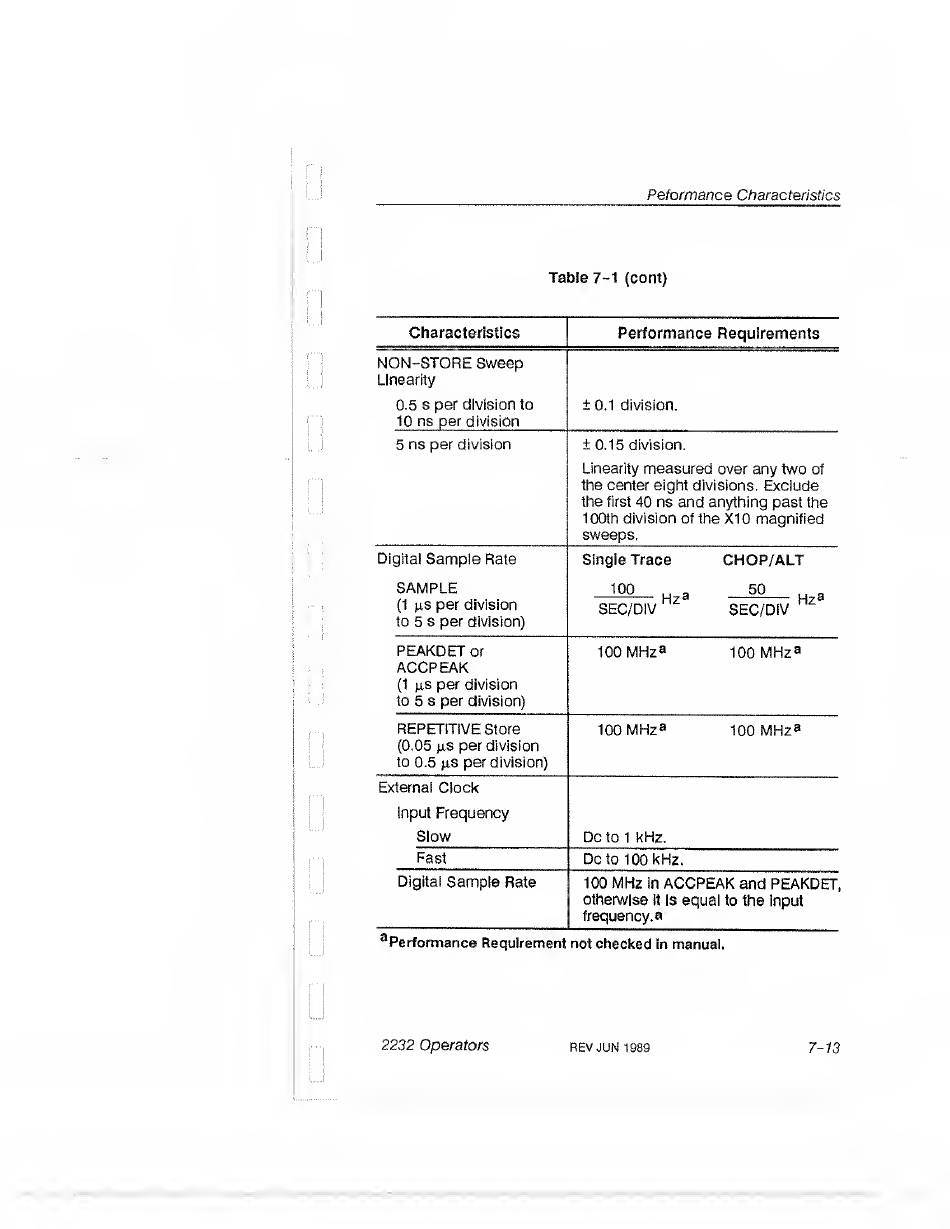

Tektronix 2232 User Manual page 189

Peformance Characteristics
Table 7-1 (com)
Characteristics
Performance Requirements
NON-STORE Sweep
Linearity
0.5 s per division to
10 ns per division
± 0.1 division.
5 ns per division ± 0.15 division.
Linearity measured over any two of
the center eight divisions. Exclude
the first 40 ns and anything past the
100th division of the XI0 magnified
sweeps.
Digital Sample Rate
SAMPLE
(1 ^ts per division
to 5 s per division)
Single Trace CHOP/ALT
100 „ 50
Hz°
Hz®
SEC/DIV SEC/DiV
PEAKDET or
ACCPEAK
(1 )j.s per division
to 5 s per division)
100 MHz® 100 MHz®
REPEimVE Store
(0.05 ^s per division
to 0.5 )iS per division)
100 MHz® 100 MHz®
External Clock
Input Frequency
Slow
DC to 1 kHz.
Fast
Dc to 100 kHz.
Digital Sample Rate
100 MHz in ACCPEAK and PEAKDET,
otherwise It is equal to the input
frequency.
0
^Performance Requirement not checked In manual.
