Options and Accessories

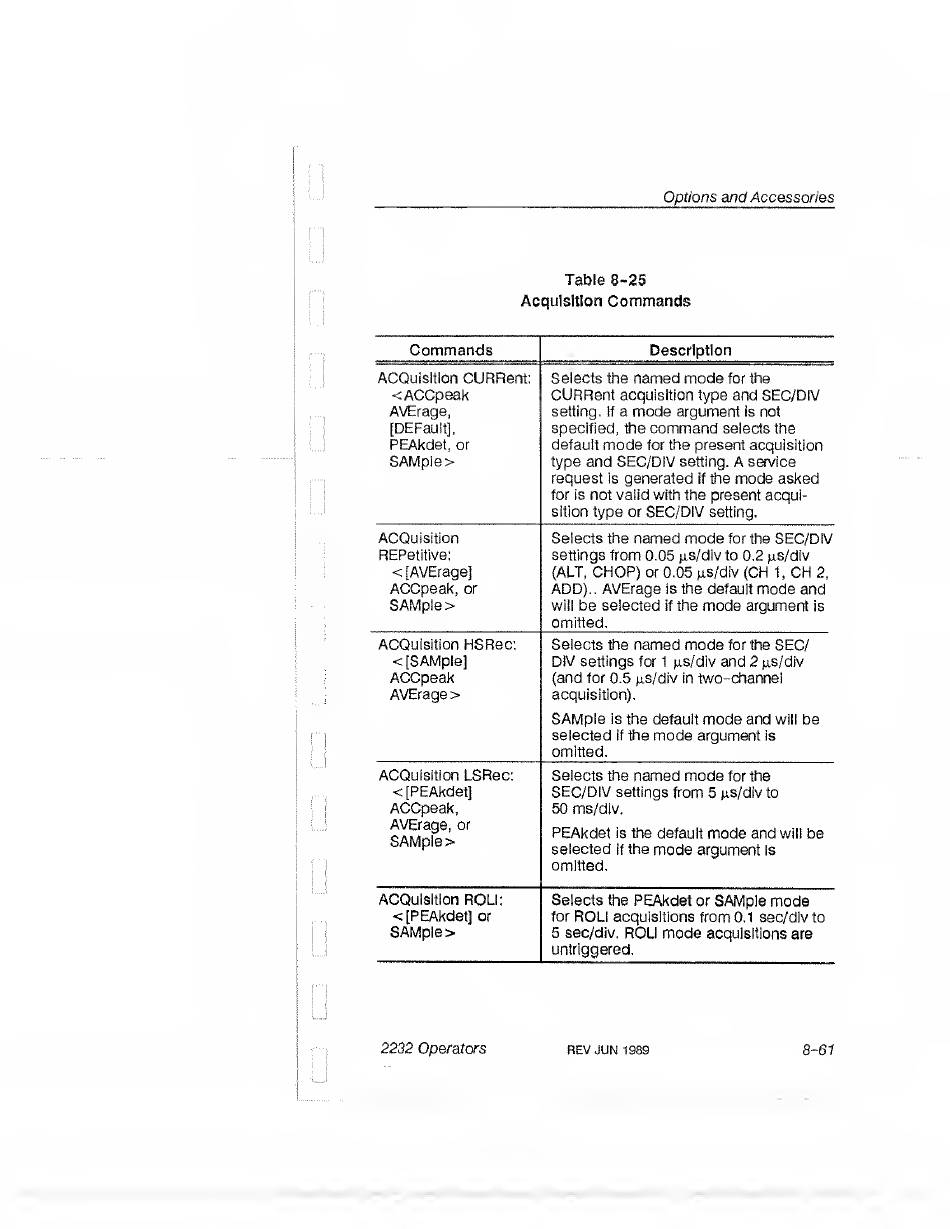

Table 8-25
Acquisition Commands
Commands Description
ACQuisition CURRent:
<ACCpeak
AVErage,
[DEFault],
PEAkdet, or
SAMple>
Selects the named mode for the
CURRent acquisition type and SEC/DIV
setting, if a mode argument is not
specified, the command selects the
default mode for the present acquisition
type and SEC/DiV setting. A service
request is generated if the mode asked
for is not vaiid with the present acqui¬
sition type or SEC/DIV setting.
ACQuisition
REPetitive;
< [AVErage]
ACCpeak, or
SAMple>
Selects the named mode for the SEC/DIV
settings from 0.05 p-S/div to 0.2 )xs/div
{ALT, CHOP) or 0.05 }xs/div (CH 1, CH 2.
ADD).. AVErage is the default mode and
will be selected if the mode argument is
omitted.
ACQuisition HSRec;
<[SAMple]
ACCpeak
AVErage >
Selects the named mode for the SEC/
DIV settings for 1 )is/div and 2 |iS/div
(and for 0.5 )j.s/div in two-channel
acquisition).
SAMple is the default mode and will be
selected if the mode argument is
omitted.
ACQuisition LSRec:
< [PEAkdet]
ACCpeak.
AVErage. or
SAMple>
Selects the named mode for the
SEC/DIV settings from 5 jis/div to
50 ms/div.
PEAkdet is the default mode and will be
selected if the mode argument is
omitted.
ACQuisition ROLl:
< [PEAkdet] or
SAMple>
Selects the PEAkdet or SAMple mode
for ROLl acquisitions from 0.1 sec/dlv to
5 sec/div. ROLl mode acquisitions are
untrIggered.
2232 Operators
rev jun i989
8-61
