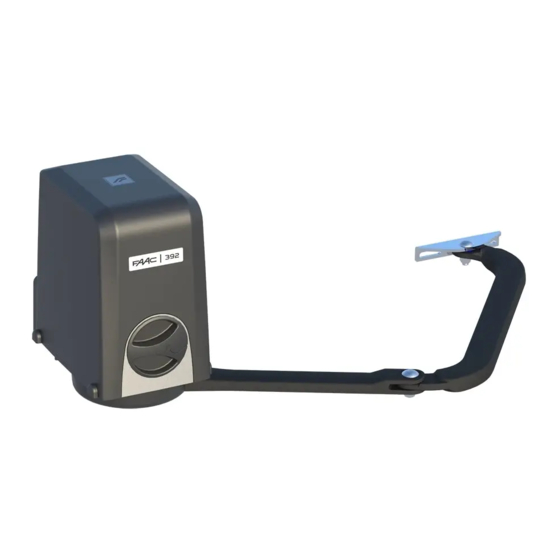

Summary of Contents for FAAC 392
- Page 1 392 - 392 C...
- Page 2 Translation of the original instructions © Copyright FAAC S.p.A. from 2023. All rights reserved. No part of this manual may be reproduced, archived, distributed to third parties nor copied in any other way, in any format and with any means, be it electronic, mechanical or by photocopying, without prior written authorisation by FAAC S.p.A.
-
Page 3: Table Of Contents
Online instructions ........2 4 Limitations of use 392 - 392 C ..... . . 21 Meaning of the symbols used . -
Page 4: Introduction To The Instruction Manual
1. INTRODUCTION TO THE INSTRUCTION MANUAL SAFETY WARNINGS FOR THE INSTALLER This manual provides the correct procedures and re- quirements for installing 392 - 392 C and maintaining Before starting the installation, read and comply with it in a safe condition. -
Page 5: 392 C
1 Actuator 2. Remove the transmission arms (6). 2 Transformer 3. Remove the box of accessories. 3 Electronic board E034 (only 392 C) 4. Use both hands to lift and remove the actuator 4 Release device body from the packaging. -
Page 6: Product Identification
(see § Emergency use). The limitations of use of the 392 - 392 C in wind are detailed in table Limits of use in relation to wind. 2.3 INTENDED USE... -
Page 7: Unauthorised Use
- It is prohibited to use the automation system before Requirements. performing commissioning. - It is forbidden to use 392 - 392 C in a constructional - It is prohibited to use the automation system in the configuration other than the one provided by the presence of faults which could compromise safety. -
Page 8: Emergency Use
2. Lift the protective cap of the lock. 3. Insert the key and turn it anticlockwise until it stops. 4. Turn the release knob clockwise until it stops. 5. Move the leaf manually. 3 392 - 392 C 532879 - Rev.A... -
Page 9: Technical Specifications
2.8 TECHNICAL SPECIFICATIONS TECHNICAL DATA The automation 392 - 392 C consists of an irreversible 392 C electromechanical operator. Two versions are available: 220 - 240 V~ Power supply voltage - 392 C: automation with built-in electronic board @50/60 Hz - 392: automation without an electronic board "... -
Page 10: Safety Functions
(EC, F1, SP, IP, rB, SF, r1, r2) ■ Additional protection functions Inputs Programming Functions Protection type according to EN 12453 Additional devices to reduce the Bus 2EASY BUS 2easy photocells likelihood of contact 392 - 392 C 532879 - Rev.A... -
Page 11: Example System
The example is an illustration only and is just one of the possible applications. The diagram refers to a two-motor installation with all the safety and signalling devices connected. In two-motor applications, use a H05RN-F cable to connect the primary operator 392 C and the secondary operator 392. Mains power supply 3G 1.5 mm2 (max 2.5 mm2) -
Page 12: Installation Dimensions
- select the required opening range - select the distance "B" so that it intersects the horizontal line (distance "A") in the required ope- ning range 6 392 - 392 C 532879 - Rev.A... -
Page 13: Mechanical Installation
7 and use a spirit level to check that it is horizontal. Do not weld the bracket directly to the pillar. The rear bracket must be secured to a surface that is as smooth as possible. 7 392 - 392 C 532879 - Rev.A... -
Page 14: Installing The Actuator
3. Assemble the other components of the arm. In order for it to work correctly, the two fixing screws D must be tightened and then loosened by about 1/2 turn to allow the arms to rotate smoothly. 8 392 - 392 C 532879 - Rev.A... - Page 15 9. Restore the operation of the actuator (see the MANUAL OPERATION section). 10. In the case of 2-leaf automation, follow the same procedure to install the second actuator. 2 0 m 9 392 - 392 C 532879 - Rev.A...
-
Page 16: Operator Wiring
"comb” connector so that they are locked in place. 5. Wire up all the connected accessories and safety devices according to their instructions. Description N Neutral Earth connector F Phase 10 392 - 392 C 532879 - Rev.A... -
Page 17: Positioning The Mechanical Stops
2. Bring the mechanical stop B as close as possible to the straight arm and tighten the two fixing screws. 3. Make sure that the toothed sector is engaged correctly. Mechanical opening stop 11 392 - 392 C 532879 - Rev.A... -
Page 18: Putting Into Service
Check that the maximum force required to move the leaf the “Manual operating mode” label to the automa- manually is less than 225 N in residential areas and 260 tion owner/operator E. N in industrial or commercial areas. 12 392 - 392 C 532879 - Rev.A... -
Page 19: Maintenance
5. MAINTENANCE 5.1 SCHEDULED MAINTENANCE It is mandatory to carry out the operations indicated in table Maintenance of the 392 - 392 C, in order to keep the operator working reliably and safely. The installer/machine manufacturer is responsible for... -
Page 20: Scheduled Maintenance
Scheduled maintenance 2 Maintenance 392 - 392 C Frequency in months Check that the cover/casing and all the movable guards are integral and that they are fastened cor- rectly. Tighten screws and bolts where necessary. Check that the body of the operator is undamaged. -
Page 21: Operational Problems
5.3 OPERATIONAL PROBLEMS Troubleshooting 3 CONDITION FINDING SOLUTIONS Check that the actuator is not released Check that there is power No movement Check the motor connection Check the operation of the electronic equipment 392 - 392 C 532879 - Rev.A... -
Page 22: Instructions For Use
During manual operation, gently guide the leaf the opening cycle. whole way. Do not push it and let it slide freely. Do not leave the actuator in the released mode: restore automatic operation after moving it manually. 14 392 - 392 C 532879 - Rev.A... -
Page 23: Limitations Of Use 392 - 392 C
Limitations of use in relation to wind 1 The tables indicate the maximum permitted wind force Beaufort number and description Wind speed (km/h) (Beaufort scale) for the 392 - 392 C with maximum (Beaufort scale) force regulation in relation to the: Calm ≤ 1... - Page 24 EN DÉCHÈTERIE Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 Points de collecte sur www.quefairedemesdechets.fr www.faac.it - www.faactechnologies.com Privilégiez la répara�on ou le don de votre appareil ! 392 - 392 C 532879 - Rev.A...
