Thank you for purchasing this quality product. Be sure to check all
packing materials carefully for small parts, which may have come loose
list and/or hardware list shown below. It is recommended to have two
people during assembling and to remove the backs and base of the furniture
out from the box.
Please follow the drawings below to assemble the item
NO.
A
B
C
D
E
Assembly Instruction
Item No.:L3183-30

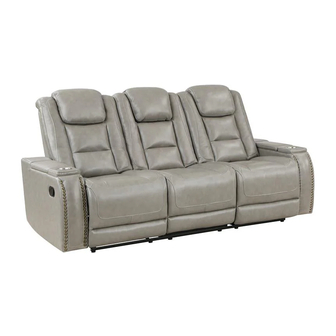

DESCRIPTION:BRECKENRIDGE SOFA W/DUAL RECLINER
PARTS LIST
SKETCH
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Created date:7/17/2023
QTY
DESCRIPTION
1
1
1
1
THE LAMP PLUG
1
Advertisement
Related Manuals for New Classic Furniture BRECKENRIDGE L3183-30
Summary of Contents for New Classic Furniture BRECKENRIDGE L3183-30
- Page 1 Assembly Instruction Item No.:L3183-30 DESCRIPTION:BRECKENRIDGE SOFA W/DUAL RECLINER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose list and/or hardware list shown below. It is recommended to have two people during assembling and to remove the backs and base of the furniture out from the box.
- Page 2 Step 1 Install the LSF backrest (A), Middle backrest (B), and RSF backrest (C) by align and insert the metal bracket to the metal brackets of the seat (D). Please make sure the brackets are inserted all the way and secured into position. Step 2 Connect the lamp plug (E) with the wire on back of the seat (D).
