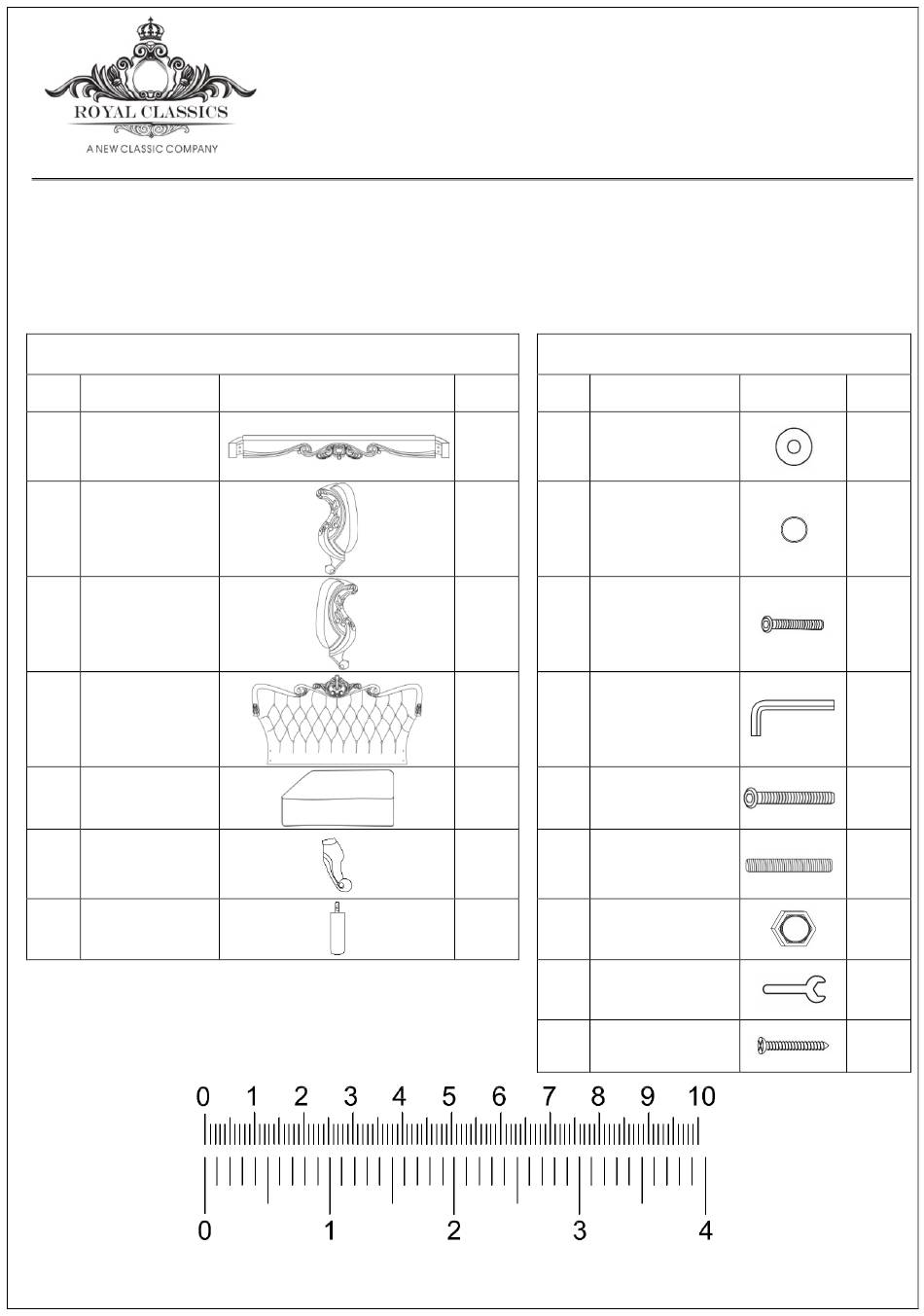

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small
parts, which may have come loose inside the carton during shipment. Identify and count all items and
compare with the PARTS LIST and/or HARDWARE LIST shown below.
CAUTION: Read the instructions carefully before assembly.
1. We recommend that you assemble this product with the assistance of another person to eliminate
damage to the product during assembly.
2. When you want to reposition the product, please always "LIFT & MOVE".
PARTS LIST
NO.
DESCRIPTION
A
SEAT FRAME
LEFT SIDE
B
FACING
(LSF) ARM
RIGHT SIDE
C
FACING
(RSF) ARM
D
BACKREST
SEAT
E
CUSHION
F
LEG
SUPPORT
G
LEG
Created date: 10/10/2023
Revised date: 12/16/2023
ASSEMBLY INSTRUCTIONS
CONSTANTINE COLLECTION

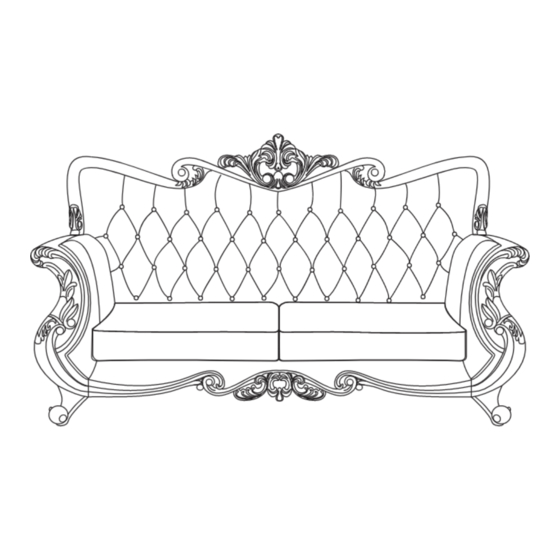

U532T-30 CONSTANTINE SOFA
Q'TY
SKETCH
(PCS)
HARDWARE LIST
NO.
DESCRIPTION
FLAT
1
1
WASHER
Ø5/16 x 3/4''
WASHER
1
2
Ø5/16 x 1/2''
BOLT
1
3
Ø5/16 x 2''
ALLEN KEY
1
4
Ø5/16 x 3¼''
BOLT
2
5
Ø5/16 x 3¼''
THREAD
BOLT
2
6
Ø5/16 x 3¼''
HEX NUT
2
7
Ø5/16 x 1/2''
WRENCH
8
1/2'' x 3½''
SCREWS
9
D4 x 2¾''
Q'TY
SKETCH
(PCS)
16
16
4
1
10
2
2
1
4
PAGE 1/6
Advertisement
Table of Contents
Related Manuals for New Classic Furniture ROYAL CLASSICS CONSTANTINE U532T-30
Summary of Contents for New Classic Furniture ROYAL CLASSICS CONSTANTINE U532T-30
- Page 1 ASSEMBLY INSTRUCTIONS CONSTANTINE COLLECTION U532T-30 CONSTANTINE SOFA Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 ASSEMBLY INSTRUCTIONS CONSTANTINE COLLECTION U532T-30 CONSTANTINE SOFA STEP 1: Place the seat frame (A) upside down. Assemble the legs (F) to both left and right back side of the seat frame (A) by using the Allen Key (4) with hardware 1, 2, and 3. STEP 2: Lay the seat frame (A) on its backside to reach the holes to secure the bolts for the arms.
- Page 3 ASSEMBLY INSTRUCTIONS CONSTANTINE COLLECTION U532T-30 CONSTANTINE SOFA STEP 3: Assemble and secure the front legs of the LSF arm (B) and RSF arm (C) to the seat frame (A) by using a screwdriver with hardware 9. STEP 4: Place the backrest (D) on its backside. Install the thread bolts (6) into the holes on the bottom of the backrest (D) by using your hands to rotate the bolts about 25 mm into the backrest (D).
- Page 4 ASSEMBLY INSTRUCTIONS CONSTANTINE COLLECTION U532T-30 CONSTANTINE SOFA STEP 5: Place the frame up right and install the backrest (D) to the LSF arm (B) and RSF arm (C) by sliding the brackets all the way until it is secured. STEP 6: Open the Velcro cover on the RSF arm (B) and LSF arm (C) to reach the holes to secure the bolts for the backrest.
- Page 5 ASSEMBLY INSTRUCTIONS CONSTANTINE COLLECTION U532T-30 CONSTANTINE SOFA STEP 7: Place the chair on its back on a clean and soft surface to reach the thread bolts (6). Secure the backrest (D) to the seat frame (A) by using the Wrench (8) with hardware 1,2, and 7. STEP 8: Screw the support legs (G) to the bottom of seat frame (A).
- Page 6 ASSEMBLY INSTRUCTIONS CONSTANTINE COLLECTION U532T-30 CONSTANTINE SOFA STEP 9: Place the sofa up right and install the seat cushion (E) to the seat frame (A). FINISH Created date: 10/10/2023 PAGE 6/6 Revised date: 12/16/2023...
