Thank you for purchasing this quality product. Be sure to check all
packing materials carefully for small parts, which may have come loose
during shipment. Identify and count all items and compare with the parts
list and/or hardware list shown below. It is recommended to have two
people during assembling and to remove the backs and base of the furniture
out from the box.
Please follow the drawings below to assemble the item
NO.
A
B
C
D
E
F
Assembly Instruction
Item No.:L3183-25P2

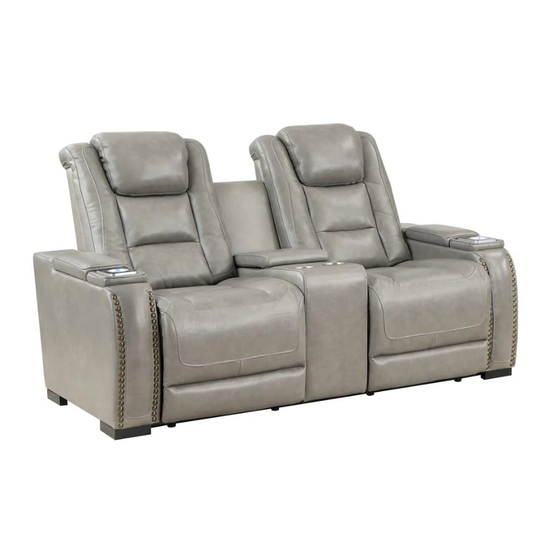

DESCRIPTION:BRECKENRIDGE CONSOLE LOVESEAT W/
PWR FR & HR
PARTS LIST
SKETCH
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Created date:7/17/2023
DESCRIPTION
QTY
1
1
1
1
2
1
POWER SUPPLY
Advertisement
Related Manuals for New Classic Furniture BRECKENRIDGE L3183-25P2
Summary of Contents for New Classic Furniture BRECKENRIDGE L3183-25P2
- Page 1 Assembly Instruction Item No.:L3183-25P2 DESCRIPTION:BRECKENRIDGE CONSOLE LOVESEAT W/ PWR FR & HR Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list and/or hardware list shown below.
- Page 2 STEP 1 Open the zipper at the bottom of the seat (D) to find the console backrest (B). Step 2 Open the console storage to find the bolt (E) to assemble the console backrest (B). Step 3 Unzip the back of the console base and insert the bolts (E) upward through the pre-drilled holes and align with the holes on the bottom of the console back (B).
- Page 3 Step 5 Connect the power supply (F) to the wire on seat (D). Step 6 Complete. All images shown are for illustration purpose only. Actual product may vary due to product enhancement. Created date:7/17/2023...
