Thank you for purchasing this quality product. Be sure to check all
packing materials carefully for small parts, which may have come loose
list and/or hardware list shown below. It is recommended to have two
people during assembling and to remove the backs and base of the furniture
out from the box.
Please follow the drawings below to assemble the item
NO.
A
B
Assembly Instruction
Item No.:L3183-13

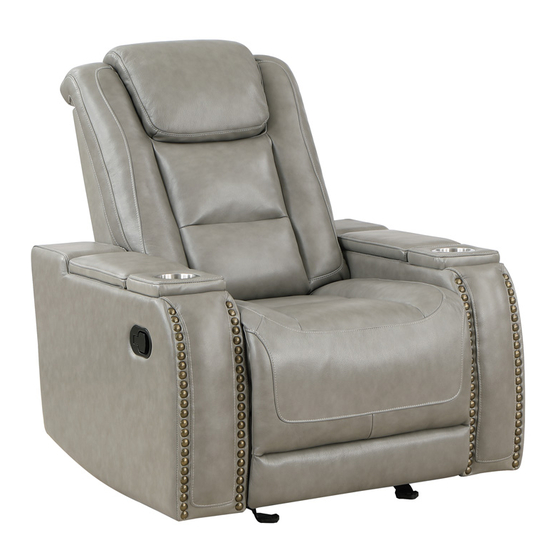

DESCRIPTION:BRECKENRIDGE GLIDER RECLINER
PARTS LIST
SKETCH
QTY
1
1
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Created date:7/17/2023
DESCRIPTION
SEAT
Advertisement
Related Manuals for New Classic Furniture L3183-13
Summary of Contents for New Classic Furniture L3183-13
- Page 1 Assembly Instruction Item No.:L3183-13 DESCRIPTION:BRECKENRIDGE GLIDER RECLINER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose list and/or hardware list shown below. It is recommended to have two people during assembling and to remove the backs and base of the furniture out from the box.
- Page 2 Step 1 Cut the white zip ties with scissors. Step 2 Install the backrest (A) by align and insert the metal bracket on the backrest (A) to the metal bracket of the seat (B). Please make sure the brackets are inserted all the way and secured into position. Step 3 Complete.
